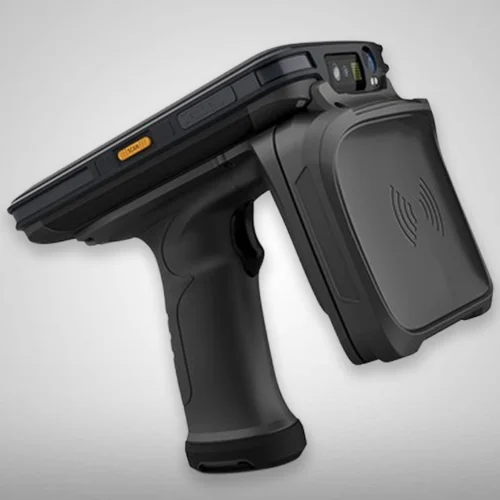

C72 UHF handheld RFID reader is a portable, long read range RFID reader operating over 865-867 MHz frequency, comes with 8000mAh Battery, Bluetooth, and android 11 software UI

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type: Linear polarization(1.8 dBi); circular polarization (4 dBi)
Max Read Distance: up to 30 mtrs
Bluetooth: Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11: Bluetooth 5.0
Enquire Now
Be the first to review this item
 Write a review

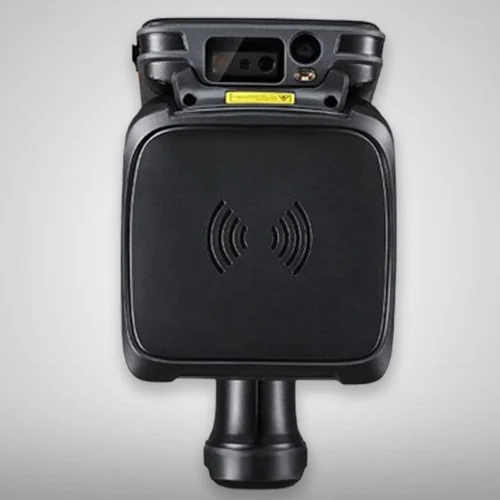

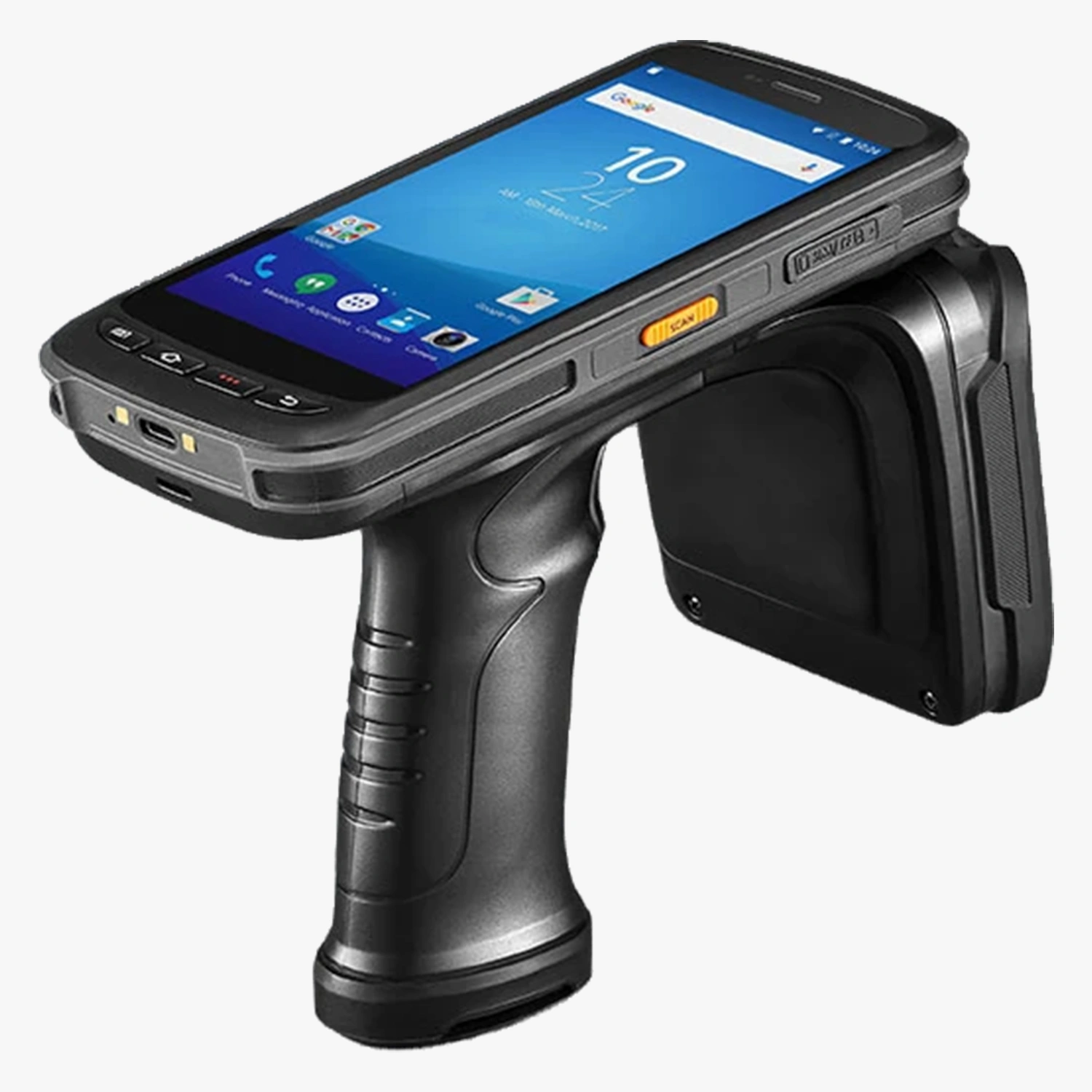

The C72 UHF RFID handheld reader by Chainway is a best-in-class portable RAIN RFID reader that features an Impinj E710/R2000 microchip and Cortex-A53 2.3 GHz octa-core processor, offering high performance and a 30m read range, indoors and outdoors.

The RFID reader is compliant with ISO18000-6C, EPCglobal Gen2v2 communications standards and operates on UHF 865-867 MHz/ 865-868 MHz / 920-925 MHz / 902-928 MHz frequencies. It also offers an 8000mAh Battery, Android 11-based software UI, and Bluetooth, with additional NFC reader capabilities.

 C72 RFID Reader also features barcode scanning capabilities, offering more flexibility and scalability in the supply chain, asset tracking, asset identification, inventory management, and warehouse management applications. The Chainway C72 RFID reader offers high accuracy and efficient RFID reading of tags with a high read-rate of 1200 tags per second, making it perfectly suitable for industrial and commercial applications.

We offer Chainway C72 UHF RFID Handheld reader at the best price, with pan-India express delivery and easy returns.



Applications of Chainway C72 UHF RFID Handheld Reader

1. Asset tracking and management

2. Inventory management and control

3. Retail and supply chain management

4. Warehouse management

5. Library Management

6. Healthcare Inventory Management



Why choose this C72 UHF RFID Reader?

The C72 UHF Handheld RFID reader is a popular choice because it offers advanced features, such as high read accuracy, fast reading speed, and long battery life. It also has a user-friendly interface and rugged design, making it suitable for various industries and harsh environments.

Specifications
Operating Frequency 865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type Linear polarization(1.8 dBi); circular polarization (4 dBi)
Max Read Distance up to 30 mtrs
Bluetooth Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11: Bluetooth 5.0
Data Interface USB, OTG
Dimensions 164.2mm x 80.0mm x 24.3 mm
Battery 8000mAh Powerful Battery
Camera 13MP Autofocus Camera
RAM+ROM 3+32GB/4+64GB (Optional)
IP Rating IP65
Display 5.2'' IPS LTPS 1920 x 1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification Sound, LED indicator
Sensors Light sensor, proximity sensor, gravity sensor
CPU Cortex-A53 2.3 GHz Octa-core
Operating Temperature -20 °C to 50 °C
Storage Temperature -40 °C to 70 °C
Power 1W (30 dBm, +5 dBm to +30 dBm adjustable)
Fastest Read Rate 1200+ tags/sec (circular polarization)
