Ultra High Frequency, 865-868 MHz, Lightweight and Portable, upto 200 tags/sec, 8000 mAh battery, IP65 Rating, 1D/2D Performance, High-performance,

Write a review
Features
Brand: Chainway
Operating Frequency: 865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type: Linear polarization (1.8dBi) | Circular polarization (4dBi)
Read Range: >7m (linear polarization); >15m (circular polarization)
Dimensions: 250.8 x 152.0 x 15.0 mm
Enquire Now
Be the first to review this item
 Write a review

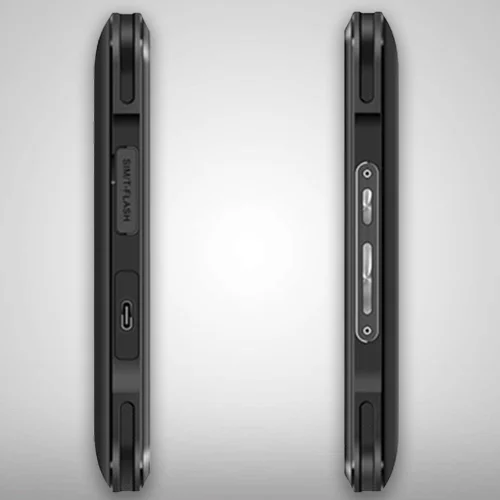

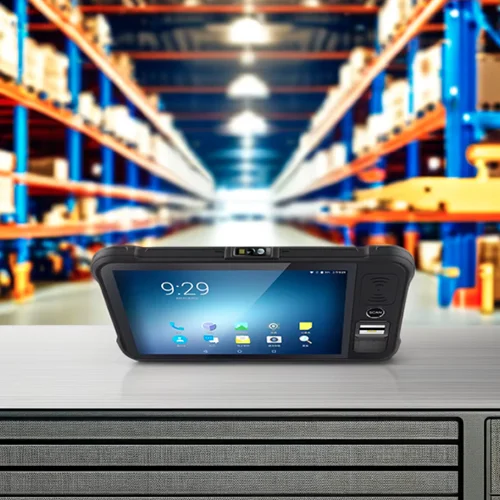

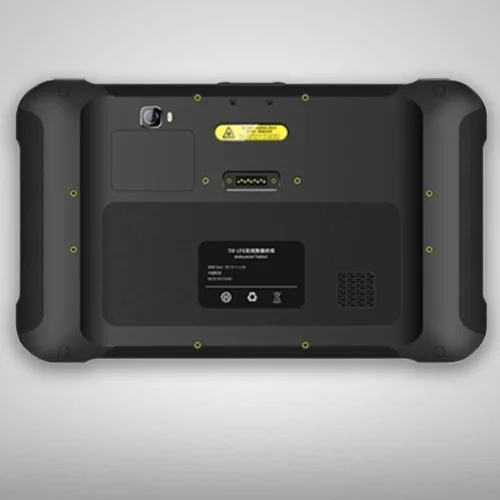

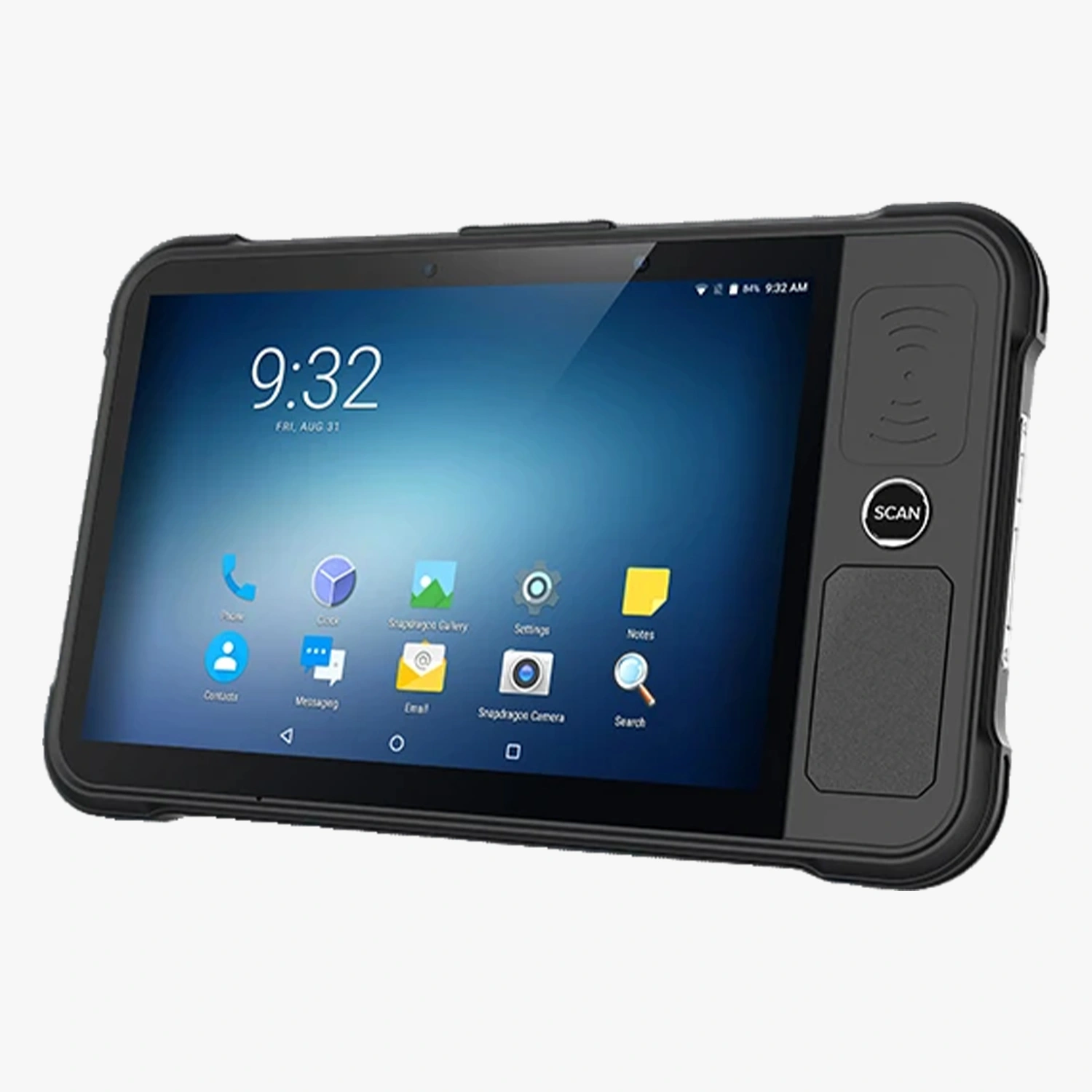

RFID Touch Screen UHF Tablet Reader is a rugged touchscreen device designed for the most demanding applications in the warehousing, manufacturing, and retail industries. This device is equipped with an 8-inch HD touchscreen, 800 MHz processor, Windows or Android operating system, and a 3D Dual RFID reader. It is IP55 dust and water-resistant and also features an impact and drop-rated casing to ensure maximum protection in extreme conditions. With advanced scanning capabilities, this device is capable of capturing UHF RFID tags, and barcodes, and also supports image capture. It is ideal for warehousing, inventory, and asset tracking, as well as store inventory and pricing updates.



Specifications
Operating Frequency865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
Antenna TypeLinear polarization (1.8dBi) | Circular polarization (4dBi)
Read Range>7m (linear polarization); >15m (circular polarization)
Dimensions250.8 x 152.0 x 15.0 mm
Touch PanelCorning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Display8” IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
InterfaceUSB 3.0 Type-C, OTG
Battery8000 mAh
ProcessorQualcomm 1.8 GHz Octa-core
Memory3 GB + 32 GB / 4 GB + 64 GB
IP RatingIP65
BluetoothBluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Reading Rate> 200 tags/sec
Power1W (30dBm, +5dBm to +33dBm adjustable)
Barcode1D & 2D
Front Camera8 MP
