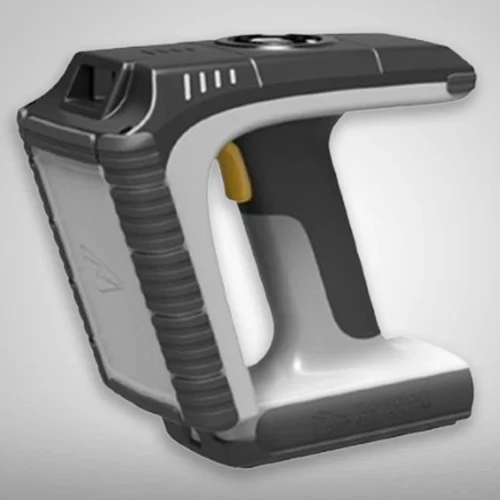

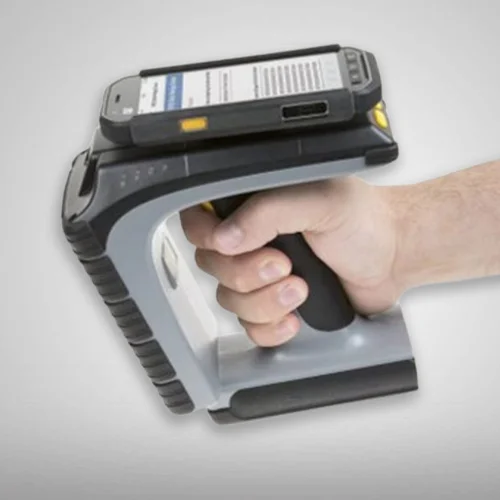

TSL 1166 Bluetooth Rugged UHF Handheld RFID Reader

Passive/UHF, Sled, ETSI (EU 865-868 MHz), High Performance, Enterprise Handheld Reader, Android/iOS/Windows SDK

SKU: TSL 1166
Get Latest Price
Features
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: US (902-928 MHz) or EU (865-868 MHz), region dependent
Antenna Type: Circular polarized
Max Read Distance: Up to 6 m (19.7 ft)
Scanner: Motorola SE4500, Intermec EX25, or Honeywell EA31 Android, iOS (pending), Windows CE, Windows Phone 8, Windows Mobile 5, 6.1, 6.5 or Windows 10, 8,7, Vista, and XP. (Host device must have Bluetooth®
Enquire Now

The TSL 1166 Bluetooth Rugged UHF Handheld RFID Reader is a high-performance handheld reader designed for reading UHF RFID tags. It features an ergonomic design, a powerful processor, and a long-range antenna to provide superior read performance. The reader has an IP67 rating, making it rugged and durable enough to withstand harsh environments. It also has a wide range of connectivity options, including Bluetooth, USB, and Ethernet. It is compatible with multiple operating systems, including Windows, Android, and iOS.


Features

• UHF RFID reading and writing capability

• Rugged design for use in harsh environments

• Bluetooth communication for easy connection to other devices

• Built-in keypad for access control

• IP67-rated waterproof and dustproof performance

• Powered by a rechargeable Li-ion battery for up to 10 hours of continuous use

• Reads tags up to 6 meters away

• Compatible with all EPC Class 1 Gen 2 tags

• Supports multiple RFID protocols, including ISO 18000-6C/6B and EPCglobal UHF

• Includes software development kit (SDK) for custom programming


Application

• Warehouse inventory management

• Asset tracking

• Retail inventory management

• Pharmaceutical supply chain management

• Document tracking

• Healthcare asset tracking

• Vehicle tracking

• Supply chain optimization


Why buy this product?

This TSL 1166 is ideal for businesses that need a reliable and secure handheld RFID reader. The TSL 1166 Bluetooth Rugged UHF Handheld RFID Reader is designed to be resilient and reliable in challenging environments. It has a long-range UHF RFID reader, a durable rubberized casing, and a large LCD display for easy data reading. It is also equipped with Bluetooth connectivity for easy data transmission. It is a great choice for businesses looking for an effective and powerful RFID reader.

Air Interface Protocol EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency US (902-928 MHz) or EU (865-868 MHz), region dependent
Antenna Type Circular polarized
Max Read Distance Up to 6 m (19.7 ft)
Scanner Motorola SE4500, Intermec EX25, or Honeywell EA31 Android, iOS (pending), Windows CE, Windows Phone 8, Windows Mobile 5, 6.1, 6.5 or Windows 10, 8,7, Vista, and XP. (Host device must have Bluetooth®
Data Interface USB, Bluetooth
Memory/Expansion Memory Embedded 2GB internal NAND storage
Power Source Removable, rechargeable lithium ion battery pack (11.25V, 2950mAh, 33.2Wh)
Camera N/A
Dimensions 177 x 94 x 170 mm (6.97 x 3.7 x 6.7 in)
Weight 0.80 kg (1.76 lbs) - including battery
IP Rating IP 67
Operating Temperature 20° to +55°C (-4° to +131°F)
Host API ASCII 2
