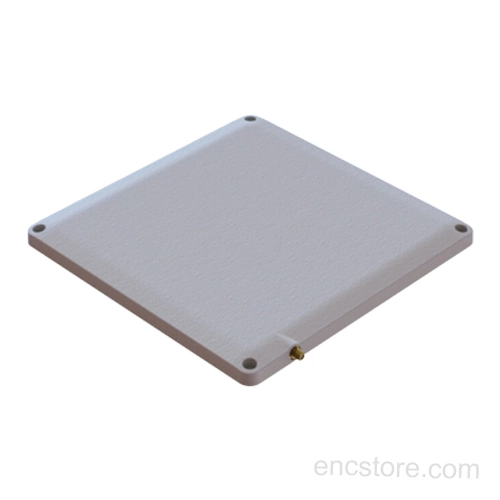

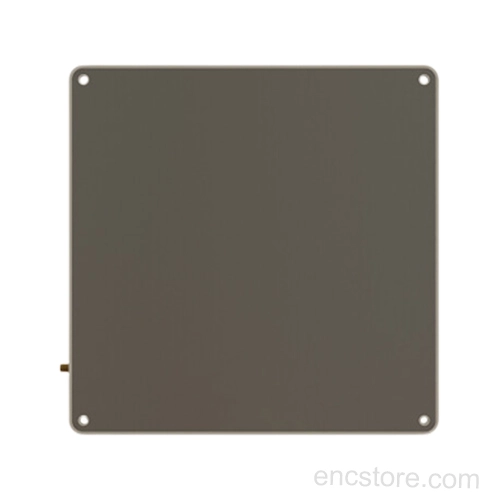

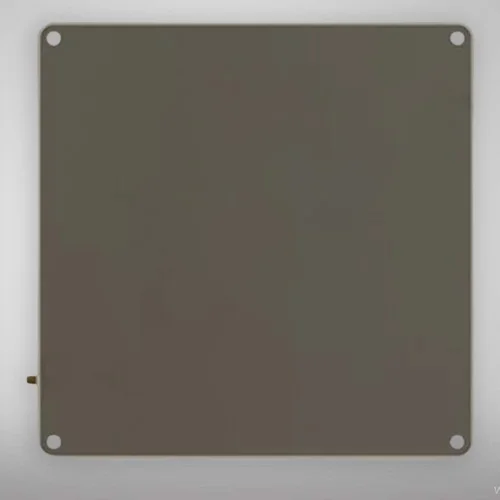

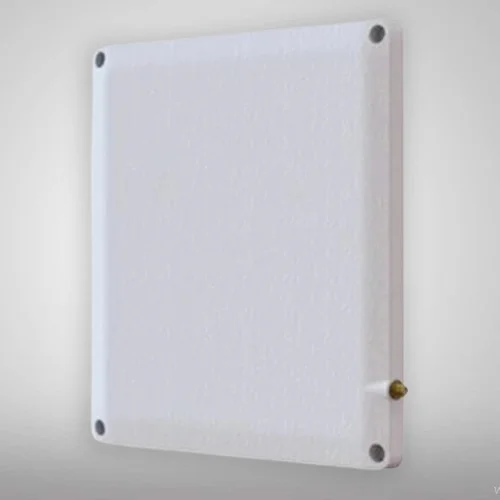

Times-7 Slimline A5010 Circular Polarized UHF RFID Antenna

Circular Polarized RFID Antenna, 865-868MHz frequency UHF RFID Antenna, 8.5dBi Gain, Flush or VESA Mounting, 3W Maximum Input Power, IP67 Rating, High Performance & Rugged Design, SMA female Connector

Write a review

Features

Brand: Times 7
Operating Frequency: 865-867 Mhz, Ultra High Frequency (UHF)
Polarization: Right hand circular polarized (RHCP)
Far-Field Gain: 8.5 dBiC
Radome Material: Flame retardant and UV resistant ABS
IP Rating: IP67
Request Pricing
Buy On Call
Order via Chat
Planning a bulk purchase?Speak with our team at +91-8130501117

Why Buy From EnCstore?

  • Genuine Products. Trusted Support.
  • GST Invoice & Bulk Order Discounts.
  • Expert Support Before & After Sale.
  • PAN India Delivery.

Need Help? Ask Experts

Kritika Malhotra

Kritika Malhotra

Consultant
+91-8130501143 Book a Free Consultation
Be the first to review this item
 Write a review

The Times-7 Slimline A5010 Circular Polarized Antenna is designed to provide a wide range of solutions in RFID and IoT settings. This UHF RFID antenna has a circular polarization, A5010, to provide excellent read rates and good coverage support, even in challenging outdoor conditions.

Time 7 Slimline A5010 circular polarized UHF RFID is a highly sought after antenna in various industries due to its high performance and compact and slim design. It is an ultra-low profile antenna and comes with an IP rating of 67 providing water and dust-resistant solution in various industrial RFID applications.

EnCStore offers Time-7 Slimline A5010 Circular Polarized Antennas which work on a wide range of operating frequencies, from 865-868 MHz to 902-928 MHz. It has a gain of 8.5 dBi and a maximum read range of 9M, suitable for retail, warehousing, medical & big pharma related inventory and warehouse management.



Application of Circular Polarised UHF RFID Antenna

• Asset management

• Inventory management

• Automatic Time Attendance for Schools

• Toll plaza automation

• Hospital access control

Specifications

Operating Frequency865-867 Mhz, Ultra High Frequency (UHF)
PolarizationRight hand circular polarized (RHCP)
Far-Field Gain8.5 dBiC
Radome MaterialFlame retardant and UV resistant ABS
IP RatingIP67

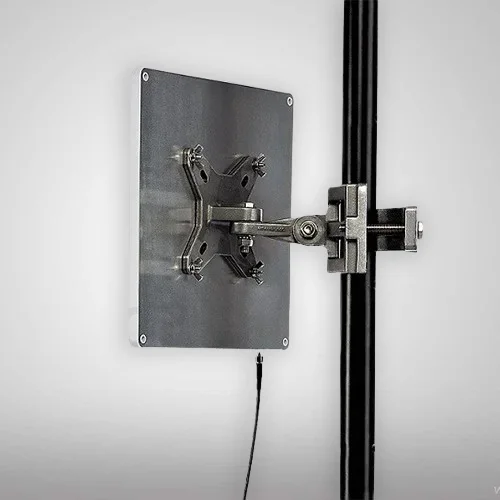

MountingFlush or stud (VESA) mounted
Connector TypeSMA female connector
Far-Field 3dB beamwidth-68° in both planes
VSWR1.3 typical
Front-To-Back Ratio-20dB
Axial Ratio1dB typical
Nominal Impedance50 Ohm
Antenna Detection10KO resistance
Maximum Input Power3W

No file found !

FAQs

What is the read range of the Times-7 A5010 RFID antenna?

The read range of the A5010 depends on the RFID reader's output power, reader sensitivity, RFID tag, tag orientation, mounting position, and surrounding environment. Its 8.5 dBiC gain and 68° beamwidth provide wide-area coverage for fixed UHF RFID tracking applications.

What does 8.5 dBiC gain mean for the A5010 RFID antenna?

The A5010's 8.5 dBiC gain indicates its directional RF performance and ability to concentrate transmitted and received RFID energy within its coverage area. The antenna is designed to provide wide-area read performance rather than simply maximizing read distance. 8.5 dBic is a medium-high gain antenna that is quite efficient with a right reader like Zebra FX9600.

Can the Times-7 A5010 be used for both indoor and outdoor RFID applications?

Absolutely. The A5010 RFID antenna has an IP67 environmental rating, making it suitable for demanding indoor environments and permanent outdoor installations. Its rugged construction and integrated metal backplate also provide additional durability for industrial deployments.

Is the Times-7 A5010 suitable for RFID portals and conveyor tracking?

The Times -7 A5010 RFID antenna is designed as a far-field, high-gain UHF RFID antenna and is very much suitable for applications including RFID portals, dock doors, delivery and logistics portals, conveyor belts, item-level conveyor tracking, inventory tracking, asset tracking, and people tracking. Its 250 × 250 × 14 mm compact form factor also makes it suitable where a slim antenna is required.
