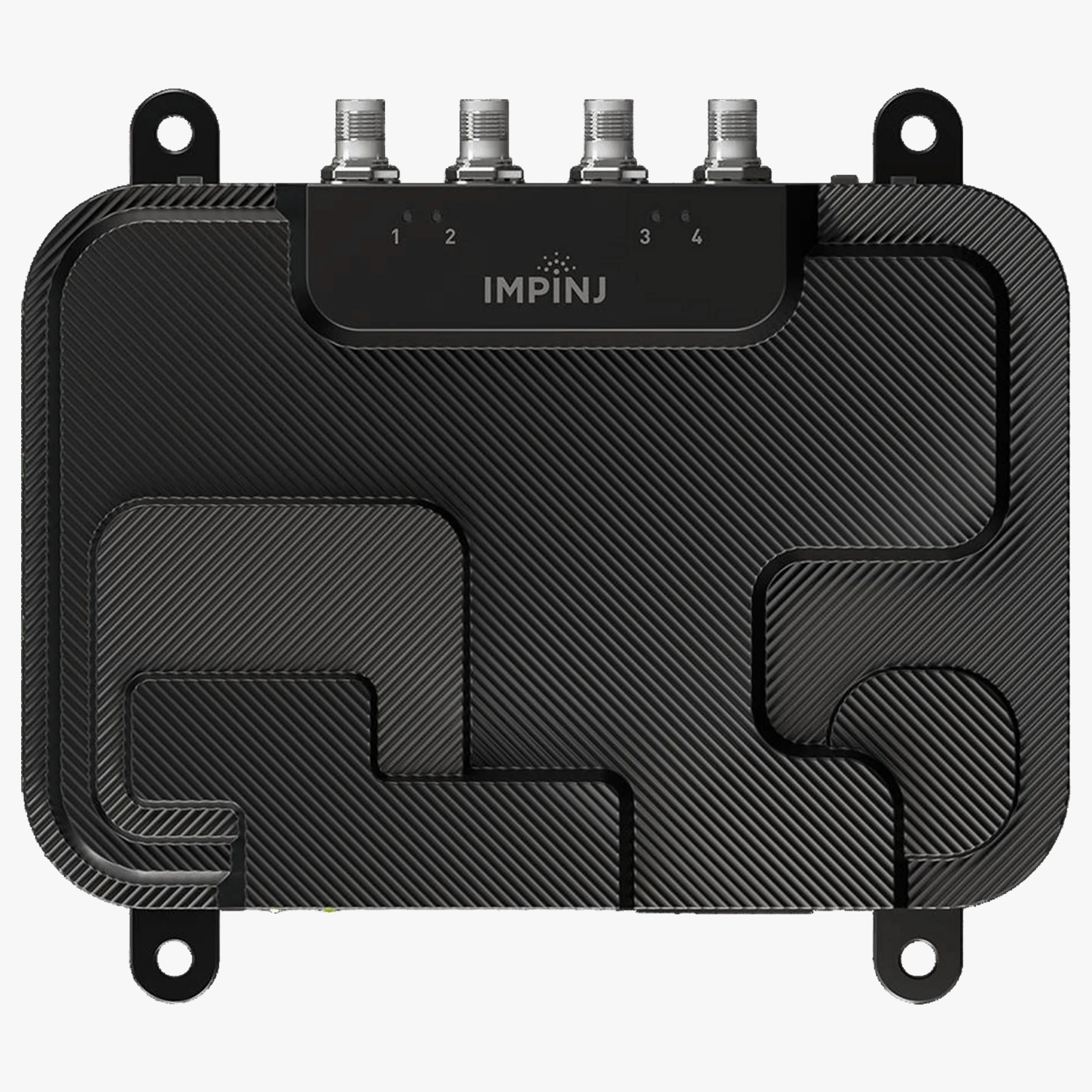

Impinj R700 RAIN RFID Reader - 4 Antenna Ports, IoT Enabled

The Impinj R700 RAIN RFID Reader is a fixed mounting, 4 Antenna Port IoT-enabled Reader, POE RFID Reader built in one, offering Ethernet, MQTT, GPIO, 1GB Flash, and -92 dBm receive sensitivity (max).

By Impinj
i
Write a review
Features
Operating Frequency: 865 - 928 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Transmit Power: PoE+: 33 dBm max, PoE: 30 dBm max
Max Receive Sensitivity: -92 dBm
Max Read Rate: Up to 1,100 reads per second
Enquire Now
Be the first to review this item
 Write a review

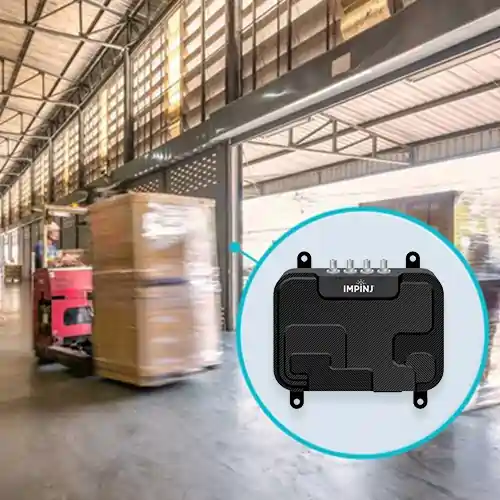

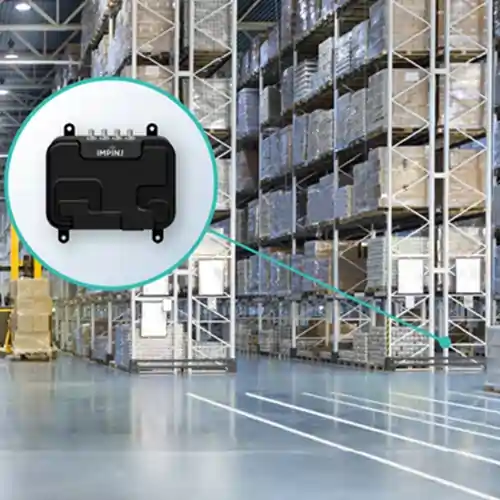

The R700 RAIN RFID Fixed Reader by Impinj Inc. is a high performance RFID reader designed to meet the increasing demands of next-generation IoT solutions and enterprise-grade RAIN RFID deployments. These readers are compliant with the GS1 UHF Gen2v2 standard, ISO 18000-63 and offer high read rate, up to 1000 tags per second as well as long read range, up to 30 feet.

The R700 fixed mount RFID readers are suitable for high-volume retail and item-level tracking applications, and are capable of capturing information from RAIN RFID tags with high accuracy in all sorts of enterprise RAIN RFID deployment.

These fixed mount RFID readers are designed in a user-friendly configuration and metal form factor for industrial use, easy to configure and manage. With the Impinj R700 RFID fixed reader, users can track and manage their inventory in real-time quickly, and accurately, at a cost-effective price with our RFID store.



Applications of Impinj R700 Fixed RFID readers:

• Manufacturing and Production

• Retail Asset and Inventory

• Logistics and Transportation

• Healthcare and Life sciences

• Asset Tracking

• Apparel and Footwear

• Automotive Industry

• Livestock and Agriculture, etc.

Specifications
Operating Frequency 865 - 928 MHz
Communication Protocol EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Transmit Power PoE+: 33 dBm max, PoE: 30 dBm max
Max Receive Sensitivity -92 dBm
Max Read Rate Up to 1,100 reads per second
GPIO 2 inputs, 3 outputs
Power Source PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation
Processor Dual-Core 1 GHz Cortex A7
Material Die-cast Aluminum
Dimension With mounting brackets 213.36mm(L) x 187.96mm(W) x 30.48mm(D), Without brackets: : 30.48mm(L) x 213.36mm(W) x 149.86mm(D)
Antenna Ports 4 monostatic ports (RP-TNC)
Memory 1 GB Flash, 1 GB RAM
Operating System Linux, 5.1 kernel
Mounting VESA 100 x 100 on bottom of the enclosure, Two removable brackets compatible with Impinj Speedway mounting system
Weight 2.12 lb, 0.96 kg
