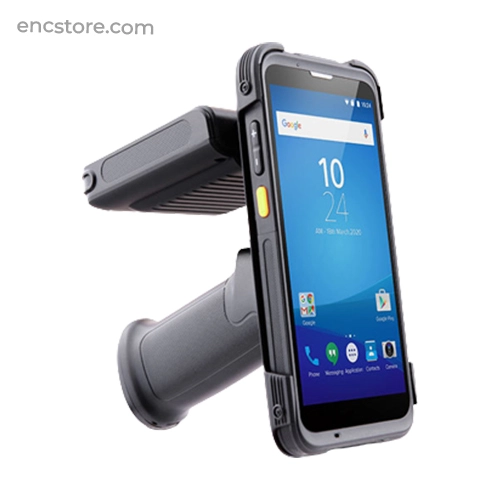

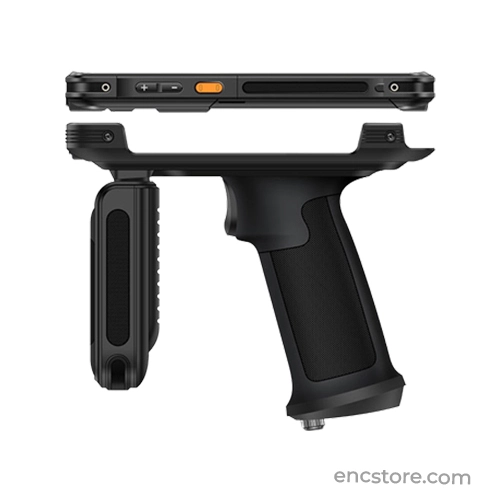

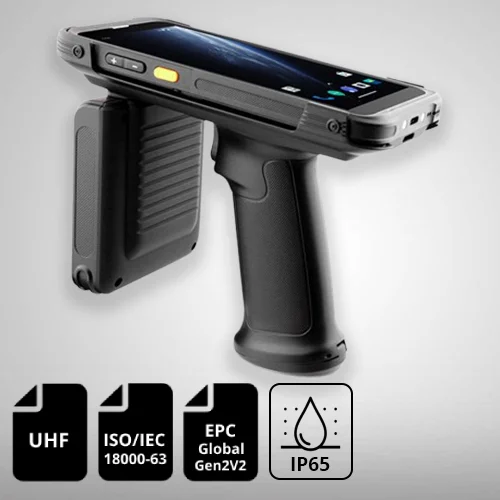

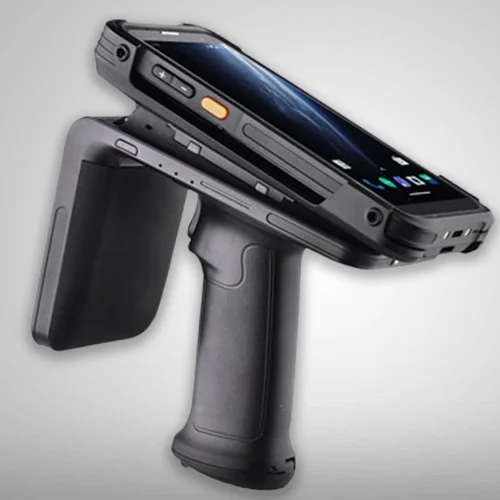

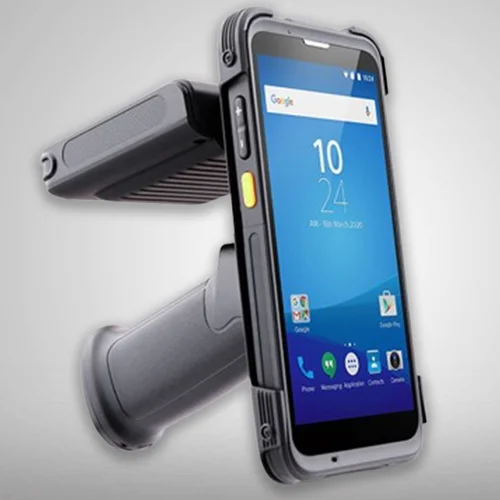

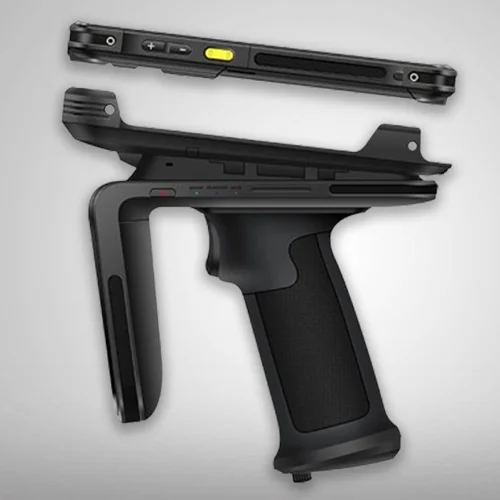

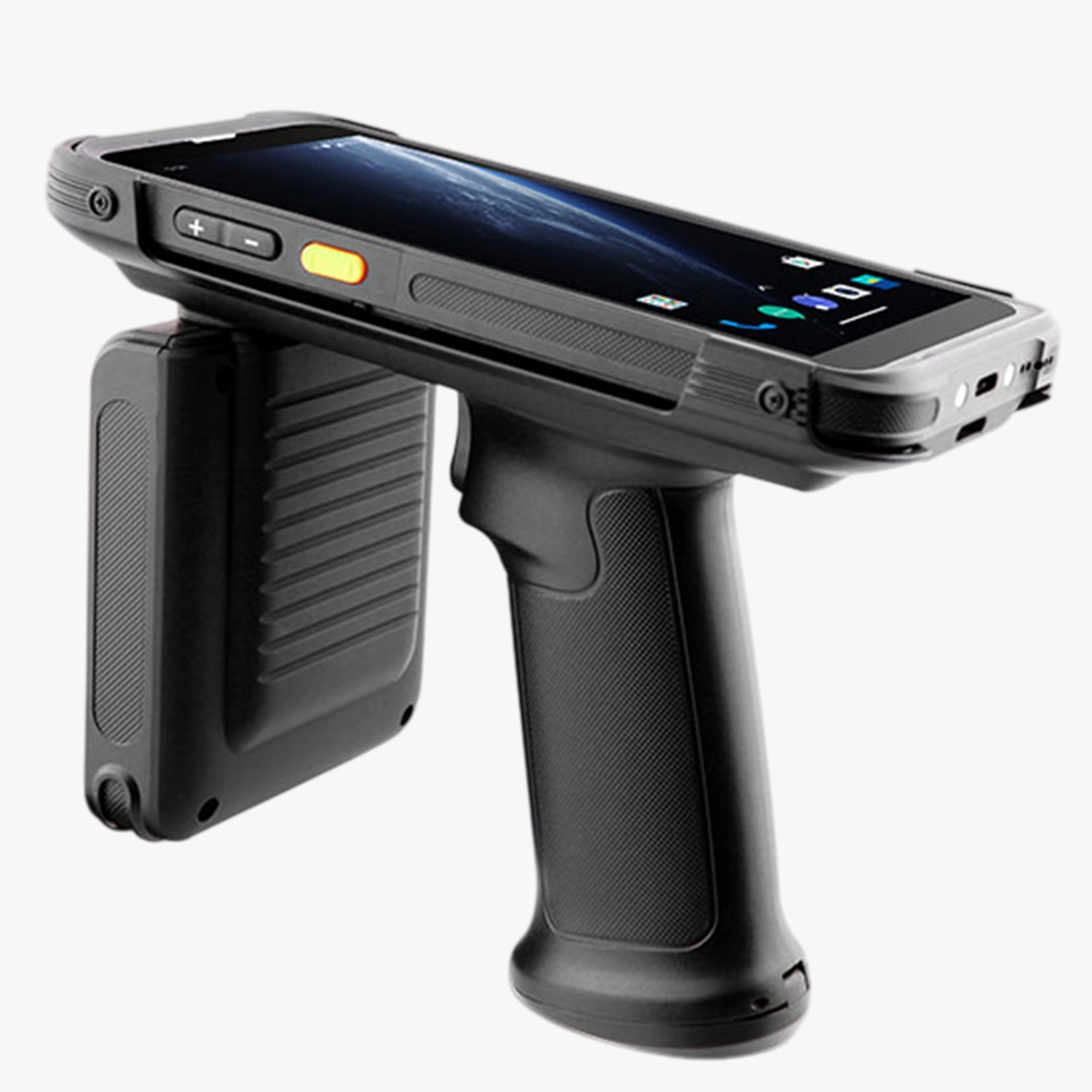

The C66 UHF Handheld RFID Reader (Android 11/9) is a lightweight, portable device designed for reading, writing, and managing radio frequency identification (RFID) tags. It is compatible with ISO 18000-6C (EPC Gen2) protocols and supports data rates up to 9.6 kbps. The reader features a 5-inch touchscreen display, Wi-Fi and Bluetooth connectivity, and a built-in microphone and speaker. It is powered by an Android 11/9 operating system and includes a USB Type-C port, as well as an SD card slot. The device also supports various RFID tags, including passive UHF tags and active RFID tags with a range of up to 20 meters. It features a 1D/2D barcode scanner, a high-performance UHF RFID reader, and an integrated wireless communication system to transmit data to a host computer or server. The device is designed to work with any UHF RFID tag, allowing for fast and accurate data capture and storage. It is also designed to be durable and reliable, with a long battery life.

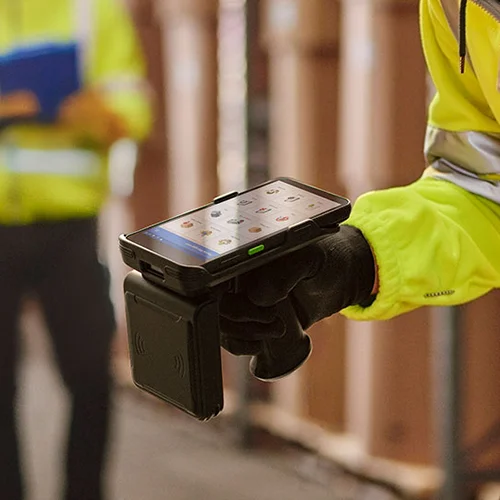

Application: Library Management, Retail Management, Document tracking, Healthcare asset tracking, Vehicle tracking, Logistics and Supply Chain Management. |
| Operating Frequency | 865–867 MHz Ultra High Frequency(UHF) |
| Air Interface Protocol | ISO 18000-6C EPC Clas 1 Gen 2 |
| Antenna Type | Circular polarized |
| Bluetooth | Android 9: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR Android 11: Bluetooth 5.1 |
| Data Interface | USB, Bluetooth |

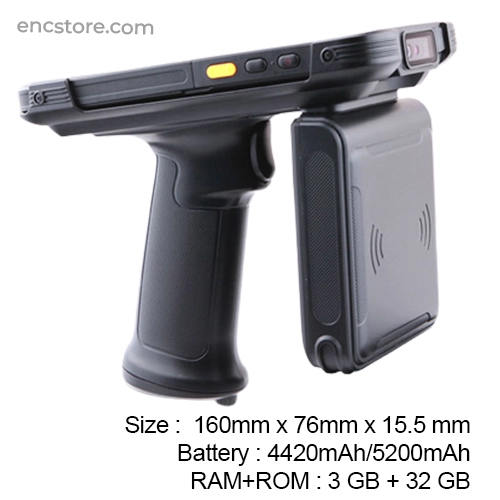

| Dimensions | 160mm x 76mm x 15.5 mm |
| Battery | 4420mAh/5200mAh Removable Battery |
| Camera | 13MP Autofocus Camera |
| RAM+ROM | 3 GB + 32 GB |
| IP Rating | IP65 |
| Operating Temperature | 20° to +50°C |
| Display | 5.5-inch high definition full display (18:9) , IPS IGZO 1440 x 720 |
| Touch Panel | Multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator, vibrator |
| Sensors | Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
| Max read range | Impinj E710 chip: 28m (Impinj MR6 tag, size 70 x 15mm), 28m (Impinj M750 tag, size 70 x 15mm), 32m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Fastest Read Rate | 1150+ tags/sec |
| Communication Mode | Pin Connector |
