DC 10V – 24V Input Voltage, <140mA Standby Current, UHF RFID reader, high-performance, wall-mountable, Supports RS232/RJ45/HDMI

Write a review
Features
Brand: Chainway
Material: Aluminium Alloy
Input Voltage: DC 10V – 24V
Dimensions: 247mm x 151mm x 35mm
GPIO: 4 x input optocouplers, 4 x output optocouplers, with isolation, 1 x wiegand
RAM+ROM: 2GB + 16GB
Enquire Now
Be the first to review this item
 Write a review

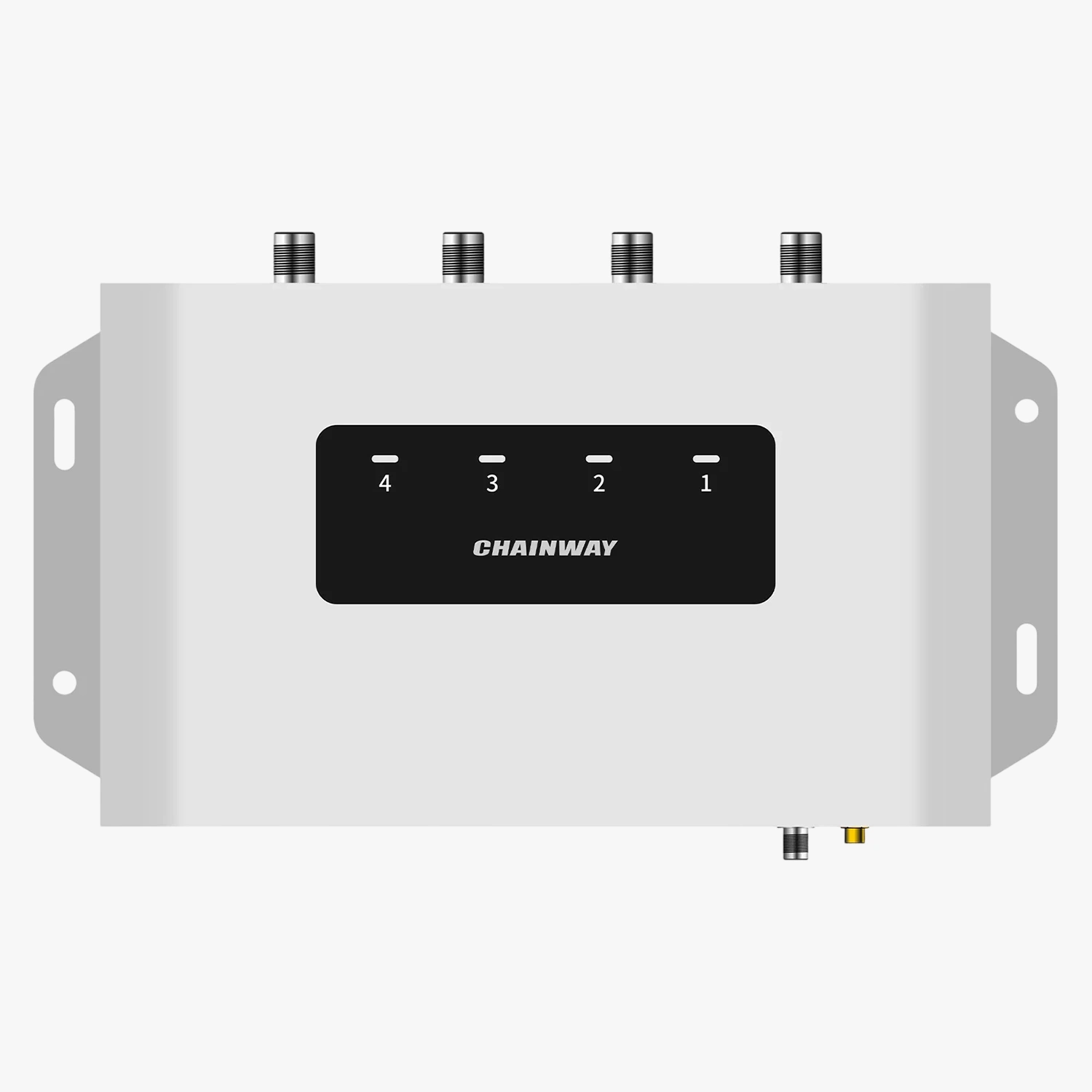

Chainway URA4C is a newly launched high-performance fixed Android RFID reader, Adopting the Android 11 operating system, a 2.0GHz quad-core processor, URA4C has powerful data handling capabilities. The reader has a stronger UHF performance. It integrates RS232, RJ45, HDMI, and other interfaces, and supports DC, POE, and POE+ power supplies. URA4C can support application requirements in complex environments such as storage, file management, library management, production line management, medical device cabinets, unmanned retail, etc.

Specifications
MaterialAluminium Alloy
Input VoltageDC 10V – 24V
Dimensions247mm x 151mm x 35mm
GPIO4 x input optocouplers, 4 x output optocouplers, with isolation, 1 x wiegand
RAM+ROM2GB + 16GB
Operating Temperature-25°C to 65 °C
Storage Temperature-40°C to 85°C
Operating Frequency865–867 MHz
Communication ProtocolISO 18000-6C EPC Clas 1 Gen 2
AntennaSupport multiple antennas, such as 6dBic, 9dBic, etc.
Receive Sensitivity< -84dBm
Fastest Read RateUp to 950 tags/s
Antenna Port4 x Channel 50O RF Connector RP-TNC Female
