Ultra High Frequency, 865–867 MHz, High performance permanent adhesive, Size: 95mm x 8mm, Waterproof and weatherproof, Reliable and Durable

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 13m
Chip Type: Impinj Monza 4E/ 4QT
EPC Memory: 496 bits/128 bits
Enquire Now
Be the first to review this item
 Write a review

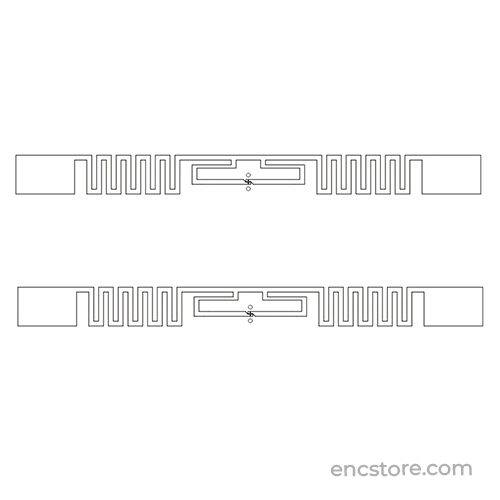

RFID UHF Dry Inlay Tags is a passive RFID tag designed for applicable on paper surfaces. It is a self-adhesive tag that can be applied to a variety of paper surfaces including magazines, books, product packaging, and more. The tag is designed to be tamper-proof and waterproof, providing excellent performance in both indoor and outdoor conditions. It is powered by an integrated antenna and a small chip, which is capable of transmitting and storing data over a wide range of wireless frequencies.

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 13m
Chip Type Impinj Monza 4E/ 4QT
EPC Memory 496 bits/128 bits
User Memory 128 bits/512 bits
Tag Material Paper
Antenna Material Aluminium
Inlay Size 98mm(L) x 12mm(W)
Applicable Surface Glass, Plastic, Wood, Cardboard
Attachment /Mounting Method Adhesive
Operating Temperature -40°C to +85°C
