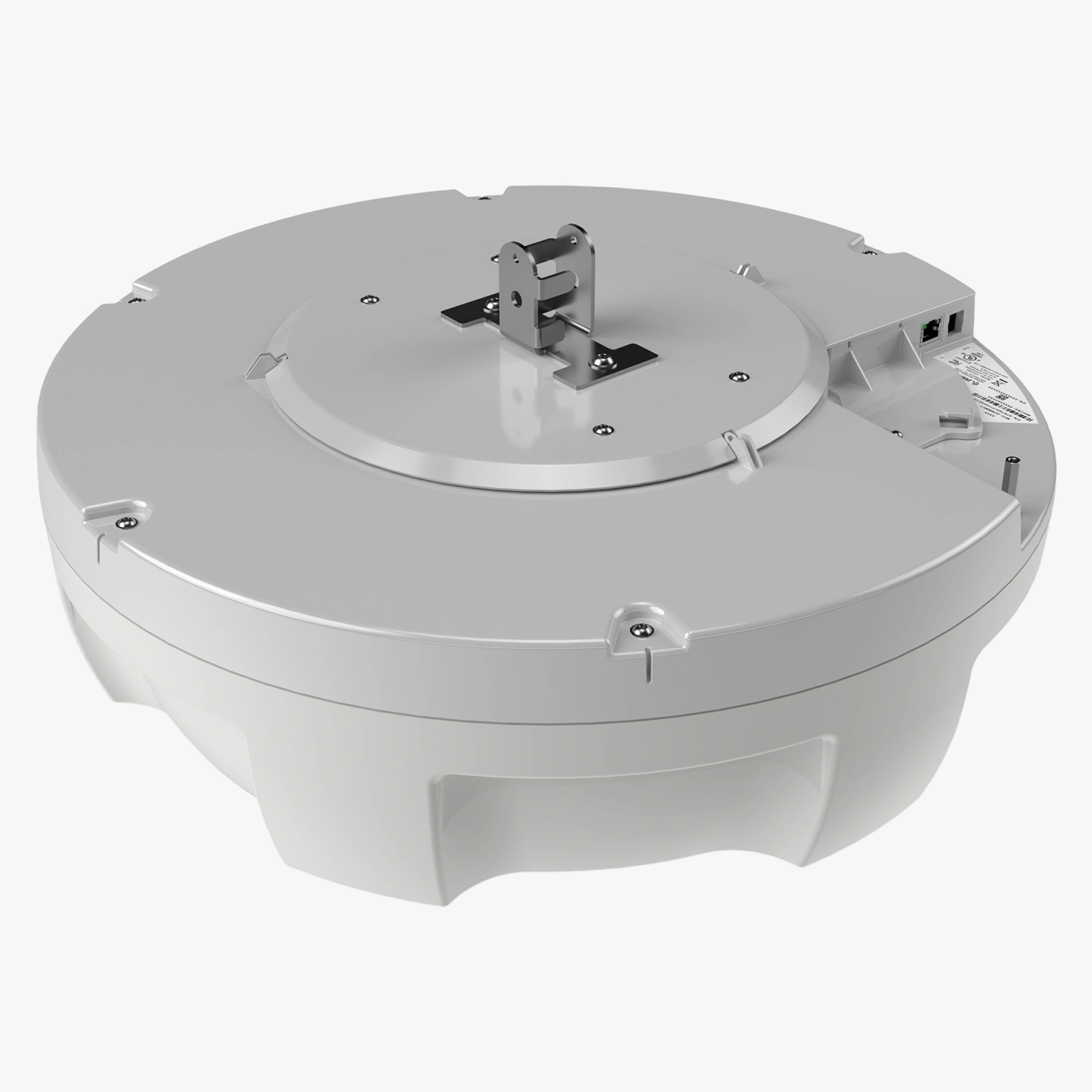

Get the Zebra ATR7000 RTLS Fixed/Overhead RFID Reader, featuring digital beam steering and a wide-angle, phased-array antenna, offering high-performance real-time location tracking

By Zebra
i
Write a review
Features
Operating Frequency: 902-928 Mhz
Air Interface Protocol: EPCglobal UHF RFID Class 1 Gen2/ISO 18000-63
Antenna: Steerable phase-array
Max Receive Sensitivity: - 88 dBm
General Purpose I/O: Reserved, two (2) inputs, three (3) outputs (Opto-isolated)
Enquire Now
Be the first to review this item
 Write a review

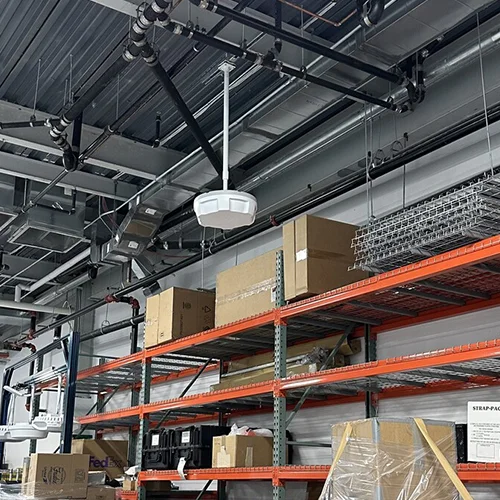

Take your warehouse management to the next level with the Zebra ATR7000 RTLS Fixed RFID Reader. The Zebra ATR7000 RTLS reader is a high-performing, highly efficient solution when it comes to real-time tracking of RFID labeled packages and consignment within the large warehouses, monitoring their location, ins and outs, product details, and FIFO status in real-time. The ATR7000 reader is an advanced solution for real-time location tracking, asset management, and inventory control featuring digital beam steering and a wide-angle, phased-array antenna.

Designed with precision and simplicity in mind, the Zebra ATR700 RTLS reader operates in the UHF RFID frequency band (865-867 MHz), providing maximum performance for a wide range of applications. Its wide-angle multi-polarized antenna ensures reliable and accurate data capture, even in challenging environments. With multiple mounting options available, including wall and ceiling mounts, the ATR7000 seamlessly integrates into existing infrastructure setups, providing flexibility and ease of installation.

The ATR7000, a Real-time Location Tracking Reader by Zebra can track RFID labeled consignments over a range of 40 feet with a 2-feet precision and share the captured information to a desired ERP/WMS. The ATR7000 Reader works with Motionworks Enterprise RTLS system by Zebra to manage the location of assets in real-time, capturing data and converting them into meaningful insights for better decision-making.

EnCstore offers all kinds of Zebra AIDC products and accessories including RFID Readers, RTLS Readers, Barcode Scanners, RFID Printers, and Antennas, available at competitive prices with pan-India express delivery and 7-day returns.

Applications of Zebra ATR7000 RTLS Fixed RFID Reader

• Asset tracking and Area monitoring in Warehousing

• Overhead portal

• Dock doors

• Entry/exit areas

• RTLS

• Manufacturing automation

Specifications
Operating Frequency 902-928 Mhz
Air Interface Protocol EPCglobal UHF RFID Class 1 Gen2/ISO 18000-63
Antenna Steerable phase-array
Max Receive Sensitivity - 88 dBm
General Purpose I/O Reserved, two (2) inputs, three (3) outputs (Opto-isolated)
Beam Scanning Range Azimuth 0-360°, Elevation 0-60°
Network Connectivity 10/100 BaseT Ethernet (RJ45)
Operating System Linux
Operating Temperature -20° C to +55° C
Storage Temperature -40° C to +70° C
Weight 11.1 lbs ( 5.03 kg)
Visual Status Indicator Multi-Color LED (Power, Status)
Humidity 5-95% non-condensing
Sealing IEC IP51
Vibration MIL STD 810F, 0.04g2/Hz, Random (20 Hz to 2 kHz), 6G rms.
