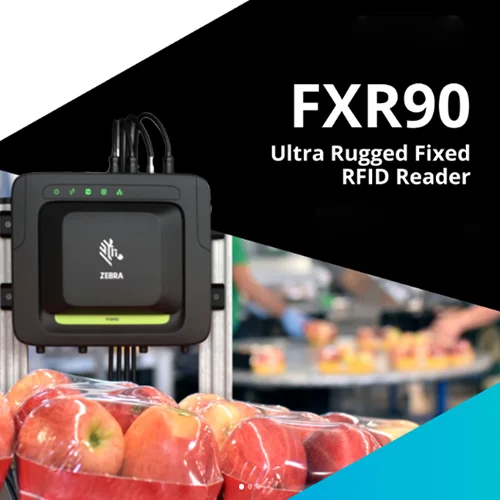

Zebra FXR90 RFID Reader, Fixed, Ultra Rugged, 4 & 8 Ports

Zebra FXR90 Ultra Rugged Fixed RFID Reader, UHF 860-960 MHz frequency, 4 Antenna ports, Wall mount, Wi-Fi 6, Bluetooth®, 5G, GPS, CBRS, -92 dBm receiver sensitivity and dual IP65/IP67 ratings.

Write a review
Features
Brand: Zebra
Operating Frequency: 865 - 928 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Maximum Receiver Sensitivity: -92 dBm
Maximum Read Rate: 1,300+ tags/sec
Maximum RFID Read Range - Integrated Antenna: 100 (ft); 30.5 (m)
Enquire Now
Be the first to review this item
 Write a review

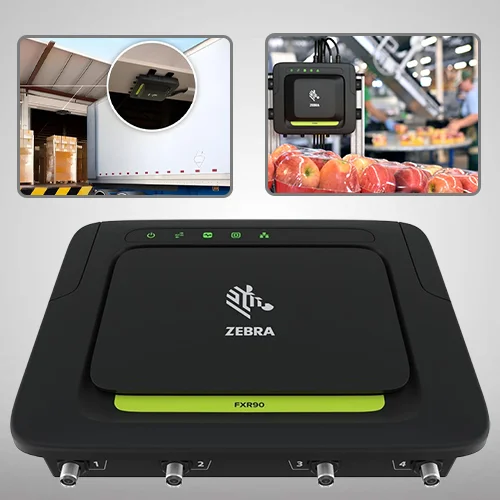

Get the latest Zebra FXR90 Fixed RFID Reader, an Ultra-rugged UHF RFID reader with 4 and 8 ports offering robust and reliable RFID reading capabilities. The high-performing fixed RFID reader by Zebra Technologies is designed for demanding environments. The FXR90 UHF RFID Reader features both IP65 and IP67 ratings that make it resistant to dust and water ingress, suitable for indoor and outdoor uses.

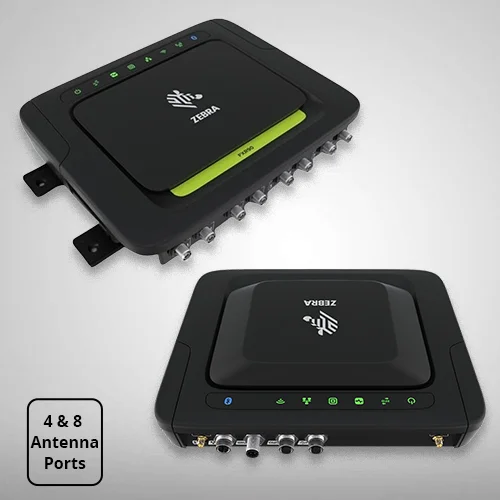

The Zebra FXR90 RFID scanner comes in two models namely the FXR90 Ultra-Rugged Fixed RFID Reader and the FXR90 Ultra-Rugged Fixed RFID Reader with Integrated Antenna. These high-performing industrial RFID readers are easy to deploy and the integrated antenna ensures seamless data capture from RFID tags with 7dBi antenna gain and 72 degree Antenna beamwidth.  These UHF RFID readers are also equipped with advanced communication technologies including Wi-Fi 6, Bluetooth®, 5G, GPS, and CBRS, providing seamless integration and connectivity in various industrial applications.

Operating within the UHF 860-960 MHz frequency range, with a receiver sensitivity of -92 dBm, the FXR90 excels in capturing weak RFID signals, ensuring accurate and efficient data collection even in challenging conditions. The device's flush mount and VESA mount capabilities further enhance its suitability for fixed installations in warehouses, manufacturing plants, and other rugged settings.

The NFC tap-to-pair and SSP Bluetooth pairing options, 1300+ tags per second read rate, and up to 100ft read range make it an even more obvious choice when it comes to industrial RFID installation.

EnCstore offers FXR90 fixed readers and other Fixed and Handheld RFID readers, printers, and antennas by Zebra technologies, available at industry best prices.

Applications of FXR90 Ultra-Rugged Fixed RFID Reader

• Transportation and logistics

• Item finding

• Inventory cycle counting

• Manufacturing

• Work in progress tracking

• Government

• Asset tracking

• Chain of custody

Specifications
Operating Frequency 865 - 928 MHz
Communication Protocol EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Maximum Receiver Sensitivity -92 dBm
Maximum Read Rate 1,300+ tags/sec
Maximum RFID Read Range - Integrated Antenna 100 (ft); 30.5 (m)
Nominal RFID Read Range - Integrated Antenna 55 (ft); 16.7 (m)
Antenna Port Configurations Integrated Antenna with 4 External Antenna Ports 4 External RP-TNC Antenna Ports, 8 External RP-TNC Antenna Ports
Integrated RFID Antenna Gain 7 dBi
Memory 2GB LP DDR4 RAM/16GB eMMC Flash
Operating System Linux
Dimensions 33.5 X 25.4 X 5.5 (cm)
Weight 2.70 kg
Material Diecast Aluminum (Reader Body) Polycarbonate/Polybutylene Terephthalate Blend (Antenna Radomes)
Operating Temperature -40° C to 65° C
Storage Temperature -40° C to 70° C
IP Sealing IP65 and IP67
