Superior UHF RFID Performance, 20w Maximum Input Power, 9dBi antenna Gain, RHCP Polarization Mode, Up to 950 tags/s Fastest Read Rate

Write a review
Features
Brand: Chainway
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Input Voltage: DC 9V – 12V
Dimensions: 270mm x 270mm x 33mm
Material: Plastic + Aluminum Alloy
Enquire Now
Be the first to review this item
 Write a review

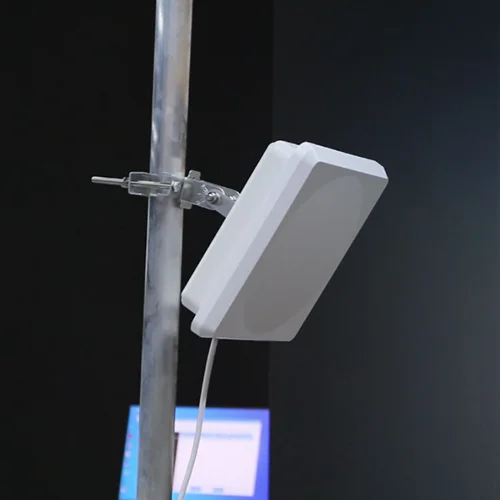

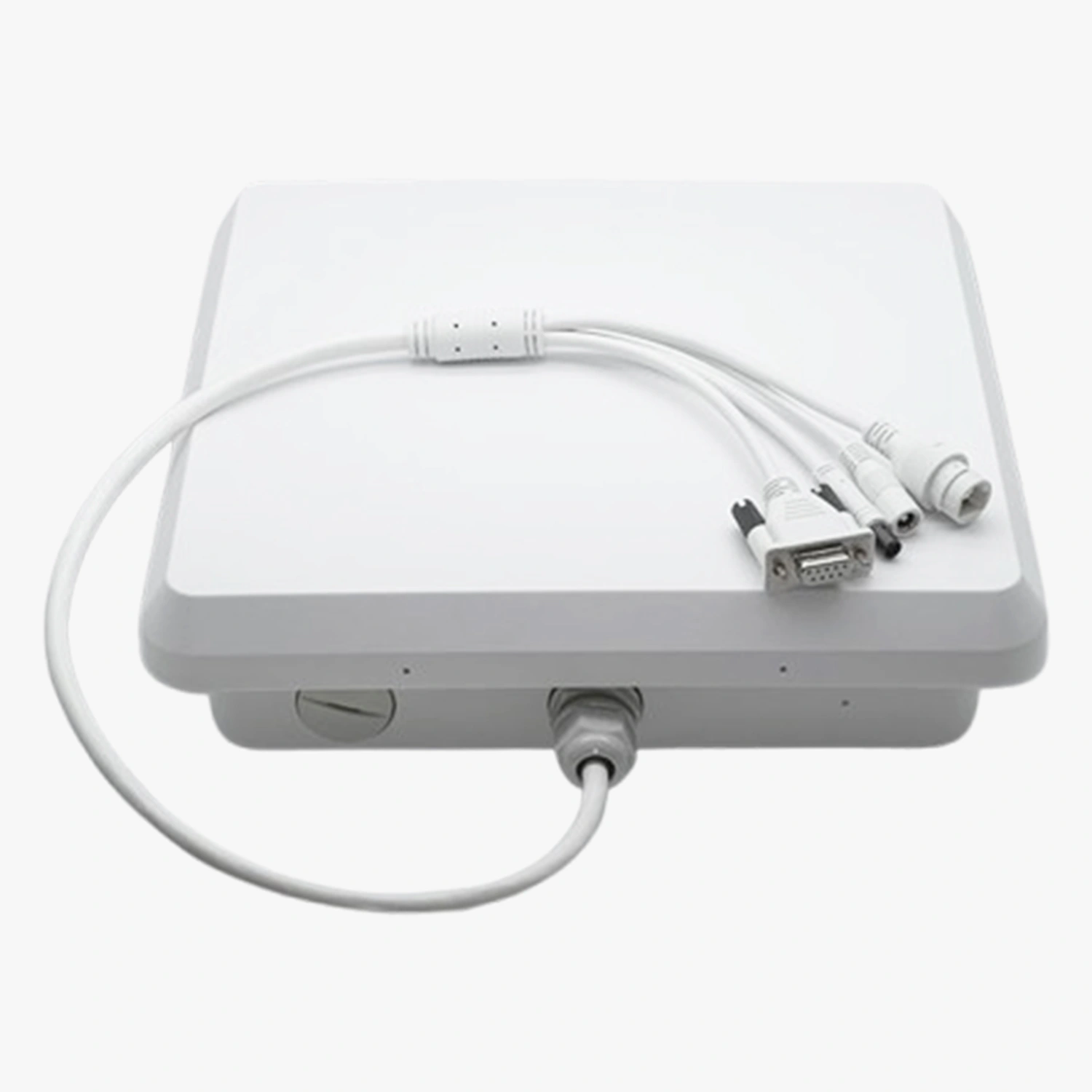

Chainway UR1A Integrated UHF RFID Readers are designed to provide reliable and secure identification of objects such as rail coaches, cars, big reusable containers, and other assets.

EnCStore offers high-performance, single-channel fixed UR1A Integrated UHF RFID Readers which are manufactured using materials such as plastic and aluminum alloy.

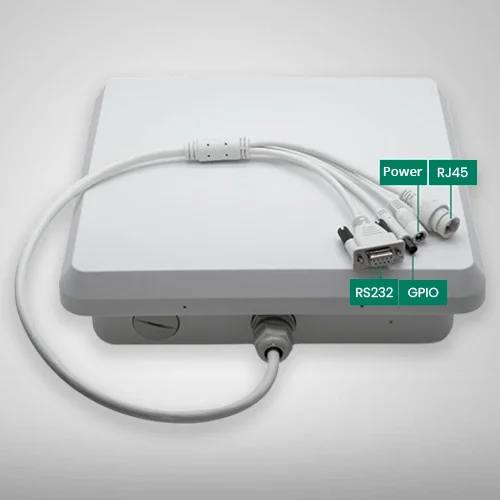

The RFID reader module is based on an E710 / R2000 chip and works together with an integrated high-performance antenna that operates on 865-868MHz (Ultra-High Frequency). It supports RS-232, RJ45, and trigger terminal communication interfaces and offers versatile use, providing a wide variety of applications like warehousing, Archives management, Library Management, Banking, Production Line Management, etc.

Specifications
Operating Frequency865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
Input VoltageDC 9V – 12V
Dimensions270mm x 270mm x 33mm
MaterialPlastic + Aluminum Alloy
Standby Current< 30mA
Output Power1W (30dBm, support +5~+30dBm adjustable),
Receive Sensitivity< -84dBm
Fastest Read RateUp to 950 tags/s
Operating Temperature-25°C to 65°C
Storage Temperature-40°C to 85°C
Polarization ModeRHCP (Right-handed Circular Polarization)
Gain9dBi
Antenna PortSMA Male
Lightning ProtectionDC Ground
Maximum Input Power20w
