Ultra High Frequency, 865-867 MHz, 8dbi linear polarization antenna , Output Power: 30dBm, Read Range: >15m, for Warehouse logistic management, Assets inventory management

Write a review
Features
Dimension: 280mm x 280mm x 40mm
Transmit power: Max. 30dBm adjustable
Antenna: 8dBi linear polarization antenna
Read Range: > 15M
Multi-tags Identification: > 500 pcs
Enquire Now
Be the first to review this item
 Write a review

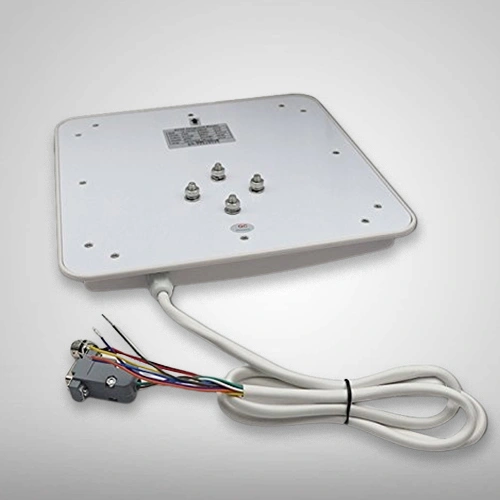

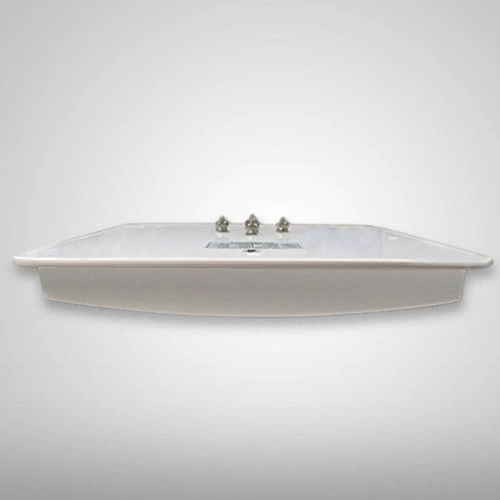

8dBi Integrated UHF RFID reader is a UHF tag and card reader used in RFID applications like gate access for vehicles, and physical access for items or people. The integrated Reader is optimally designed for Automatic Vehicle Identification (AVI) and Access Control applications such as parking facility gate control in a parking facility. The maximum power output of this reader/writer is 30dBm, upto 15m read range and the highest performance makes this reader more suitable for harsh application environment.

Application: Personnel and Vehicle access control, Manufacturing production line management, Warehouse logistic management, Assets inventory management etc

Specifications
Dimension 280mm x 280mm x 40mm
Transmit power Max. 30dBm adjustable
Antenna 8dBi linear polarization antenna
Read Range > 15M
Multi-tags Identification > 500 pcs
Operating Temperature - 20 °C - + 55 °C
Storage Temperature - 20 °C - + 85 °C
RF output interface 4 N-type connector / Integrated Antenna 8dBi
Read Speed > 500 pcs/s
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
Output Power 30dBm
Application Parking, Hospital, Library, Company, Bank, Store
