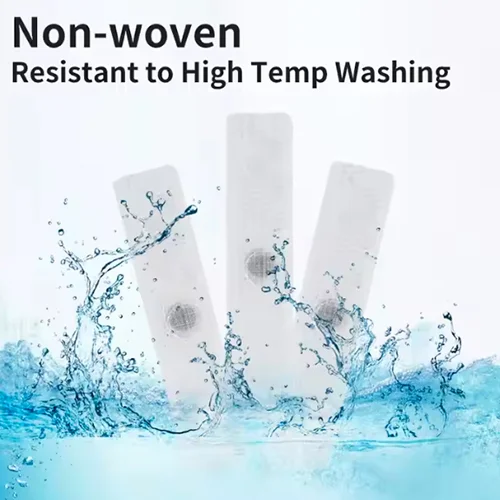

Ultra High Frequency, 865–867 MHz, Size: 75mm x 15mm (White), RFID Non-Woven fabric laundry tag for linen rental management, military clothing management

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 6m
Chip Type: NXP UCode 9
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

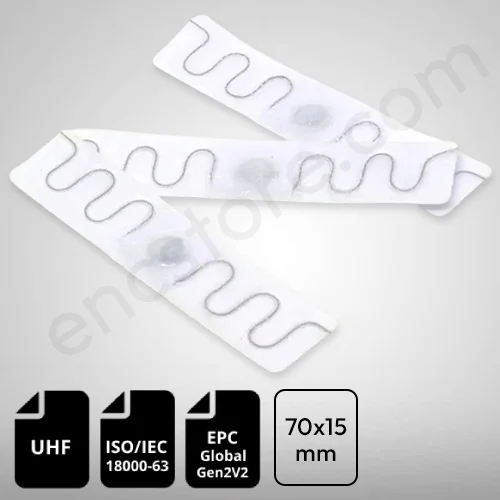

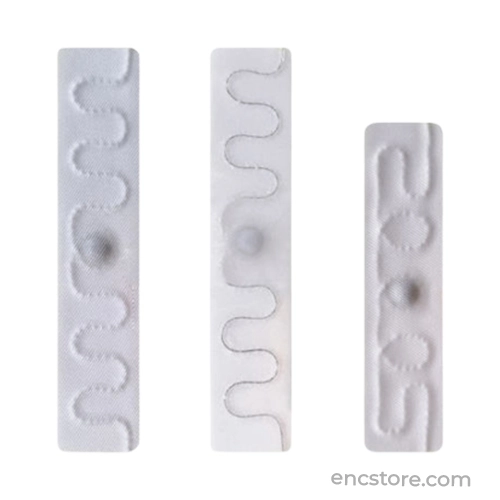

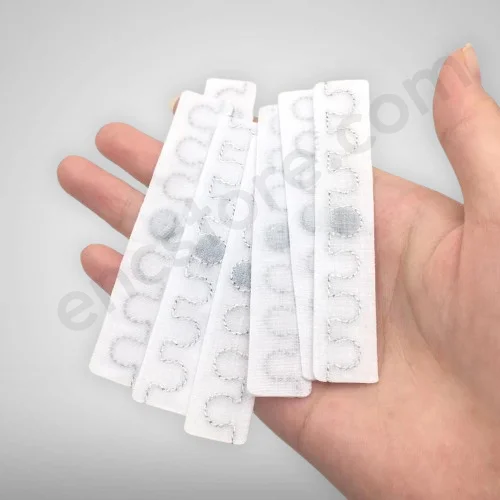

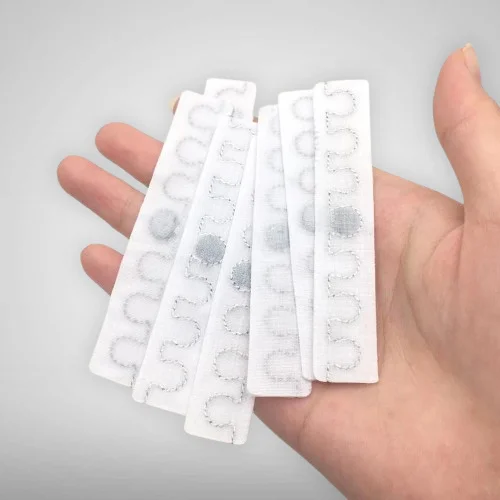

UHF RFID Non-Woven Fabric Laundry Tags are a type of RFID tag designed for use in the garment and textile industry. These Non-Woven Laundry tags are designed with a hole on the tag, so they can be sewn into garments or hung on the garments easily and withstand 180-degree high-temperature ironing as well as 200 times industrial washing.

These RFID laundry tags contain an RFID chip that is programmed with a unique identification number, which can be used to track the garments as they are processed in the laundry system. The tags are made of non-woven fabric material, making them durable and resistant to water, chemicals, and other external forces. They are also easy to attach to garments and other items and can be identified quickly with RFID scanners.

Applications

• Hospital laundry tracking

• Hotel linen tracking

• Apparel rental tracking

• Industrial laundry tracking

• Textile production tracking

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 6m
Chip Type NXP UCode 9
EPC Memory 96 bits
Write Cycle Endurance 100,000 Cycles
Tag Material Polycotton fabric base / 100 % Polyester

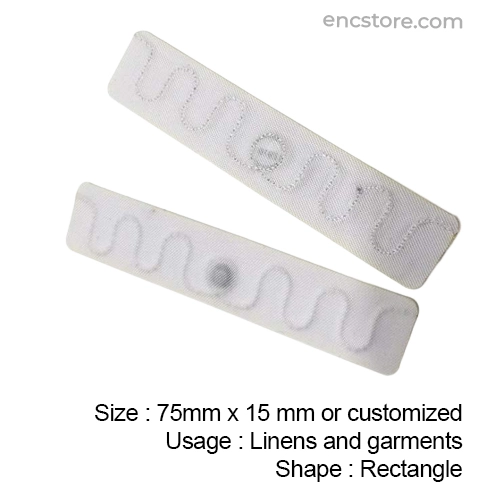

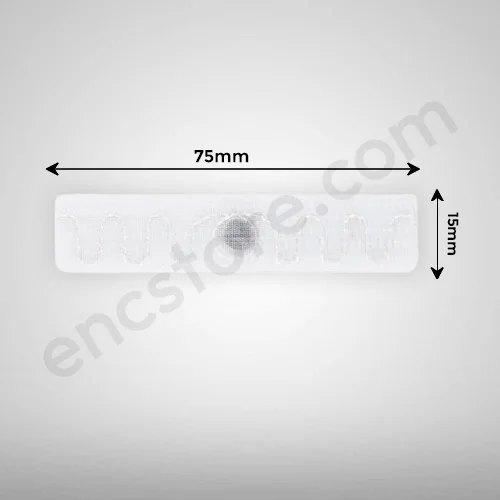

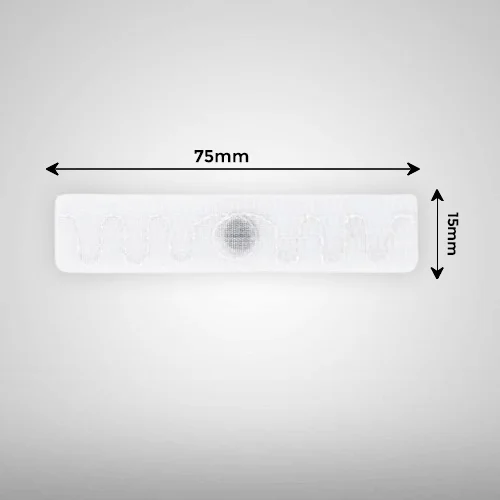

Tag Size 75mm(L) x 15mm(W)
Applicable Surface Linen and garments
Attachment /Mounting Method Thermal Patching / Heat -sealing/ Sewing
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +120°C
