Ethernet Connectivity, Circular Polarization Antenna, read range up to 22meters, Frequency: 865–867 MHz, for Parking and Warehouse management etc.

Write a review
Features
Dimension ((LXWXH): 266 x 266 x 105 mm
Connectivity: Ethernet
Read Range: Read distance up to 22 meters
Integrated Antenna Polarization: Circular
Operating Temperature: -20°C to 50°C
Enquire Now
Be the first to review this item
 Write a review

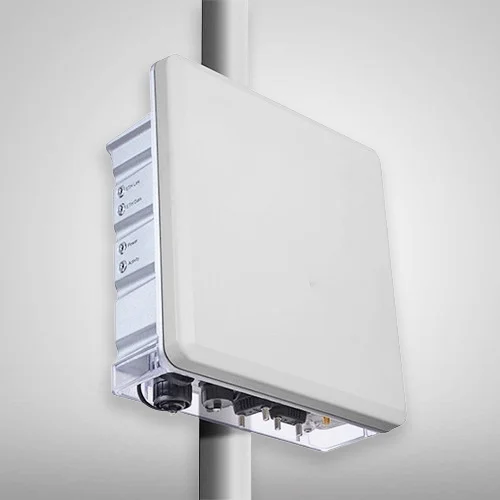

An integrated circular polarized antenna comes with a read range of up to 22 meters (tag and environment dependent), they allow you to start reading RFID tags/labels without running long coax cables to costly external antennas. Integrated RFID Readers combination of an RFID Reader and an RFID Antenna in one device. The integrated Reader is optimally designed for Automatic Vehicle Identification (AVI) and Access Control applications such as parking facility gate control in a parking facility.

Applications: Personnel and Vehicle access control, Manufacturing production line management, Warehouse logistic management, Assets inventory.

Specifications
Dimension ((LXWXH)266 x 266 x 105 mm
ConnectivityEthernet
Read RangeRead distance up to 22 meters
Integrated Antenna PolarizationCircular
Operating Temperature-20°C to 50°C
Storage Temperature-40°C to 85°C
PowerDC Supply (12V, 5A)
Dust and Waterproof IP68
Operationg Frequency865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
