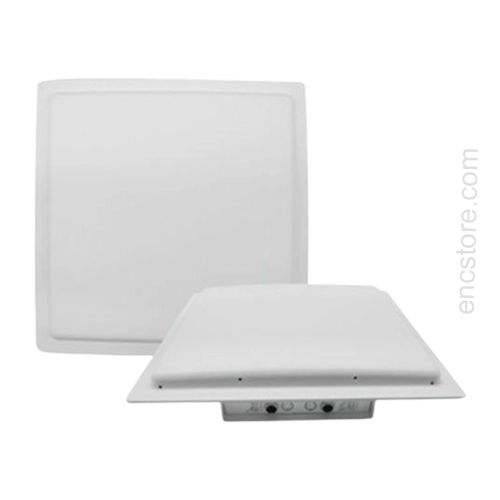

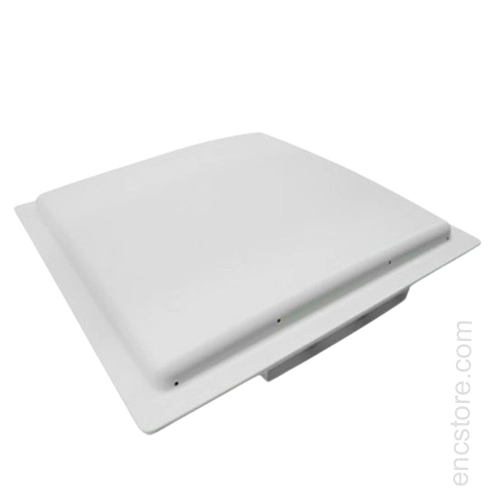

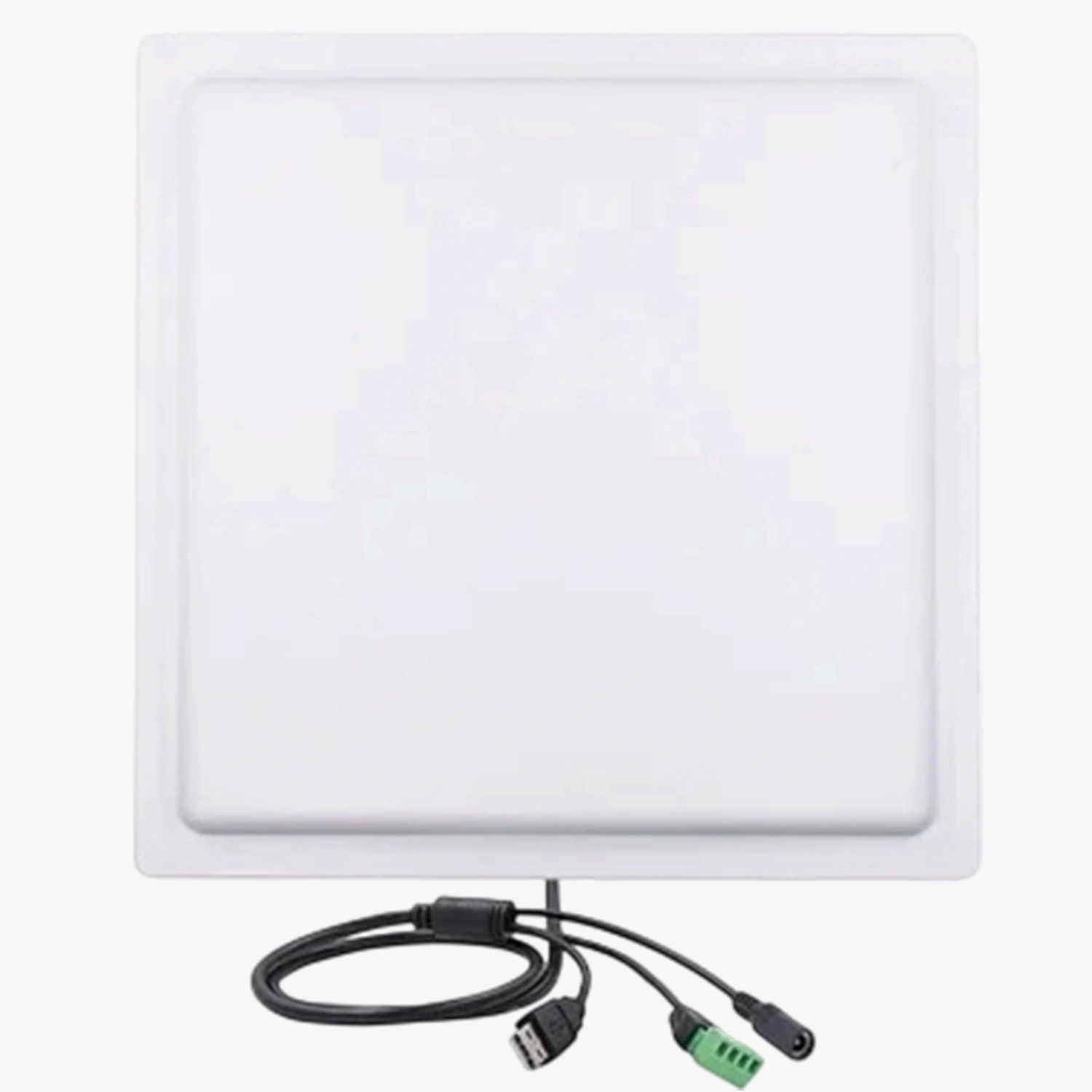

Long Read Range Integrated UHF RFID Tag Reader (15 mtr)

Long Read Range UHF/Passive RFID Tag Reader has a wider range and a 12dbi integrated antenna for enhanced performance. With a power output range of 20 to 30dBm

Write a review
Features
Operating Frequency:: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2

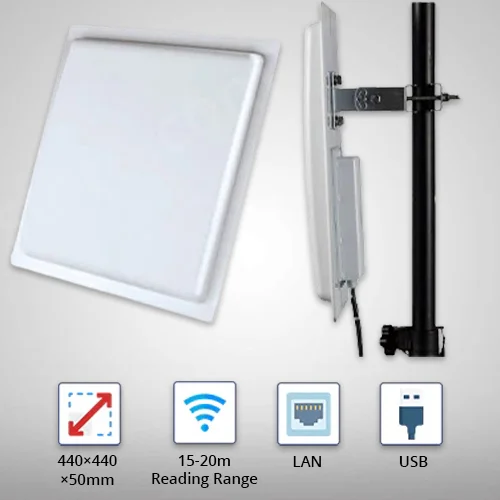

Mounting: Wall / Pole Mounting

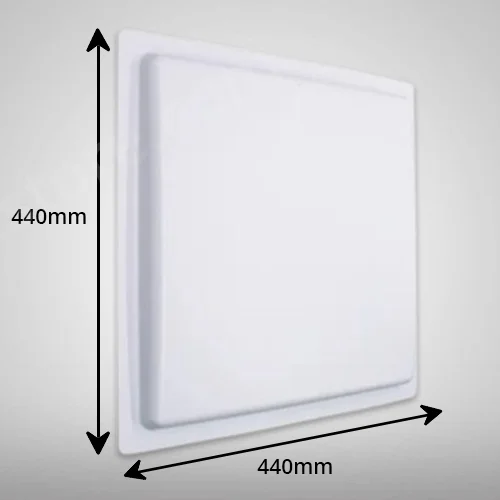

Dimension: 440mm(L) × 440mm(W) × 50mm(T)
Read Speed: 32bits/6ms
Enquire Now
Related Products
Mid range upto 6mtrs Integrated UHF RFID Reader
Long Distance UHF Integrated RFID Reader
Mid Read Range Upto 10Mtrs Integrated UHF RFID Reader
7dBi Integrated Reader, Pole Mountable UHF RFID Reader
8dBi Integrated UHF RFID Reader
Be the first to review this item
 Write a review

The UHF RFID long-range integrated readers are designed to capture and decode information from UHF (ultra-high frequency) RFID tags from a distance of up to 15m.

These high performing Integrated RFID Readers are a combination of an RFID Reader and an RFID Antenna in single casing. These integrated readers are very convenient offering easier installation, space savings, and elimination of unnecessary antenna cables.

These can be used in the form of gate readers, portals, overhead-mounted devices, or smart shelves.

EnCstore offers these UHF RFID long read range integrated readers with 12dBi gain integrated antennas at best prices, designed and manufactured by industry best RFID manufacturers in India and abroad.  These integrated readers are most suitable for applications such as Vehicle management, Personnel access control, Logistic monitor, Production auto management system, Gate automation and Material asset identification, etc.

Specifications
Operating Frequency:865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
MountingWall / Pole Mounting
Dimension440mm(L) × 440mm(W) × 50mm(T)
Read Speed32bits/6ms
Operation ModeFHSS
RF Power0~30dBm, Software adjustable
Reading SpeedSoftware Programmable, Average Reading per
Reading ModeTiming or Touch, Software Programmable
Data PortsStandard Wiegand26/34, RS232,RJ45
Data Input PortTrigger Input one, Anti-Collision and Multi- reading
Read Range~12m
AntennaBuilt-in line polarization Antenna
Gain12dBi
Voltage Rating220Vac – 9VDC
Power Consumption50W
