Zebra FS80 Fixed Industrial Scanner uses high-resolution scanning 5–16MP sensors with advanced ZIML lighting, IP67 ruggedness, 360° feedback & deep-learning OCR for long-range barcode scanning

Write a review
Features
Brand: Zebra
Type: Fixed Scanner

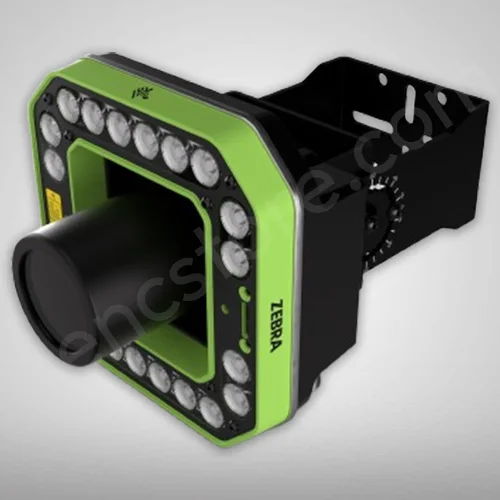

Innovations: ZIML lighting (white/red/IR) with dual laser aimer and polarizer filters
Configurable I/O: 3 opto-coupled inputs, 3 trigger outputs; GPIO up to 24?V

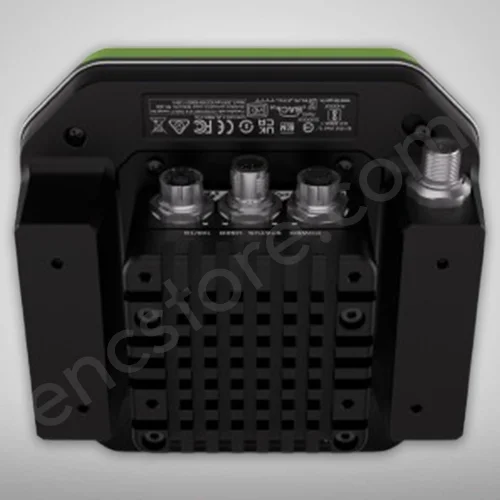

Housing: IP67, M12 connectors, C mount sealed lens, detachable mounting bracket
Software: Zebra Aurora Focus with advanced image tuning, ML-OCR, anomaly detection
Enquire Now
Be the first to review this item
 Write a review

As a top-tier flagship Industrial scanner, the Zebra FS80 delivers maximum throughput with high-resolution sensors (5.3–16MP up to 42fps), integrated multifunction lighting (ZIML), and C mount lens options (8–35mm). Its wide field of view and powerful lighting make it ideal for long-range conveyor, dock-door, and scan tunnel deployments.

EnCstore offers the Zebra FS80 fixed industrial scanners and other FS and VS series of Zebra industrial scanners and machine vision camera at industry best prices, shipping all over India.

Key Features of Zebra FS80 Fixed Industrial Scanner

Innovations: ZIML lighting (white/red/IR) with dual laser aimer and polarizer filters

Configurable I/O: 3 opto-coupled inputs, 3 trigger outputs; GPIO up to 24V

•  Housing: IP67, M12 connectors, C-mount sealed lens, detachable mounting bracket

•  Software: Zebra Aurora Focus with advanced image tuning, ML-OCR, anomaly detection

•  Power & comms: 1GbE, VGA/USB service port; real-time I/O for automation devices

•  Dimensions: 75mm × 120mm × 75mm (with lens)

Applications of Zebra FS80 Fixed Industrial Scanner

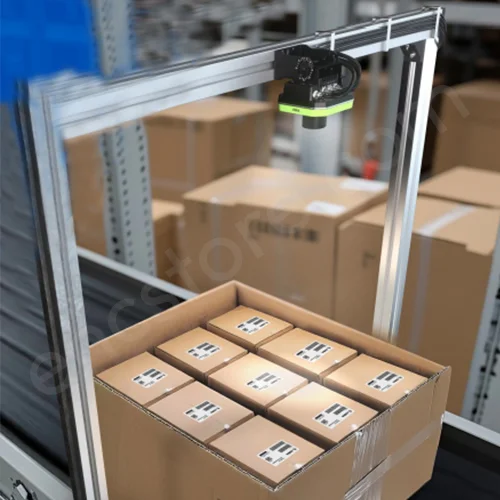

•  High-speed conveyors

•  Scan tunnels

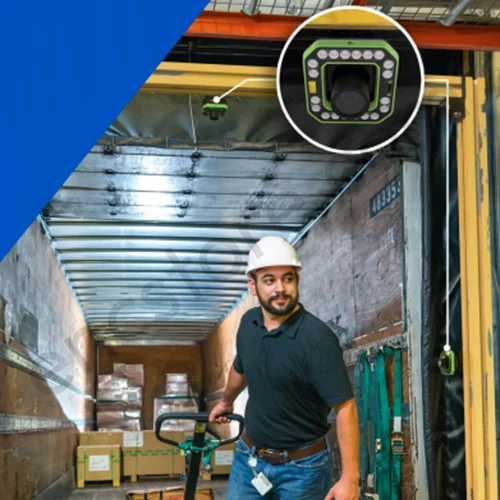

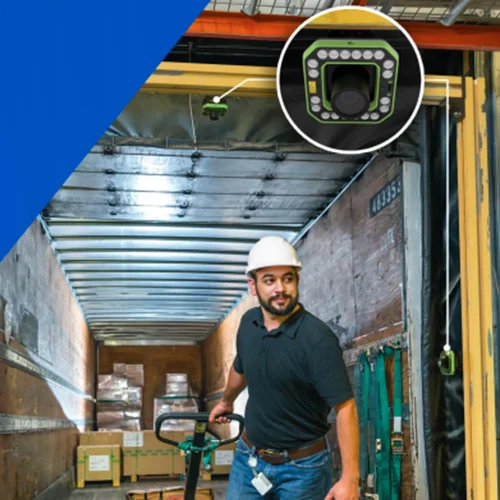

•  Forklift/dock scanning

•  Overhead pack station integration



Where can I buy the Zebra FS80 Fixed Industrial Scanner in India?

EnCstore delivers Zebra FS-series fixed scanners across India, complete with:

Full Zebra Aurora Focus ecosystem for setup, licensing, and dashboard control

Factory-backed warranty (1–2years per model) and Zebra OneCare™ support

Scalable licensing (OCR, DPM, MV toolsets) to future-proof installations

Specifications
Type Fixed Scanner
Innovations ZIML lighting (white/red/IR) with dual laser aimer and polarizer filters
Configurable I/O 3 opto-coupled inputs, 3 trigger outputs; GPIO up to 24?V
Housing IP67, M12 connectors, C mount sealed lens, detachable mounting bracket
Software Zebra Aurora Focus with advanced image tuning, ML-OCR, anomaly detection
Power & comms 1GbE, VGA/USB service port; real-time I/O for automation devices
Dimension 75mm × 120mm × 75mm (with lens)
Weight 504g
Communication Protocols TCP/IP, Ethernet/IP, PROFINET, Modbus TCP
Memory Storage 32 GB eMMC
Supported Lens Type C-Mount
