Zebra FS70 is a rugged IP65/67 fixed industrial scanner with 2.3MP or 5.1MP CMOS, scan 1D/2D barcodes, up to 60fps, dual/PoE+, C-mount lens options, PRZM imaging & ImagePerfect+ for high-quantity

Write a review
Features
Brand: Zebra
I/O Connectivity: 9 programmable I/Os, 360° LED & beeper feedback
Housing: IP65/IP67 sealed, chemical- and oil-resistant aluminum
Power: PoE, 24VDC or USB C; IoT-ready with Zebra Savanna or cloud
Mounting: 8-point laser sunburst aimer for quick alignment
Image Sensor: 2.3MP: 1/2.3 inch CMOS, global shutter 1920 x 1200 3.0 um square pixels Monochrome 5.1MP: 1/2.5 inch CMOS, rolling shutter 2,592 x 1952 2.2 um square pixels Monochrome
Enquire Now
Be the first to review this item
 Write a review

The Zebra FS70 combines high-performance imaging with the processing power and configurability of the FS40, including multi-code capture and DPM decoding, while preserving compactness and reliability.

 Integrated lighting and connectivity options mirror the FS40/FS42 while supporting upgrade paths to deeper OCR or machine vision scanning via Aurora licenses.

EnCstore offers the complete range of Zebra Fixed Industrial Scanners and Machine Visions Sensors at industry best prices while offering pan-India shipping.



Key Features of Zebra FS70 Fixed Industrial Scanner

Sensor: 2.3MP up to 60fps (short-range); 5.1MP @ 30fps

I/O: 9 programmable I/Os, 360° LED & beeper feedback

Housing: IP65/IP67 sealed, chemical- and oil-resistant aluminum

Mounting: 8-point laser sunburst aimer for quick alignment

Power: PoE, 24VDC or USB-C; IoT-ready with Zebra Savanna or cloud

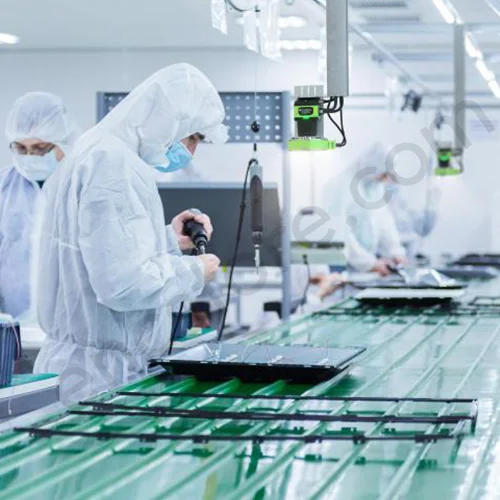

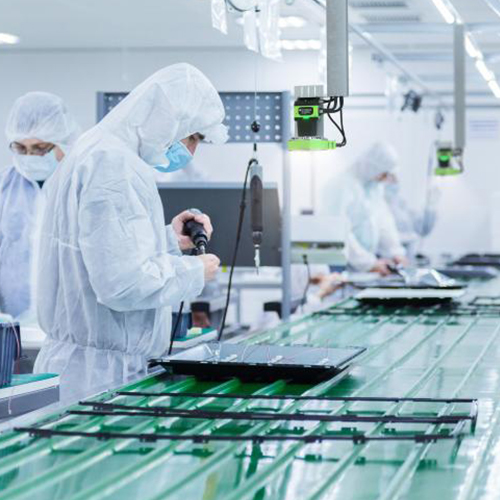

Applications of Zebra FS70 Fixed Industrial Scanner

Mid-range production & packaging lines

Serialization and traceability

Overhead verification

What is the warranty on Zebra FS70 Fixed Industrial Scanners?

The Zebra FS70 fixed industrial Scanner comes with a one-year manufacturer’s warranty, covering material and workmanship defects from the date of purchase.

Where can I buy the Zebra FS70 Fixed Industrial Scanner in India?

You can buy the Zebra FS70 Fixed Industrial Scanner in India from EnCstore.com, where we offer a complete range of Zebra’s industrial scanners, RFID readers, antennas, and mobile computers.

EnCstore delivers Zebra FS-series fixed scanners across India, complete with:

• Full Zebra Aurora Focus ecosystem for setup, licensing, and dashboard control

• Factory-backed warranty (1–2years per model) and Zebra OneCare™ support

• Scalable licensing (OCR, DPM, MV toolsets) to future-proof installations

Specifications
I/O Connectivity9 programmable I/Os, 360° LED & beeper feedback
HousingIP65/IP67 sealed, chemical- and oil-resistant aluminum
PowerPoE, 24VDC or USB C; IoT-ready with Zebra Savanna or cloud
Mounting8-point laser sunburst aimer for quick alignment
Image Sensor2.3MP: 1/2.3 inch CMOS, global shutter 1920 x 1200 3.0 um square pixels Monochrome 5.1MP: 1/2.5 inch CMOS, rolling shutter 2,592 x 1952 2.2 um square pixels Monochrome
Dimension63mm(H) x 95mm(D) x 65mm(W)
Weight650g
PowerExternal power supply: 10-30 VDC, 1.5 A max 24 VDC (36 W max) PoE+ supply: Class 4, 25.5 W max PoE supply: Class 3, 13 W max USB-C host: 5 VDC, 3 A max (15 W max)
Configurable IOFour opto-isolated GPIO: GPIO0,1,2,3 Five non-isolated GPIO: GPIO4,5,6*,7*,8* *Unavailable when External Light Mode is enabled
Interface PortsTwo M12 X-Coded 1000/100/10 Mbps Ethernet* One M12 12-pin Power/GPIO/RS-232 One M12 5-pin External Light Power & Control/GPIO One USB 3.0 SuperSpeed Type-C with DisplayPort Alt Mode *Available with on
Operating Temperature0°C to 40°C
Storage Temperature40°C to 70°C
