Ultra high frequency, 865-867 MHz, High Performance, UHF Screw Metal Tag, Size: 34mm x30 mm, Read range up to 2m, Compact size and lightweight, IP Rating-68

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 1.8m
Chip Type: Alien Higgs 3
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

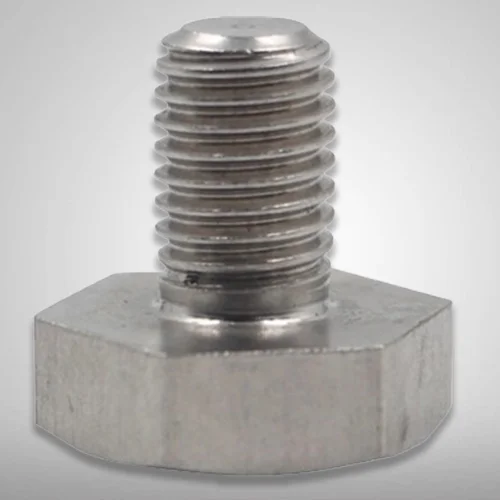

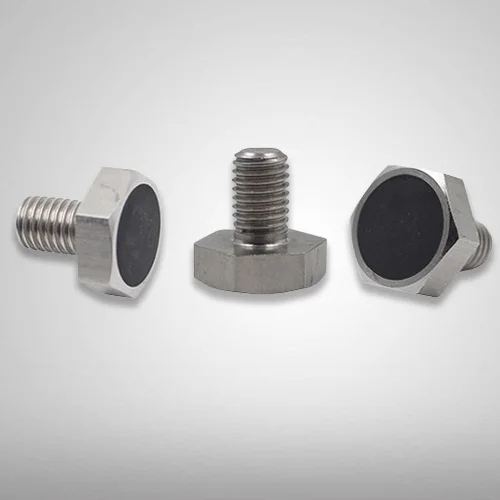

A UHF RFID Metallic Screw Embedded Tag is a type of RFID tag specifically designed to be attached in a metal surface or material. The tag is usually installed in a metal screw or bolt and is used to track and identify the screw or bolt. The tag contains an RFID chip and antenna that allows the tag to broadcast a unique ID number or other data to an RFID reader. The tag is typically used in industrial or manufacturing applications where tracking and identification of metal parts are required.

Application

• Factory automation,

• Tracking shipments,

• Metallic equipment management

• Asset management.

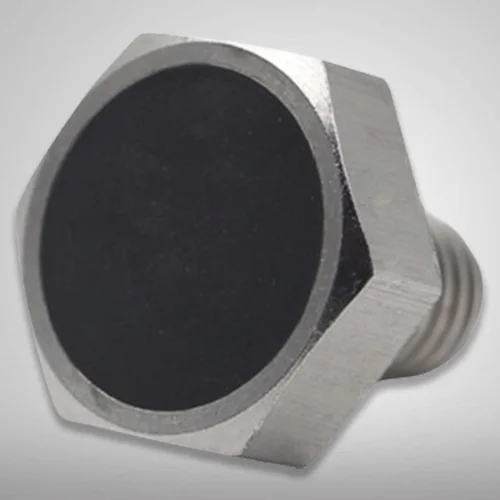

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 1.8m
Chip TypeAlien Higgs 3
EPC Memory96 bits
User Memory512 bits
Write Cycle Endurance100,000 cycles
Data Retention10 Years
Tag MaterialCeramic/Epoxy/Steel
Tag SizeD=34mm x 30mm
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodScrew
Weight76.4g
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +250°C
IP RatingsIP68
