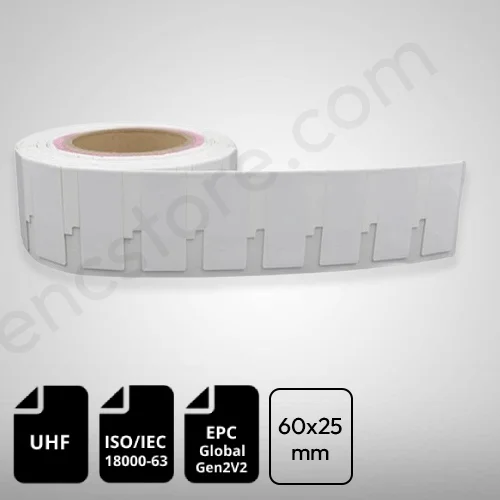

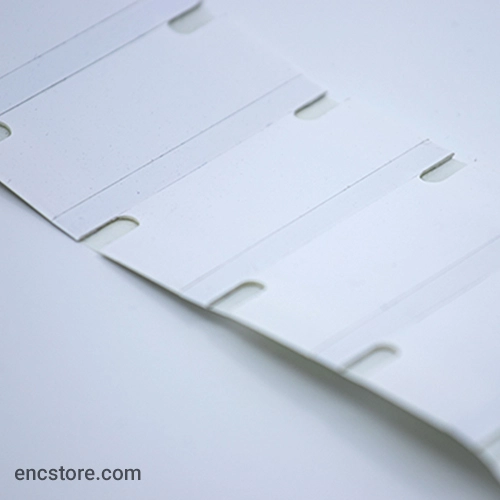

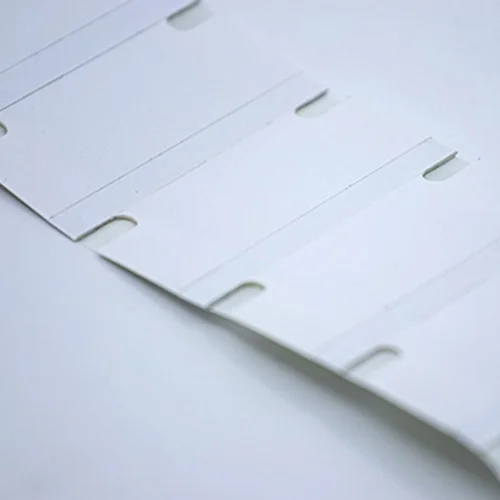

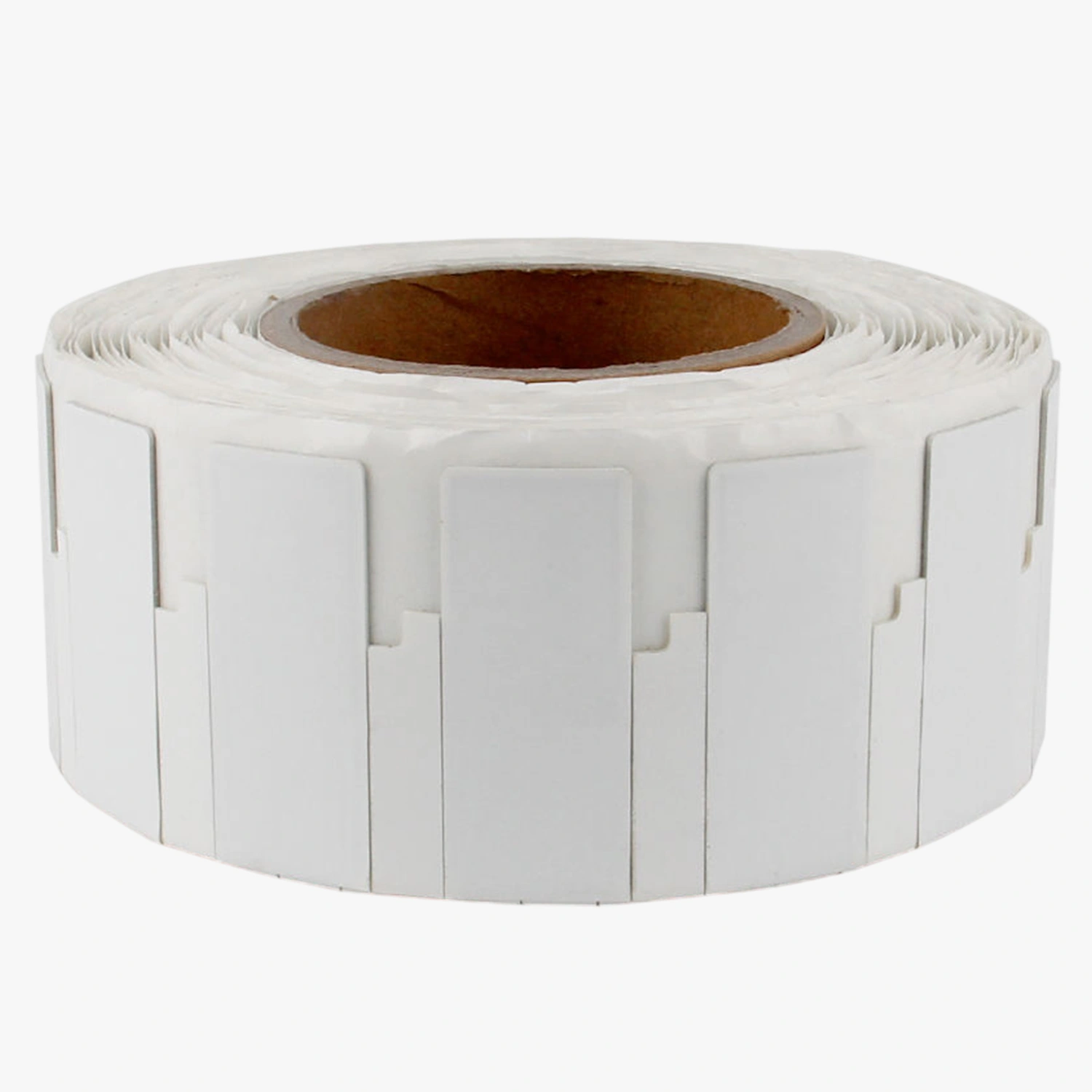

UNI-6006 (Slim Profile Tag) – Flexi On-Metal RFID Label

UNI-6006 Flexi On-metal Ultra High Frequency (860 – 960 MHz) RFID Metal Labels, 60mm X 6mm Size, offer a read range of up to 4m. A high-performance RFID metal label suitable for metallic assets

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 4m
Chip Type: Impinj Monza M730
EPC Memory: 96 bits
Be the first to review this item
 Write a review

UNI-6006 (Slim Profile Tag) – RFID Flexi On-Metal Label is an easy-to-use synthetic polyester sticker that is designed to work on metal surfaces and can be printed and encoded by an Industrial printer, making it ideal for tracking inventory in warehouses and factories.

The RFID On-Metal Label supports a flexible design and can conform to curved surfaces, ensuring accurate tracking even on irregularly shaped objects. It is made of polyester and can withstand harsh environments. It is suitable for tracking tools in industries, RTIs in warehouses, metal carts in retail stores, etc.

The UNI-6006 Flexi On-metal label has an adhesive backing and can be easily attached to metal surfaces. It comes with 96-bit and 128-bit EPC memory, easily programmable. It works on FCC: 902-928MHz, ETSI: 865- 868 MHz operating frequency and follows EPC Class1 Gen2 / ISO 18000-6 communication protocol. Flexi On-metal label provides accurate tracking and identification in IT asset tracking, retail, warehouse management, inventory control, etc.

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 4m
Chip TypeImpinj Monza M730
EPC Memory96 bits
Write Cycle Endurance100,000 cycles
Data Retention50 Years
Tag MaterialSynthetic Polyester
Tag Size60mm(L) X 06mm(W) X 1mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive
Operating Temperature-30°C to +80°C
Storage Temperature-30°C to +80°C
IP RatingsIP68

No file found !

FAQs

What RFID Communication Standards are used by RFID tags?

Most UHF RFID tags follow the EPCglobal Class 1 Gen 2 standard (ISO/IEC 18000-6C). This protocol ensures compatibility with standard UHF RFID readers and enables reliable long-range asset tracking.

How far can these Anti-metal RFID Flexible Tags be read from?

The Anti-metal tags operate at UHF frequencies (860–960 MHz) and provide a read range of  3-6 meters. The read range typical depends on the size of the tag, antenna design, and the choice of RFID chip, apart from the operating environments and RFID readers and antennas in use.

How do RFID Mount-on-Metal Label Tags help in inventory management and asset tracking?

RFID mount-on-metal label tags allow businesses to track metal assets and equipment automatically. They provide real-time asset visibility, reduce manual counting, improve inventory accuracy, and increase operational efficiency in warehouses and industrial environments.

What RFID tags are best for laptops (metal interference)?

Use on-metal/anti-metal RFID tags designed with tuned antennas or spacers to compensate for metal detuning, ensuring reliable RF performance on laptop chassis.
