860 - 960MHz Ultra High Frequency, RFID Flexible Tags, 101mm x 25mm Size, Applied on both metal and non-metal surfaces, Read range up to 3.5 meters, High Performance RFID Label

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 3.5m
Chip Type: Impinj Monza M730
EPC Memory: 128 bits
Be the first to review this item
 Write a review

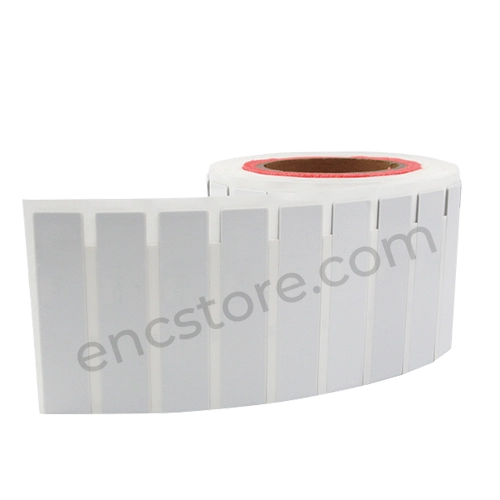

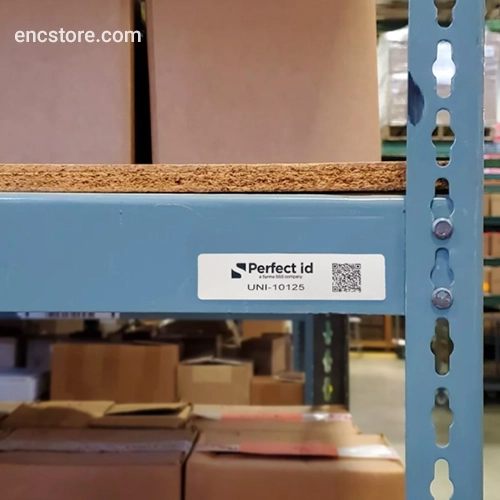

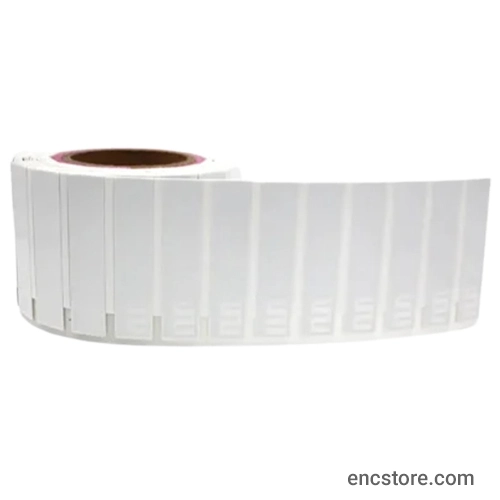

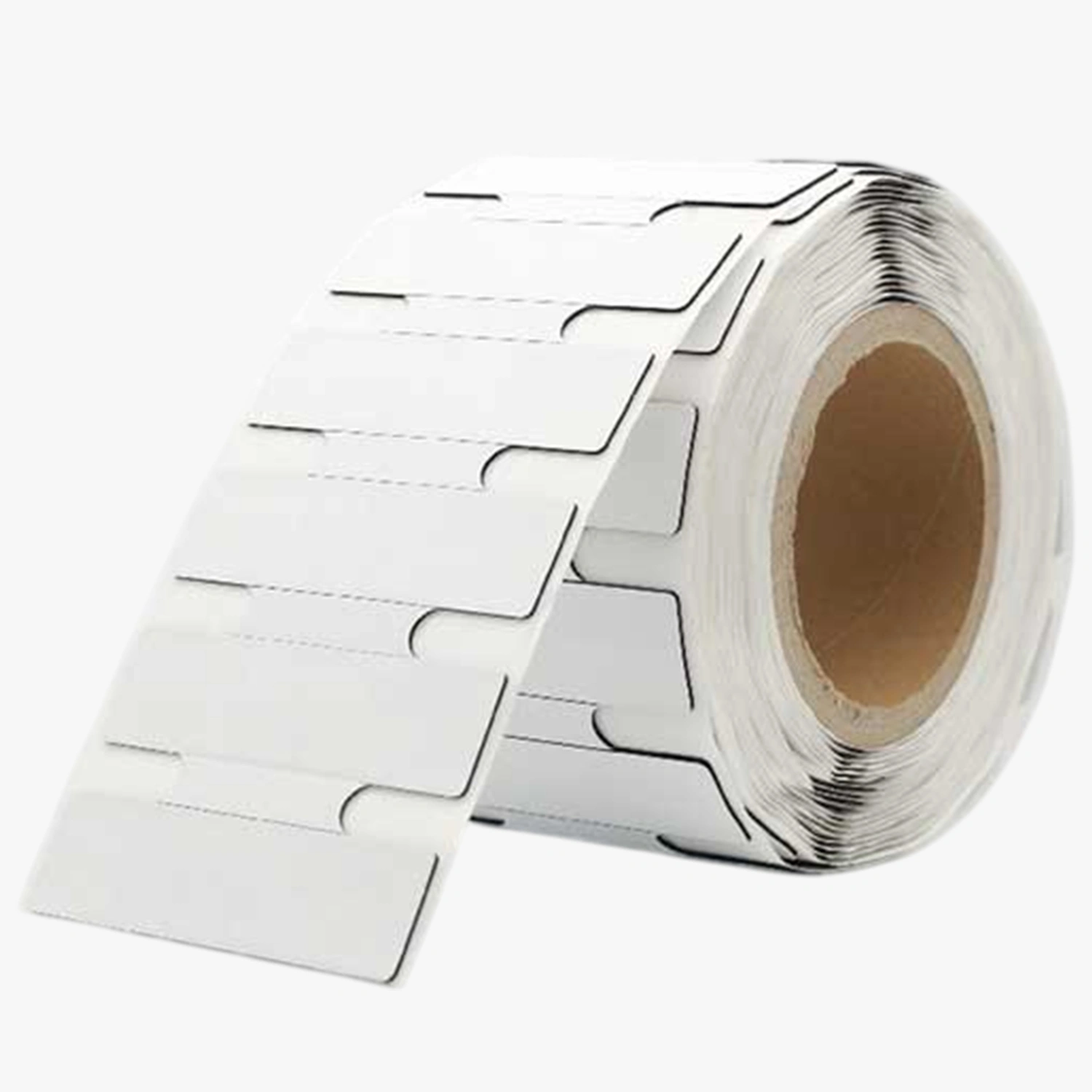

UNI-10125 RFID Flexible Tags are an easy-to-use sticker that tracks items using radio frequency identification (RFID) technology. This flexi on metal labels are designed to work on metal surfaces and can be printed and encoded by an Industrial printer, making it ideal for tracking inventory in warehouses and factories. With its flexible design, the flexi on metal labels can conform to curved surfaces, ensuring accurate tracking even on irregularly shaped objects. The RFID Flexible Tags are also durable and can withstand harsh environments, making it a reliable solution for tracking items in harsh conditions.

The flexible on-metal RFID Label is easy to use and can be quickly scanned with an RFID reader. Using the latest RFID technology, the RFID Label can be read from a distance, allowing for quick and efficient inventory management. The flexi on-metal label can be easily integrated into existing systems, making it a cost-effective solution for businesses of all sizes.

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 3.5m
Chip TypeImpinj Monza M730
EPC Memory128 bits
Write Cycle Endurance100,000 cycles
Data Retention50 Years
Tag MaterialSynthetic Polyester

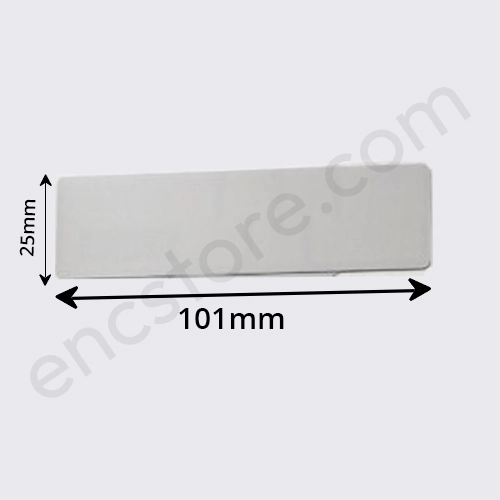

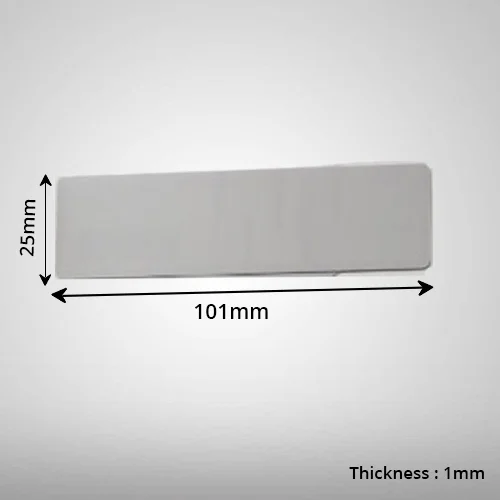

Tag Size101mm(L) X 25mm(W) X 1mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive
Operating Temperature-30°C to +80°C
Storage Temperature-30°C to +80°C
IP RatingsIP68

No file found !

FAQs

How far can these Anti-metal RFID Flexible Tags be read from?

The Anti-metal tags operate at UHF frequencies (860–960 MHz) and provide a read range of  3-6 meters. The read range typical depends on the size of the tag, antenna design, and the choice of RFID chip, apart from the operating environments and RFID readers and antennas in use.

How do RFID Mount-on-Metal Label Tags help in inventory management and asset tracking?

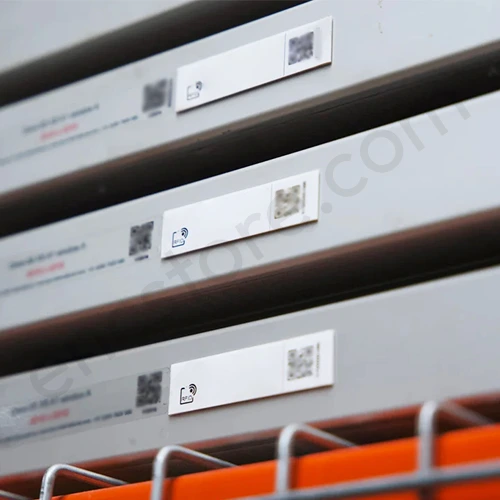

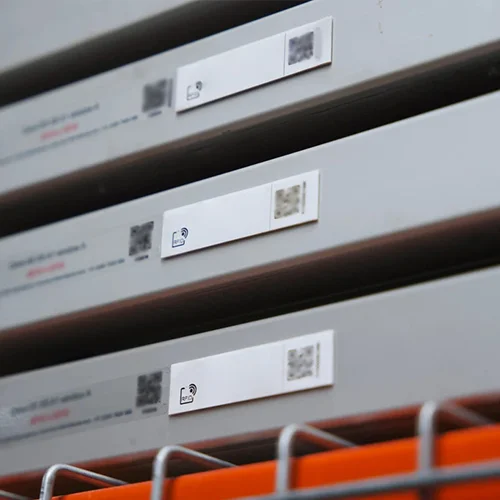

RFID mount-on-metal label tags allow businesses to track metal assets and equipment automatically. They provide real-time asset visibility, reduce manual counting, improve inventory accuracy, and increase operational efficiency in warehouses and industrial environments.

What RFID tags are best for laptops (metal interference)?

Use on-metal/anti-metal RFID tags designed with tuned antennas or spacers to compensate for metal detuning, ensuring reliable RF performance on laptop chassis.
