UNITP-7030 RFID Flexible Tags

Ultra High Frequency, 860-960 Mhz, RFID Flexible Tags, Size: 70mm x 30mm, Flexible and Self-Adhesive, Up to 8 mtrs Read Range, High performance RFID Label for metallic assets

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 8m
Chip Type: Impinj Monza M730
EPC Memory: 128 bits
Buy On Call
Order via ChatRequest Pricing
Related Products
UNI-6006 (Slim Profile Tag) – Flexi On-Metal RFID Label
UHF RFID Printable Flexible Anti-metal Tags
UHF Flexible On-Metal RFID Tag
UNI-10040 UHF RFID Flexible On-Metal Label/Tags
UHF RFID Flexi-On Metal Tags
Be the first to review this item
 Write a review

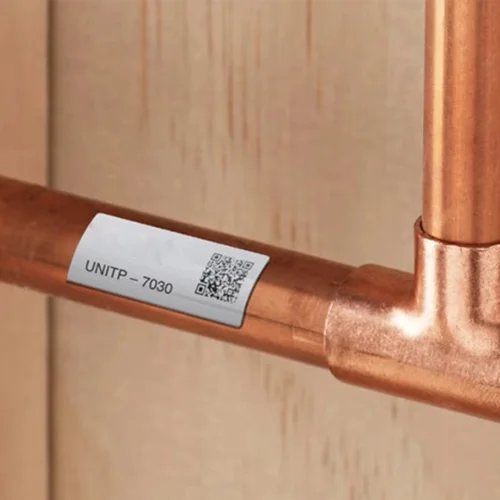

UNITP-7030 RFID Flexible Tags are passive UHF RFID tags that are designed to be used on metal surfaces and curved surfaces. Flexi on metal tags include high performance UHF RFID chips and antennae, enabling them to be read accurately and from a great distance. The flexi RFID tags are designed to operates at 860MHz to 960MHz UHF frequencies and provide a long read range of up to 8 meters. The RFID Flexible labels/tags are made from a combination of paper, polyester, and adhesive, and are designed to provide strong adhesion and reliable performance in a vast range of temperature and humidity conditions.
Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 8m
Chip TypeImpinj Monza M730
EPC Memory128 bits
Write Cycle Endurance100,000 cycles
Data Retention50 Years
Tag MaterialSynthetic Polyester
Tag Size70mm(L) X 30mm(W) X 1mm(D)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
IP RatingsIP68

No file found !

FAQs

Can UNITP - 7030 RFID Flexible tags be used on curved and metal surfaces?

Yes, these tags are specially designed with synthetic polyester material and self-adhesive material and due to their flexible structure, these tags stick to both metal and curved surfaces quite easily.

How far can these Anti-metal RFID Flexible Tags be read from?

The Anti-metal tags operate at UHF frequencies (860–960 MHz) and provide a read range of  3-6 meters. The read range typical depends on the size of the tag, antenna design, and the choice of RFID chip, apart from the operating environments and RFID readers and antennas in use.

What is the price range of these UNITP - 7030 RFID Flexible tags?

The UNITP - 7030 RFID Flexible tags are particularly priced in the range of INR 15 to INR 30 per unit, which also relies heavily on order volume and customization if any.

How do RFID Mount-on-Metal Label Tags help in inventory management and asset tracking?

RFID mount-on-metal label tags allow businesses to track metal assets and equipment automatically. They provide real-time asset visibility, reduce manual counting, improve inventory accuracy, and increase operational efficiency in warehouses and industrial environments.

What RFID tags are best for laptops (metal interference)?

Use on-metal/anti-metal RFID tags designed with tuned antennas or spacers to compensate for metal detuning, ensuring reliable RF performance on laptop chassis.
