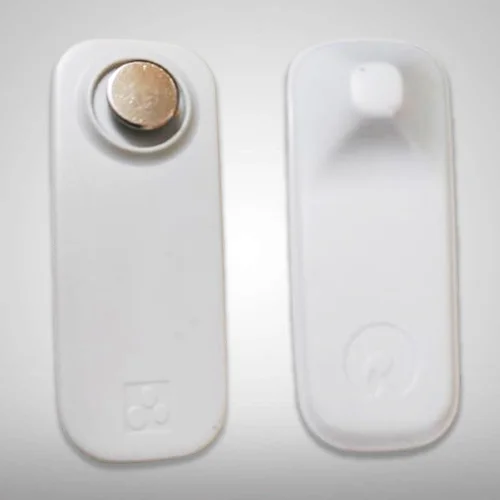

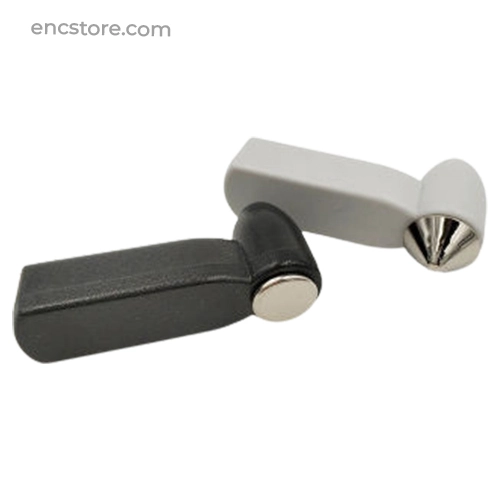

Reusable, Lightweight, Ultra High Frequency(865–867 MHz), RFID Pencil Sensor Hard Tag, 51mmx 13mm, suitable for Retail Security, Garment and Footwear Showrooms

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 3m
Chip Type: Impinj Monza 4QT
EPC Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

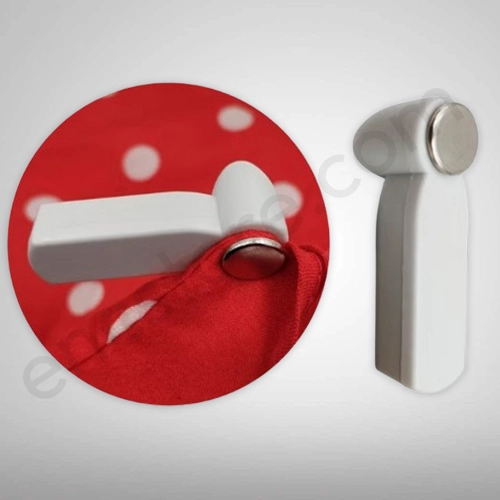

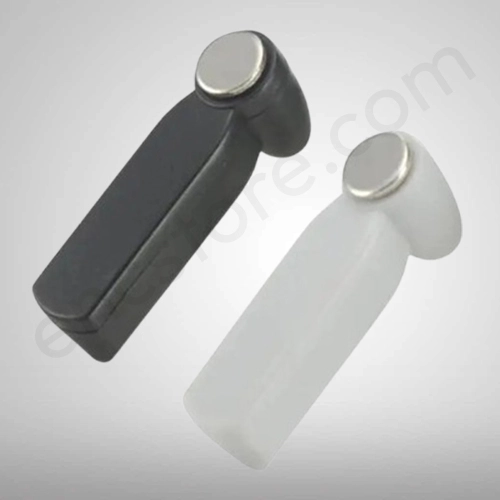

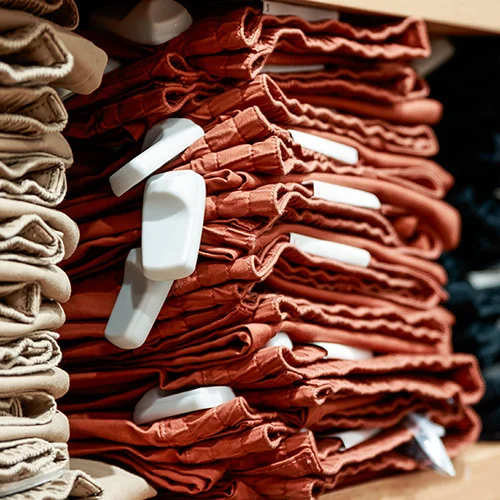

UHF RFID Pencil Sensor Hard Tags are small, flat devices that can be attached to garments. These tags are lightweight, durable, and reusable and require a strong super lock magnetic detacher for pin removal. They contain a unique RFID chip that can be read by an RFID reader, allowing for the tracking and identification of garments. A pencil tag can be used multiple times and helps the improvement of store operations, the security of products, and the enhancement of the consumer experience.

Application

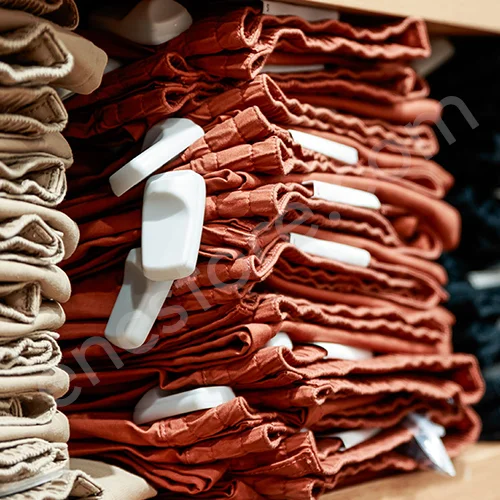

• Garments and Footwear Showroom,

• Leather Goods and Stores,

• Sports equipment and soft toys,

• Books and office equipment,

• Retail Stores

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 3m
Chip Type Impinj Monza 4QT
EPC Memory 128 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 10 Years
Tag Material ABS
Tag Size 51mm(L) x 13mm(W)
Applicable Surface Clothing
Attachment /Mounting Method Fix with pin
Weight 3g
Operating Temperature -20°C to +80°C
Storage Temperature -40°C to +80°C
IP Ratings IP54
