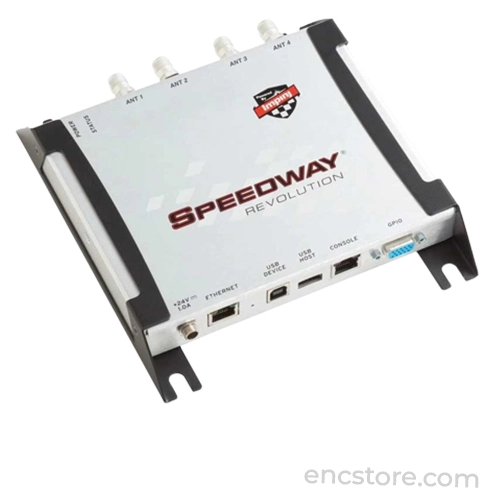

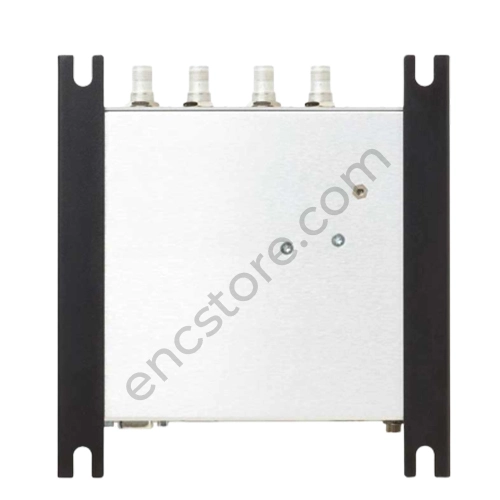

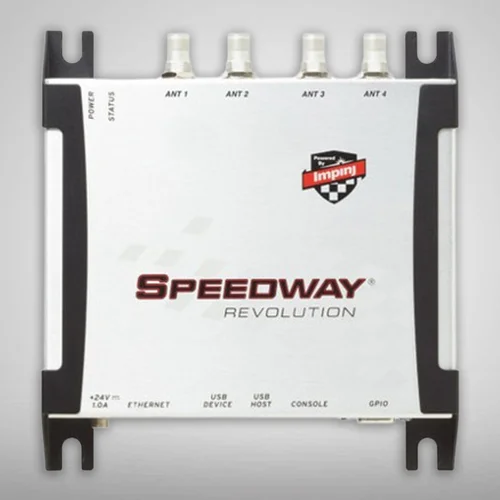

IMPINJ Speedway Revolution R420 UHF RFID Reader (4 Port)

Long Read Range UHF/Passive RFID Reader, 4 Antenna Ports, Ethernet, USB, 802.3af PoE & PoE+, Receive Sensitivity: -84 dBm, EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)

Check Availability
Features
Communication Protocol: GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: UHF (860 - 960 MHz), region dependent
Transmit Power (POE): +10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power): +10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Receive Sensitivity: -84 dBm
Enquire Now

IMPINJ Speedway Revolution R420 UHF RFID Reader (4 Port) delivers the performance, quality, and reliability necessary for maximum visibility of tagged inventory and assets. Speedway readers are a strong component of item accessibility platform solutions, able to maintain high read rates in conditions of RF noise or interference as the readers adjust automatically for optimal functionality.

The R420 Rain RFID Reader is a high-performance, multi-port UHF RFID reader designed to meet the needs of the most demanding RFID applications. It features four external ports with up to four antennas each, providing up to 16 simultaneous RFID reads. The long-range RFID reader supports a wide range of frequencies, from 860 to 960 MHz, and can be used to read tags in a variety of formats, including EPCglobal Gen2, ISO 18000-6C, and ISO 18000-6B. Its advanced features include support for multiple tag types, integrated filtering, adjustable power output, and integrated encryption.

Application

• Retail Inventory Management

• Medical Equipment Tracking

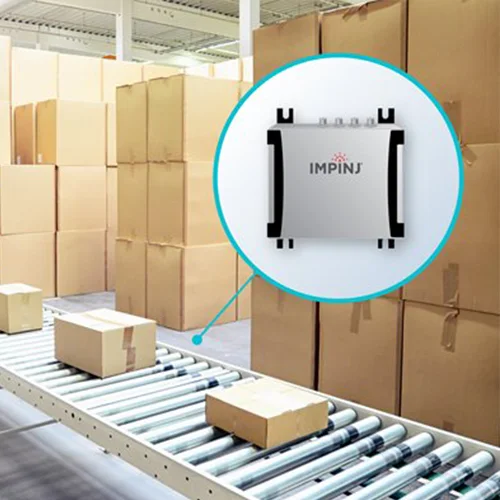

• Logistics and inventory tracking

• Manufacturing and production

• Asset Tracking

• Other Industries

Specifications
Communication Protocol GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency UHF (860 - 960 MHz), region dependent
Transmit Power (POE) +10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power) +10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Receive Sensitivity -84 dBm

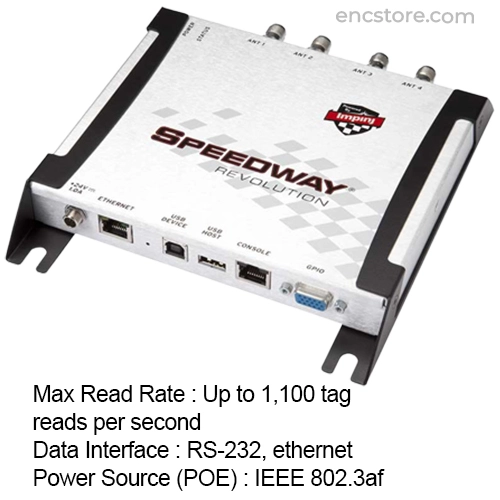

Max Read Rate Up to 1,100 tag reads per second
Data Interface RS-232, ethernet
GPIO 4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE) IEEE 802.3af
Power Source (External DC Power) Listed/Certified power supply, AC-DC power supply rated for 24Vdc/2.1A MECHANICAL
Dimensions 190.5 x 175.3 x 30.5 mm
IP Rating IP 52
Operating Temperature -20 ºC to +50 ºC

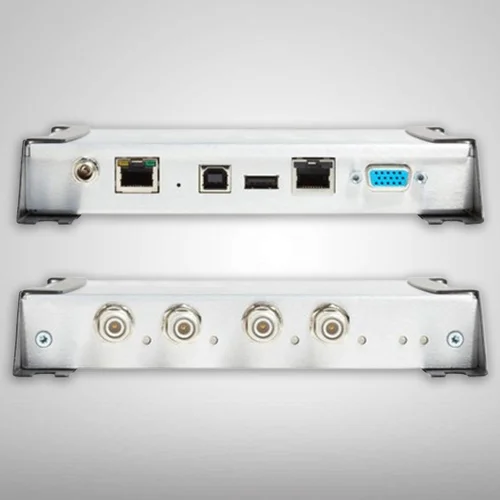

Antenna Port 4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj Speedway Antenna Hub
