UHF RFID Anti Metal Hard Tag

Applicable on Metal Surface, Frequency: 865–867 MHz, Passive RFID Anti-Metal hard tags for Tool Tracking, Asset Tracking, Industrial Application

Check Availability
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 15m
Chip Type: Impinj Monza R6
EPC Memory: 128 Bits
Enquire Now

UHF RFID Anti metal Hard Tags operate effectively with excellent read range & rough construction with high durability on metallic objects, these tags are available in both High Frequency (HF) and Ultra-High Frequency (UHF). RFID tag is attached on the back side of the surface. These tags use a special type of inlay which is designed to read signals even when the item is in contact with a metal surface. The tags are also designed to be durable and withstand harsh environmental conditions, such as extreme temperatures, water, and dust. They are available in a variety of sizes and shapes to meet the specific requirements of the application.

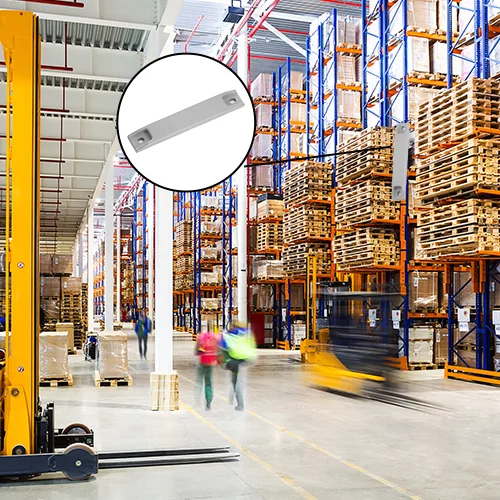

Application: Asset Tracking, Pallet Tracking, Logistics & Supply-Chain Visibility, Tools & Equipment in a Factory, Plants & Machinery

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 15m
Chip Type Impinj Monza R6
EPC Memory 128 Bits
Tag Material ABS

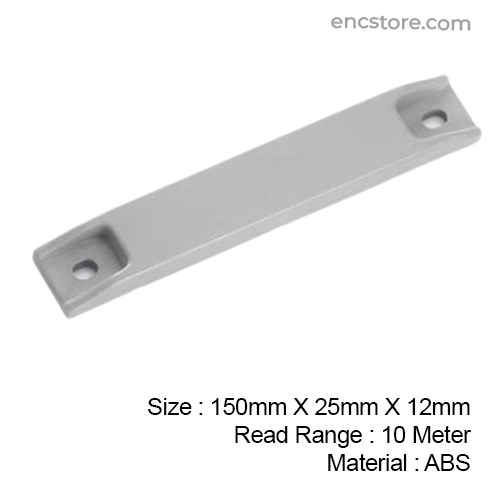

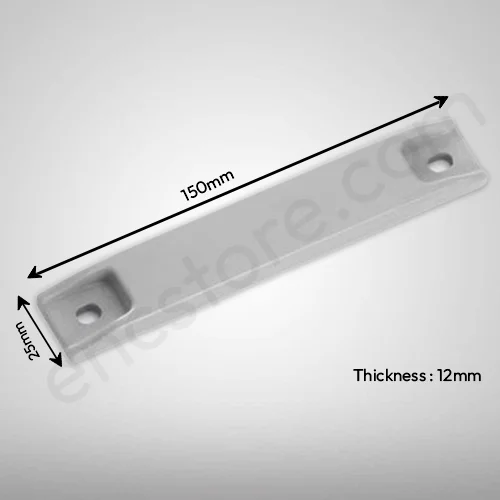

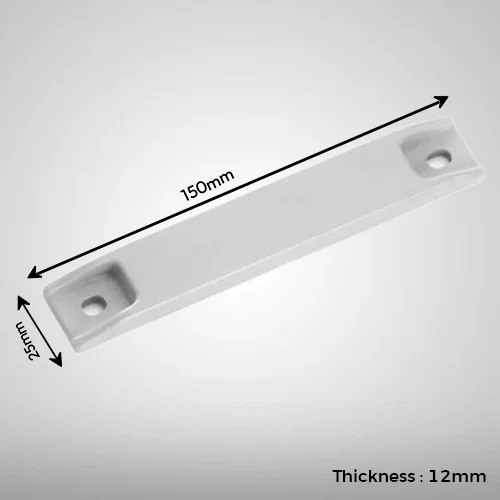

Tag Size 150mm(L) x 25mm(W) x 12mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
