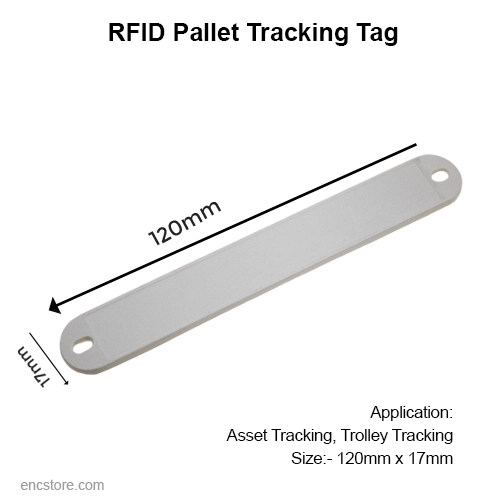

Ultra High frequency, 865–867 MHz, Plastic Material RFID Pallet Tags, Reading Range: upto 10m, suitable for Pallet Tracking, Asset Tracking

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 10m
Chip Type: Alien Higgs 3
EPC Memory: 512 bits
Enquire Now
Be the first to review this item
 Write a review

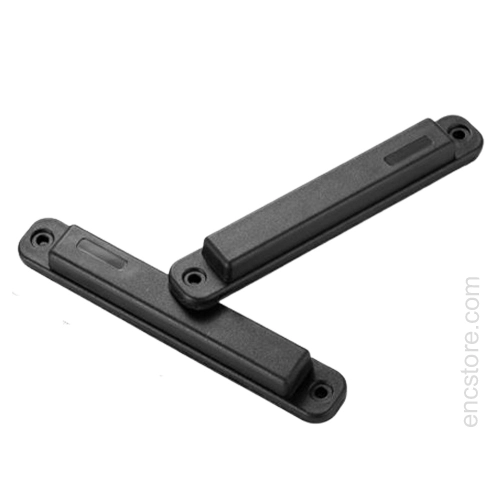

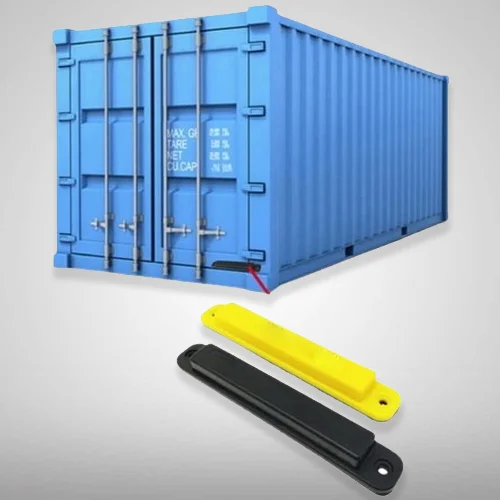

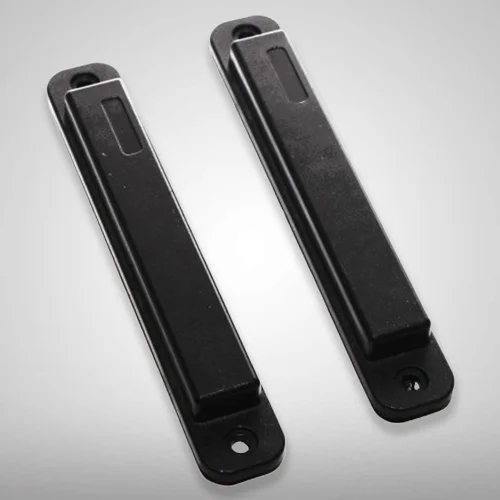

UHF RFID pallet and container tracking tags are designed for the tracking of large cargo containers, pallets, and other large items. These tags utilize UHF (Ultra High Frequency) RFID technology and are designed to be attached to containers, pallets, and other cargo containers. UHF RFID pallet and container tracking tags are often used in logistics and supply chain management in order to track the movement of goods from one location to another. These tags are also used to monitor the condition of the cargo and to provide real-time updates on the location of the cargo. UHF RFID pallet and container tracking tags are durable and can withstand the harsh conditions of the shipping industry. They are also waterproof and can be read from a distance, making them ideal for tracking large items.

Application

• Pallet identification & Tracking,

• Non-Metallic Asset Tracking,

• Logistics and Warehouse Management,

• Plant and Machinery,

• Trolley Tracking,

• Wooden and plastic asset tracking

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 10m
Chip Type Alien Higgs 3
EPC Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material PCB
Tag Size 135mm(L) x 22mm(W) x12 mm(T)
Applicable Surface Plastic, Wood, or Metal
Attachment /Mounting Method Adhesive or Screw
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP67
