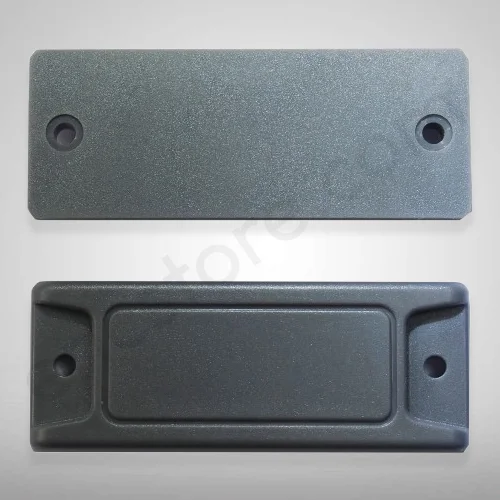

Black Passive RFID Pallet Tag, Size: Small, for Asset Tracking, Tool Tracking, Industrial Application

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 10m
Chip Type: Impinj Monza 4QT
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

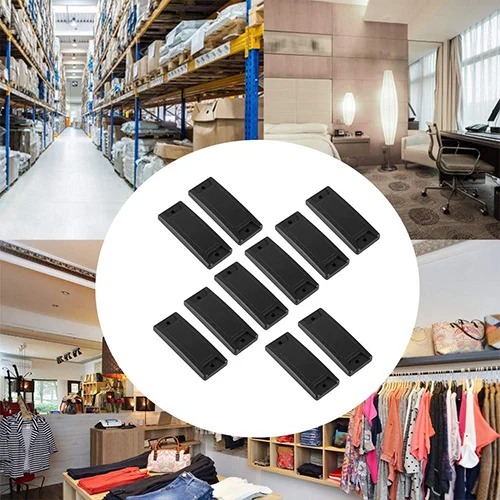

UHF RFID black mini pallet tags are a type of RFID tag that is designed to be attached to pallets for identification and tracking purposes. The tags are small in size and typically feature a black plastic casing with an embedded UHF RFID chip. This chip contains a unique identifier that can be read by a compatible RFID reader. The tags are typically used to track the movement of pallets in warehouses and distribution centers, allowing companies to better manage their inventory and reduce the potential for loss or theft. Additionally, they can be used to automate the checking-in and checking-out of pallets to reduce manual data entry.

Application

• Pallet identification & Tracking,

• Non-Metallic Asset Tracking,

• • Logistics and supply chain management,

• Plant and Machinery, Trolley Tracking,

• Wooden and plastic asset tracking

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 10m
Chip TypeImpinj Monza 4QT
EPC Memory96 bits
User Memory512 bits
Write Cycle Endurance100,000 cycles
Data Retention50 Years
Tag MaterialABS

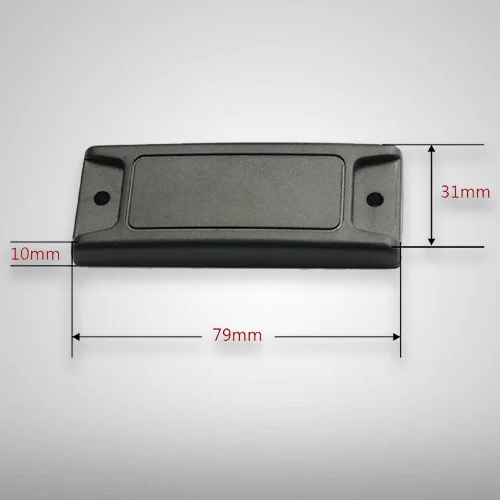

Tag Size79mm(L) x 31mm(W) x 10mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive or Screw
Operating Temperature-20°C to +85°C
Storage Temperature-20°C to +85°C
IP RatingsIP67
