Ultra High frequency, 865–867 MHz, RFID Pallet tag, 120mmx17mm (White), Reading Range: upto 10m, for Asset Tracking, Pallet Tracking

Check Availability
Write a review
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 10m
EPC Memory: 96 bits
User Memory: 512 bits
Enquire Now
Be the first to review this item
 Write a review

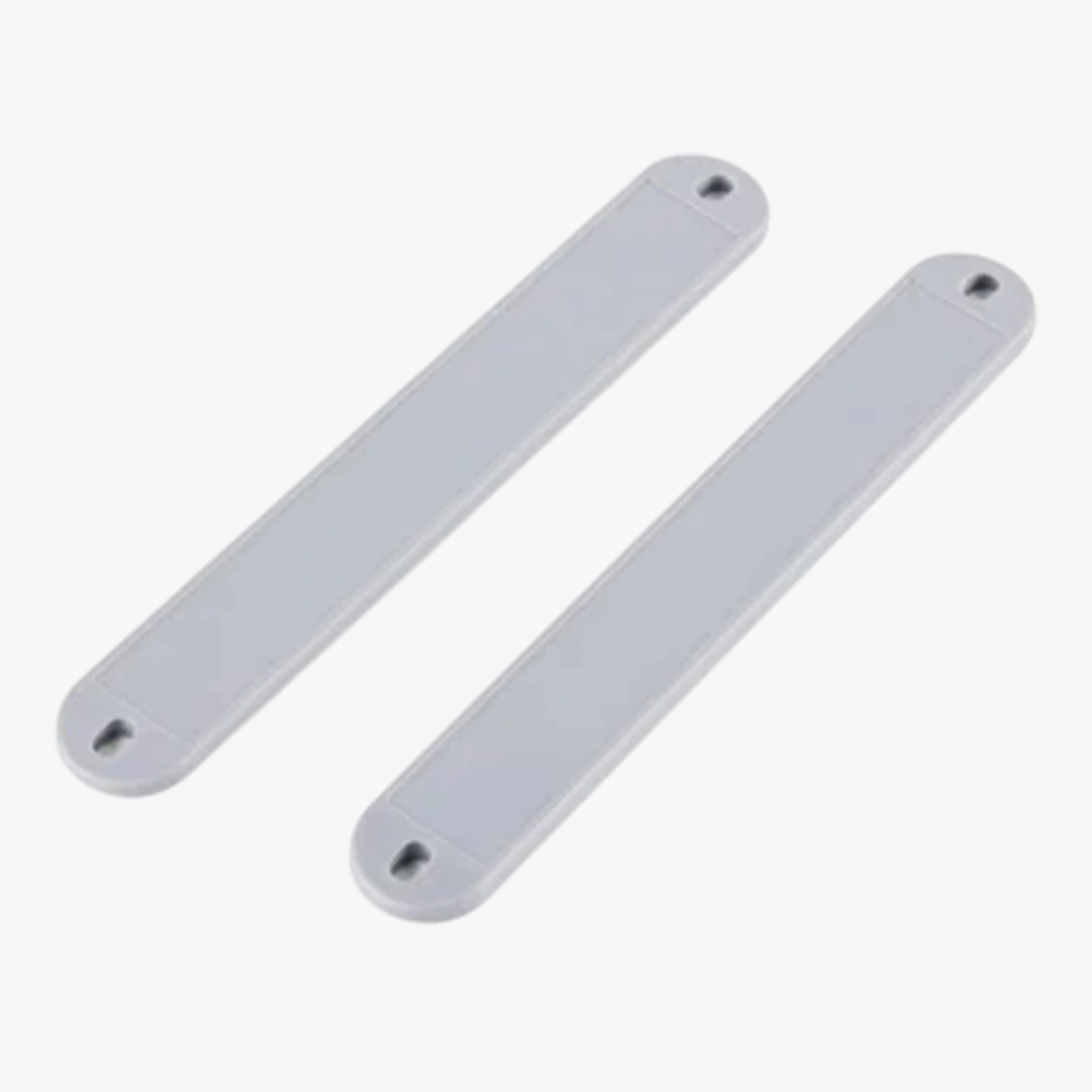

A Long Range UHF RFID Pallet Tracking Tag is a type of radio-frequency identification (RFID) tag that is designed to track pallets in a warehouse or retail environment. It is typically attached to a pallet or container and contains a unique identifier that can be read by an RFID reader from a distance of up to several meters. The tag can be programmed to store information about the pallet including its contents, location, shipping information, and more. This allows for easy and efficient tracking of pallets throughout the supply chain.


• Non-Metallic Asset Tracking,

• Pallet Identification,

• Asset/Tool Tracking,

• Logistics and Warehouse Management,

• Plant and Machinery,

• Trolley Tracking.

Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 10m
EPC Memory 96 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material ABS

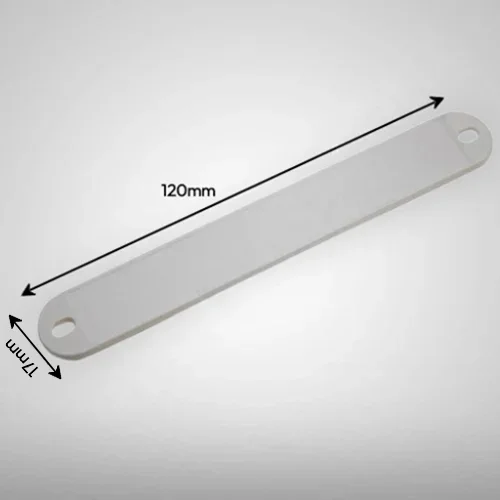

Tag Size 120mm(L) x 17mm(W)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP67
