Reusable, Lightweight, Waterproof RFID Pallet Tags, Size:103mm × 26mm , Frequency: 865–867 MHz, suitable for Pallet Tracking, Tool Tracking

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 5m
EPC Memory: 96 bits
Write Cycle Endurance: 100,000 cycles
Enquire Now
Be the first to review this item
 Write a review

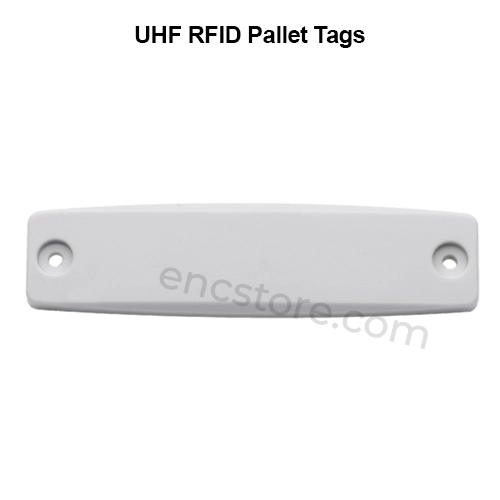

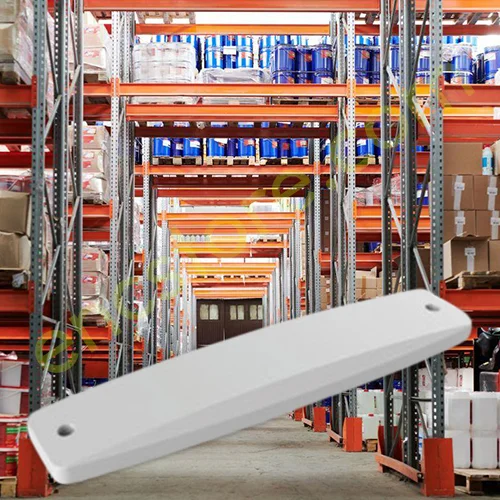

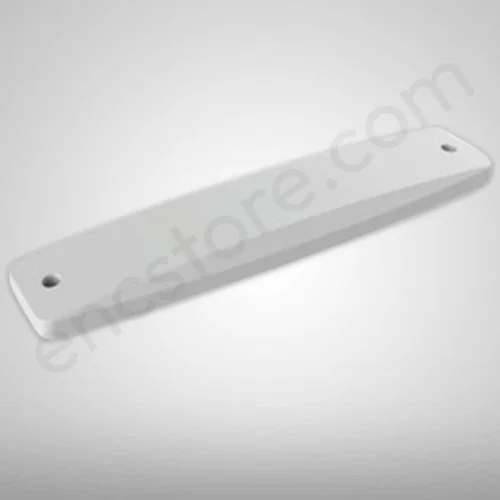

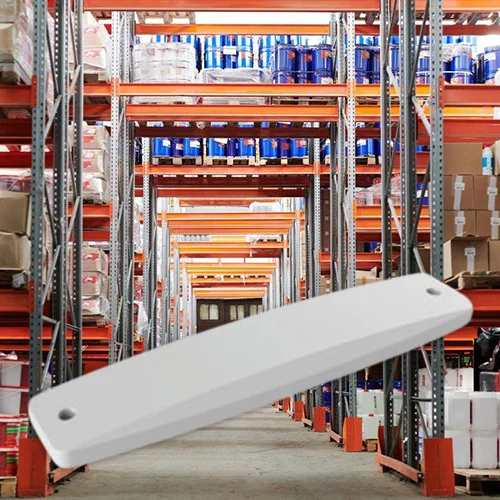

UHF RFID waterproof, rugged pallet tags are special tags designed for use on pallets and other large items that are moved throughout a warehouse or distribution center. These tags use UHF (Ultra High Frequency) radio frequency identification technology to store and transmit data, making them a great tracking and identification solution for the supply chain management. UHF RFID pallet tags are typically larger than traditional RFID tags and can be read from a greater distance. They also offer a longer read range, making them ideal for applications where tracking large items over long distances is required.

ABS waterproof RFID pallet tag is widely used for obtaining pallet data and warehouse management with a read range of over 10m when attached to plastic, wooden pallets, and metal surfaces. It performs extremely well in the field of reading and writing on non-metal items. These tags can be mounted with screws or by using the adhesive backside.

Applications

• Logistics and supply chain management

• Inventory and asset tracking

• Waste management

• Automotive industry

• Manufacturing industry

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 5m
EPC Memory 96 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material ABS

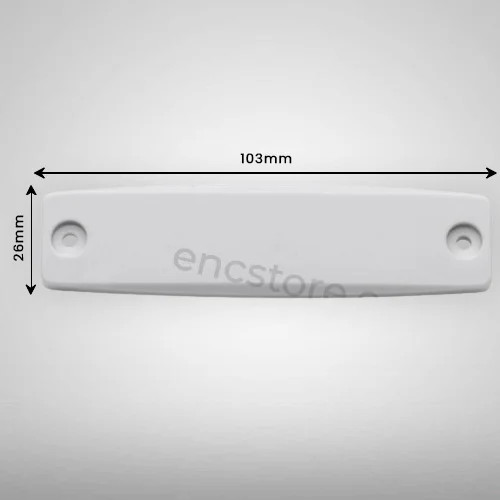

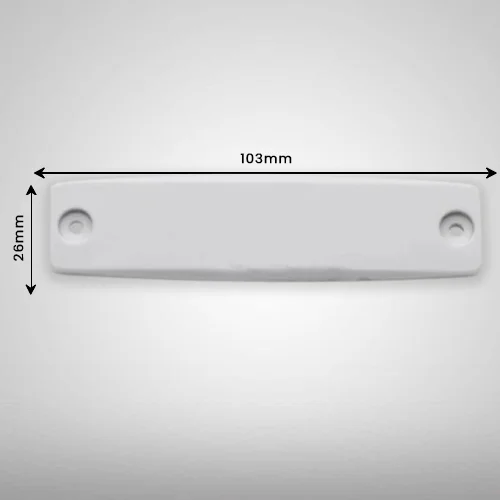

Tag Size 103mm(L) × 26mm(W)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
