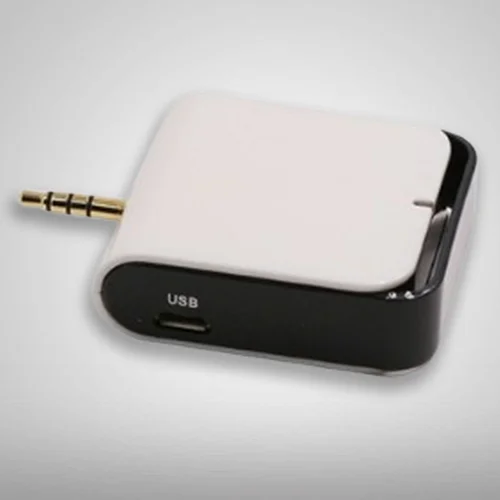

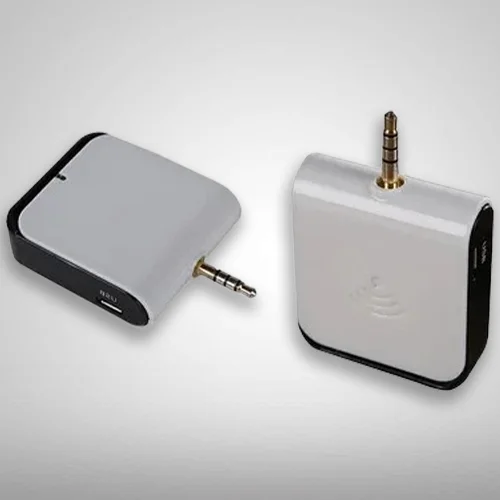

3.5mm Portable Mini Audio Jack UHF RFID Reader

Ultra High Frequency, 865–867MHz, 3.5mm audio jack connector, Plug and play mobile card reader, suitable for NFC electronic tag reading and writing,capital equipment inventory

Check Availability
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Interface: 3.5mm audio jack
Working hours: Continuous work for 4 hours
Dimension: 48 × 42 × 15 mm
Enquire Now

The 3.5mm Portable Mini Audio Jack UHF RFID Reader is a small and lightweight UHF RFID reader designed for use with mobile phones, tablets, and other handheld devices. Its miniature form factor makes it easy to carry and deploy, while its 860-960MHz operating frequency allows it to read both passive and active RFID tags. Audio Jack Reader can be easily connected with any smart device running on iOS, Android, and Windows through its 3.5mm audio jack connector and also known as plug-and-play mobile card reader. They are low in cost, and easy to carry anywhere or anytime.

Application

• Retail & POS automation

• Access control & time attendance

• Automotive Production

• Healthcare

• Supply chain management

Specifications
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
Interface 3.5mm audio jack
Working hours Continuous work for 4 hours
Dimension 48 × 42 × 15 mm
Read Distance Up to 0.5m, depending on tag
OS Supported iOS, Android & Windows
Battery capacity 550 mAH
Temperature range -20°C ~ +60°C
Material ABS + PC
Induction LED indication for charging, battery and reading
Usage/Application NFC electronic tag reading and writing, capital equipment inventory
