The Chainway R7 UHF RFID SLED Reader is a new advancement over the Chainway R6 Handheld reader, engineered for high-speed, high-accuracy RFID data collection in demanding environments. Built on the Impinj E-series chipset, the R7 provides superior read performance, enabling businesses to process large volumes of RFID tags quickly and reliably.
With a read rate of up to 1300 tags per second and a maximum read range of 30 meters (depending on tag type and environment), the R7 significantly reduces operational time and improves workflow efficiency. It supports EPCglobal Class 1 Gen 2 / ISO 18000-63 protocols, ensuring compatibility with global RFID standards.

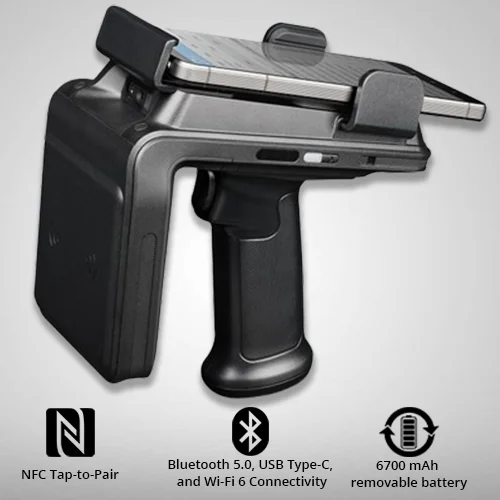

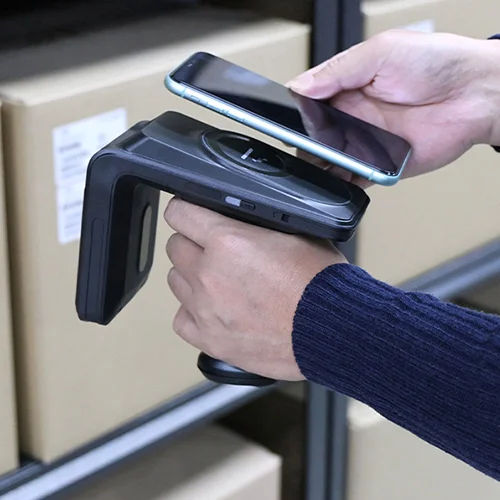

The device easily transforms your smartphone into a powerful RFID terminal via NFC tap-to-connect, while also offering Bluetooth 5.0, USB Type-C, and Wi-Fi 6 for flexible and stable connectivity across industrial applications.

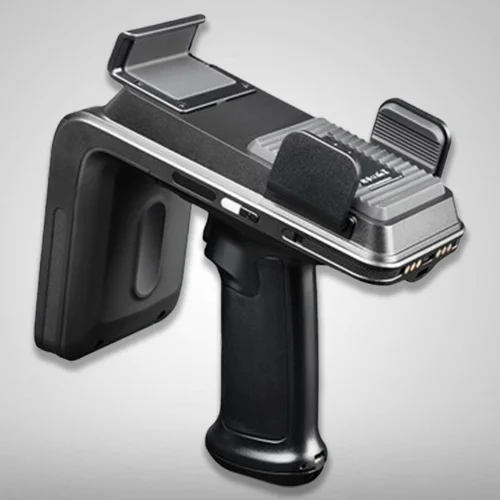

The R7 features an ergonomic sled design with a secure grip, making it comfortable for extended use in warehouse operations, retail floors, and field service environments. Its rugged construction ensures durability in industrial settings while maintaining ease of use.
EnCstore.com offers the Chainway R7 UHF RFID SLED Reader, as well as other Chainway Fixed, handhelds, and SLEDs at competitive pricing, along with expert support and tailored solutions for your business.
Key Technical Highlights of Chainway R7 RFID Handheld SLED
UHF RFID Performance in R7
1. Engine: Impinj E-series chipset
2. Frequency Bands:
a. India: 865-867 MHz (36 dBm)
b. FCC: 902–928 MHz (36 dBm)
c. EU: 865–867.6 MHz (35 dBm) / 915–921 MHz (36 dBm EIRP)
d. China: 920.5–924.5 MHz (35 dBm)
3. Protocol: EPCglobal Class 1 Gen 2 / ISO 18000-63
4. Output Power: 1–30 dBm (adjustable in 1 dB steps)
5. Read Rate: Up to 1300 tags/second
6. Max Read Range: Up to 30 meters (with Impinj M830 tags)
7. Antenna: Circularly polarized
Barcode Scanning (Optional)
• 1D: UPC/EAN, Code128, Code39, Code93, Code11, etc.
• 2D: QR Code, DataMatrix, PDF417, Aztec, MaxiCode, postal codes
Connectivity & Integration Options in R7
• NFC (Tap-to-connect)
• Bluetooth 5.0
• USB Type-C
• Wi-Fi 6
Chainway R6 VS Chainway R7: Why Buy the New Chainway R7
A major differentiator is connectivity. The Chainway R6 RFID Reader relies primarily on Bluetooth and USB Type-C, whereas the R7 introduces NFC tap-to-connect, Bluetooth 5.0, and Wi-Fi 6, enabling faster pairing, real-time data synchronization, and seamless integration with modern cloud-based systems. This makes the R7 a more versatile solution for businesses adopting IoT-driven inventory management and real-time asset tracking. Additionally, the R7 offers enhanced ergonomics and usability, designed for prolonged industrial use with improved handling and user comfort.
While both devices support EPCglobal Class 1 Gen 2 / ISO 18000-63 protocols and deliver long-range reading of up to 30 meters with comparable output power (up to 30 dBm), the R7 is built on a newer Impinj E-series chipset, Impinj Gen 2X supported, offering improved read stability, faster anti-collision processing, and more consistent performance in high-density RFID environments. |
