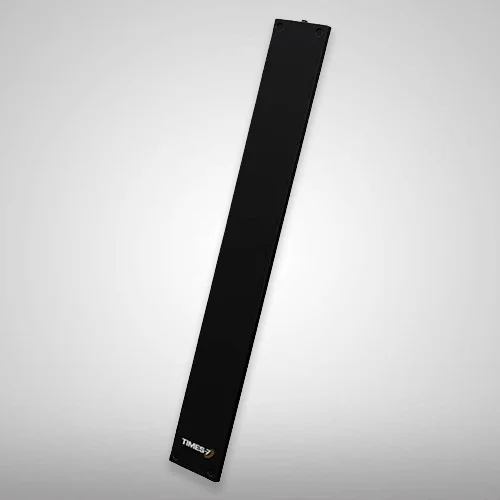

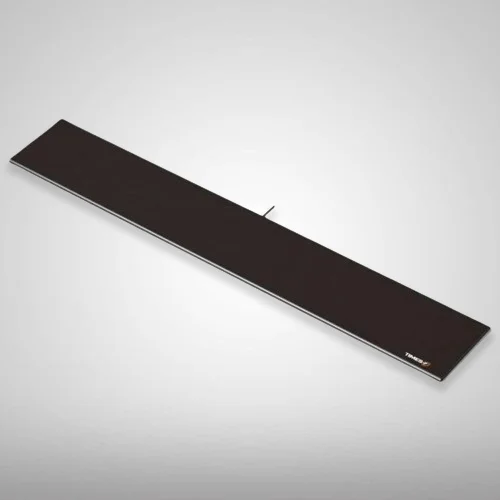

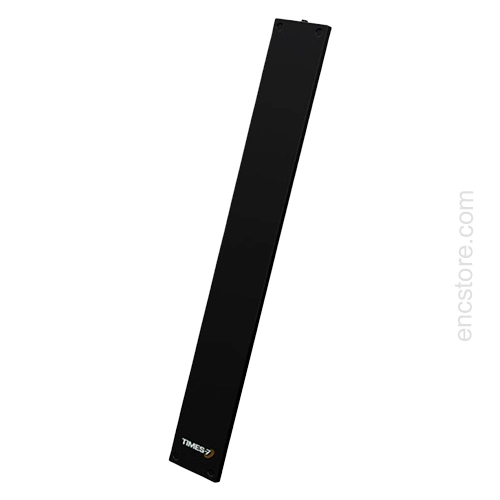

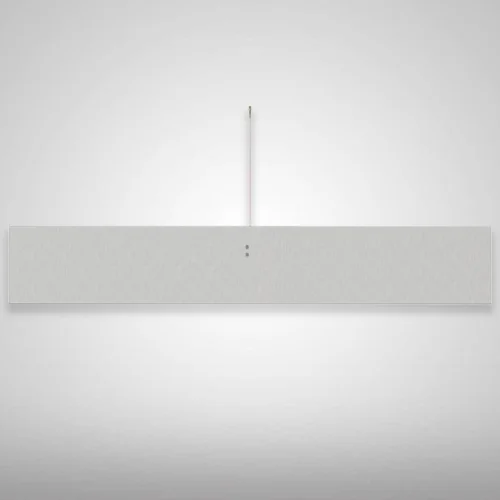

The Times-7 A5531-E Embedded Ground UHF RFID Antenna is designed for RFID applications that require operation at ground level without creating a physical obstruction. Its ultra-low-profile, heavy-duty construction allows it to be installed into concrete floors, making it suitable for locations where conventional above-ground RFID antennas are difficult to deploy. Times-7 describes the A5531-E as a robust embedded ground antenna designed to withstand moving vehicles and heavy point loads.
With 9.5 dBi gain and linear polarisation, the A5531-E Antenna by Times 7 is designed for reliable tag detection as people, vehicles, carts, or other assets pass over the antenna. It supports UHF RFID frequency bands used in both ETSI and FCC regions, while its reinforced construction makes it suitable for demanding industrial, logistics, retail, event, and access-tracking environments.
Looking for a UHF RFID embedded ground antenna for vehicle, people, race, or asset tracking? Explore RFID readers, antennas, tags, and accessories at EnCstore to build a complete RFID identification and tracking solution. We provide all types of RFID and barcode scanners, printers and labels PAN-India at industry best prices.
Key Features of Times-7 A5531-E RFID Antenna
- a. 9.5 dBi gain for reliable UHF RFID tag detection.
- b. Linear polarisation for ground-level RFID applications.
- c. Supports 865–867 MHz (ETSI) and 902–928 MHz (FCC) frequency bands.
- d. Ultra-low-profile embedded ground antenna design.
- e. Designed for installation into concrete floors.
- f. Heavy-duty construction for demanding environments.
- g. Reinforced composite housing for improved durability.
- h. Suitable for applications involving moving vehicles and heavy point loads.
- i. SMA female side fly-lead connector.
- j. 50-ohm nominal impedance.
- k. 3 W maximum input power.
- l. Typical VSWR of 2.0.
- m. DC-grounded anti-static protection.
- n. Suitable for long-term ground-level RFID deployments.
What are the Applications of the Times-7 A5531-E RFID Antenna?
- a. RFID vehicle tracking
- b. RFID access control
- c. RFID race timing
- d. RFID marathon and running events
- e. RFID people tracking
- f. RFID asset tracking
- g. RFID logistics tracking
- h. RFID warehouse movement tracking
- i. RFID cart and trolley tracking
- j. RFID parking and vehicle identification
- k. RFID event tracking
- l. RFID retail customer movement tracking
- m. RFID baggage and item tracking
Why Choose the Times-7 A5531-E RFID Antenna?
- a. Built for embedded installation: Designed to be integrated into concrete floors where a flush, ground-level RFID solution is required.
- b. 10 dBi gain: Provides strong UHF RFID performance for tracking moving tags.
- c. Heavy-duty design: Built for demanding installations involving vehicles and substantial point loads.
- d. Ultra-low profile: Keeps the antenna close to floor level without creating a significant physical obstruction.
- e. Ground-level tracking: Places the RFID read zone directly where people, vehicles, carts, or assets move.
- f. Wide application range: Suitable for logistics, industrial, retail, access, event, and tracking applications.
- g. ETSI and FCC support: Available for common UHF RFID regional frequency requirements.
- h. Reliable deployment: Designed for applications where traditional wall- or overhead-mounted antennas are not practical.
|
