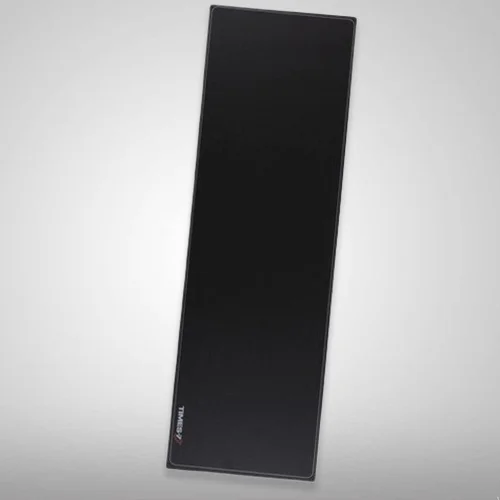

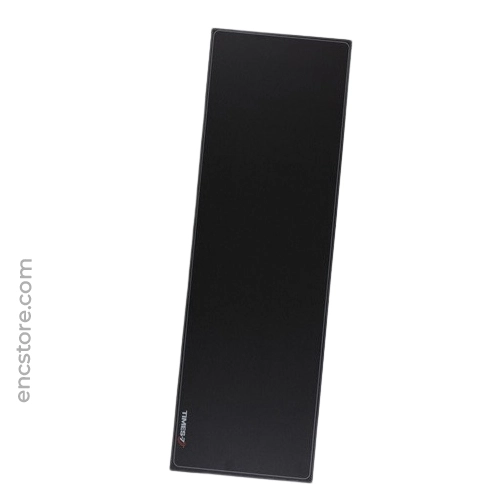

SlimLine A6590C UHF RFID Circularly Polarized Ground Antenna

9 dBiC antenna gain, Frequency: 865–867 MHz, 3W max input power, Right Hand Circularly Polarized Ground Antenna for race & event timing

Check Availability
Write a review
Features
Dimensions: 915 mm x 305 mm x 8 mm
Environmental Rating: IP65
Polarization: RHCP (Right Hand Circular Polarised)
Antenna Gain: 9 dBiC
Nominal impedance: 50 ohm
Enquire Now
Be the first to review this item
 Write a review

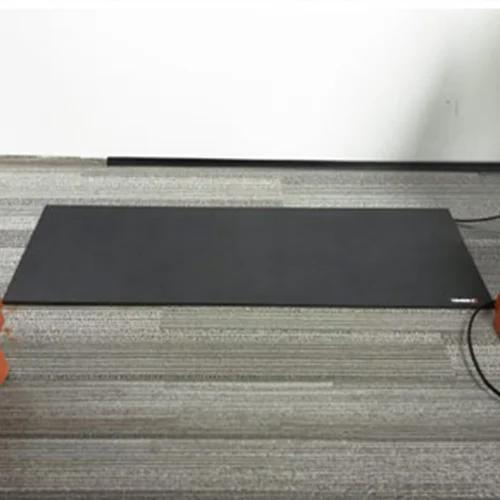

SlimLine A6590C UHF RFID circularly polarized ground antenna is suitable for applications where traditional side antennas are unsuitable or not optimized for the application. It is uniquely capable of lying flat on the ground within a doorway sized footprint. Ground antenna are especially designed to support moderate loads, such as hand trolleys and carts with rubber wheels, runners, bicyclists, and occasional vehicular traffic with pneumatic tires, etc.

Applications: Conference attendee & people tracking, retail marketing, race & event timing.

Specifications
Dimensions 915 mm x 305 mm x 8 mm
Environmental Rating IP65
Polarization RHCP (Right Hand Circular Polarised)
Antenna Gain 9 dBiC
Nominal impedance 50 ohm
Maximum Input Power 3 W
Connector type SMA Female side fly lead (300 mm / 1 ft.)
Operating Temperature -20° to +55°C
Storage Temperature -30° to +65°C
