Ultra high frequency, 865-867 MHz, Small and lightweight design, RFID mount on-metal tag, Size:6mm x 6mm, High quality, High Performance, IP Rating-68

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 10m
Chip Type: NXP Ucode 8
EPC Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

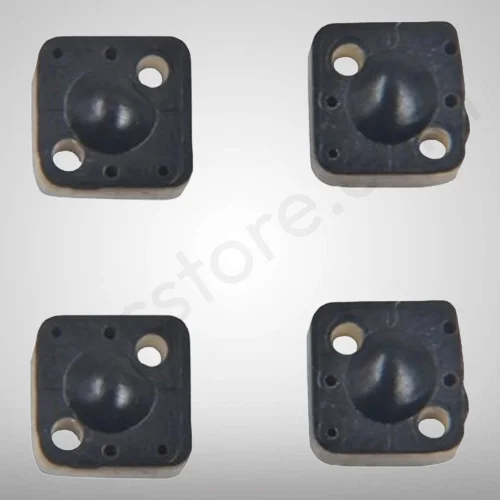

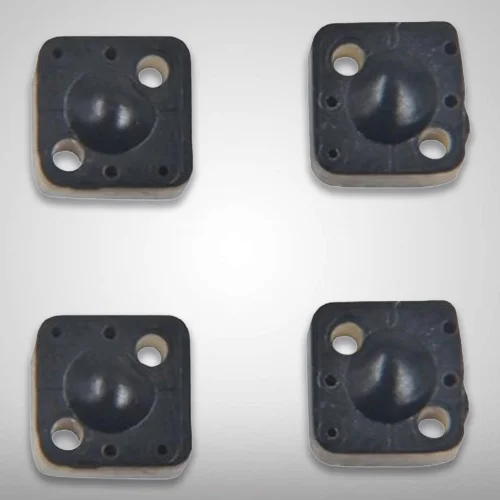

A small UHF RFID PCB on-metal tag is a compact and lightweight tag designed for use in harsh industrial environments. It is typically made of a durable plastic material and features an integrated PCB embedded into the tag which contains the RFID antenna. The tag is designed to be mounted directly onto metal surfaces and has strong adhesive backing for easy installation. It is ideal for tracking and identifying items in industrial environments, such as tracking parts, tools, and other assets. The tag is waterproof and resistant to impact and vibration, making it highly reliable in a wide range of applications. The tag also features a long read range and a high read rate, making it efficient and cost-effective.

Application

• Asset Management

• Container Tracking,

• Tool Tracking,

• Logistics,

• Warehouse Storage Rack etc

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 10m
Chip TypeNXP Ucode 8
EPC Memory128 bits
User Memory512 bits
Write Cycle Endurance100,000 cycles
Data Retention10 Years
Tag MaterialFR-4
Tag Size6mm(L) x 6mm(W) x 3mm(D)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive or Screw
Weight2g
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +150°C
IP RatingsIP68
