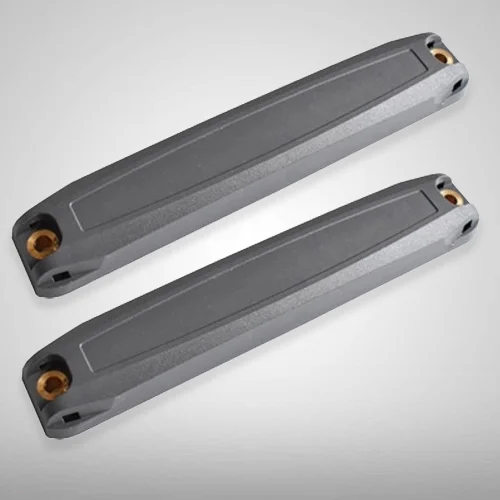

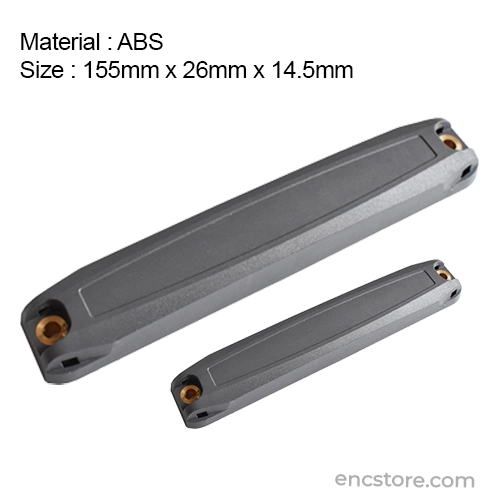

ABS UHF RFID Anti-Metal Tag

Ultra high frequency, 865-867 MHz, On-Metal UHF RFID Tag, Read range upto 16m, IP Rating-55, Suitable for Asset Tracking

Get Latest Price
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Material: ABS
Size: 155mm x 26mm x 14.5mm
Read Range: Up to 12m (On-Metal), Up to 16m (Off-Metal)
Enquire Now

ABS UHF RFID Anti-Metal tags are designed to be used on metal surfaces. They can be used to track assets and monitor inventory in warehouses, hospitals, and industrial sites. These tags are made of ABS plastic and are waterproof, dustproof, and can withstand harsh environments. They feature an integrated chip and antenna that allows them to transmit data over long distances. The tags have a read range of up to 12 meters(On-Metal), and up to 16 meters (Off-Metal) and can be read by RFID readers. They are ideal for tracking high-value assets, such as medical equipment, industrial tools, and other items.

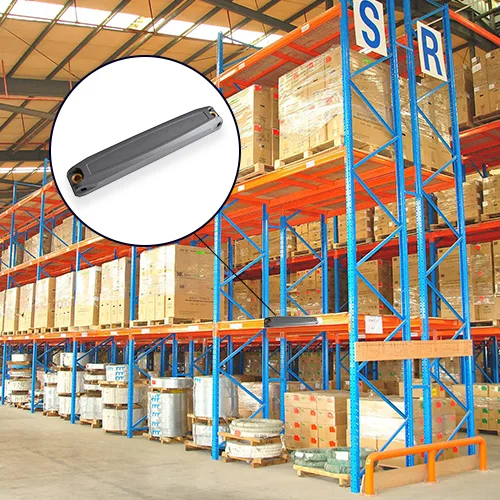

Application: Asset Tracking, Tool Tracking, Pallet Tracking, Warehouse Storage Rack, Manufacturing, Container Tracking, etc

Specifications
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol ISO 18000-6C EPC Clas 1 Gen 2
Material ABS
Size 155mm x 26mm x 14.5mm
Read Range Up to 12m (On-Metal), Up to 16m (Off-Metal)
IP Rating IP55
Operating Temperature -35° to + 85°C
Attachment Method Screw or Rivet
Pattern Plain
Installation Type Fixed
