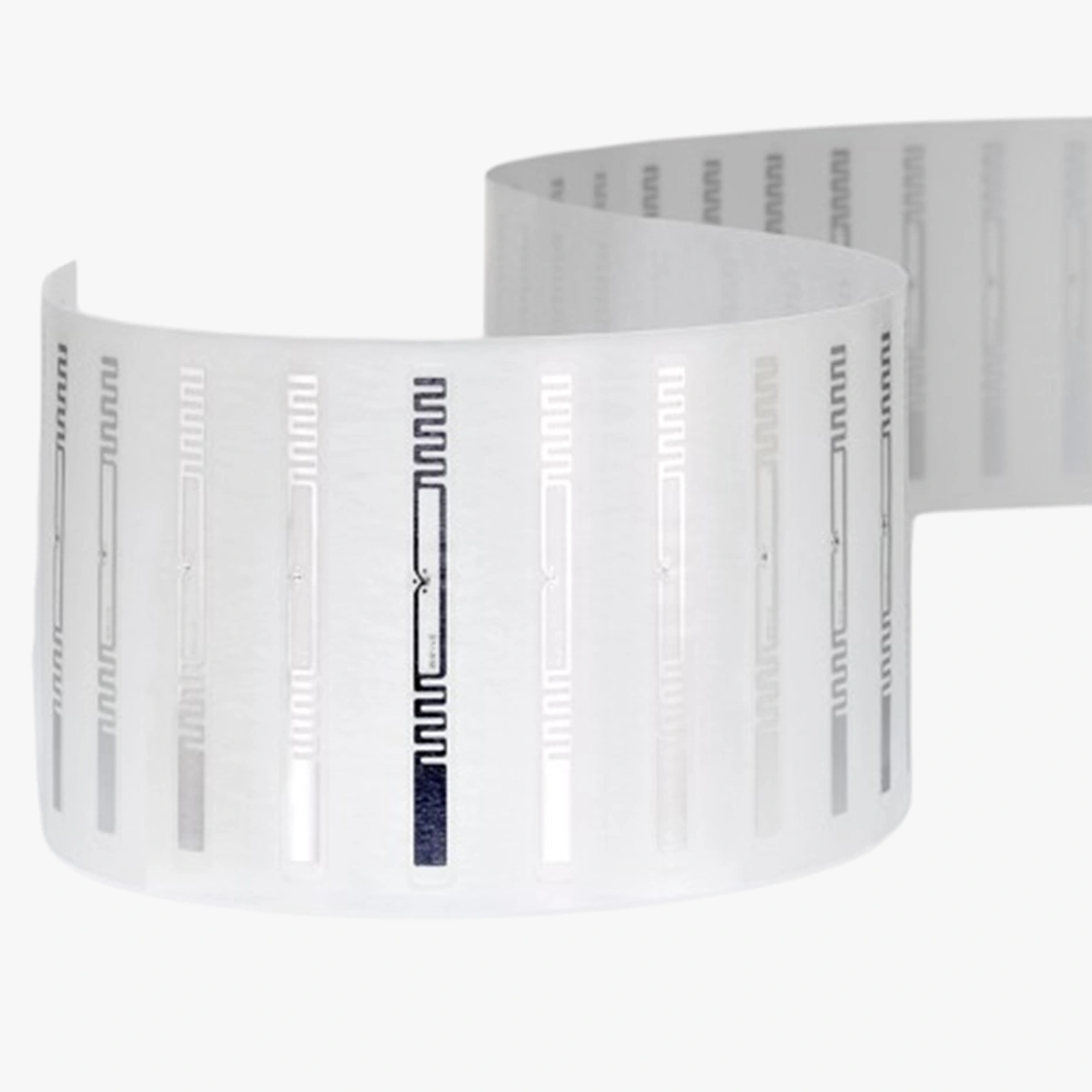

The AD-164U9 UHF RFID Wet Inlay with NXP UCode9 offers a 7m read range, 60x4mm size, operates at 865-867MHz, and is ideal for high-performance tracking in pharmaceutical, houseware, and personal care.

Write a review
Features
Brand: AD Corp
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Chip Type: NXP UCode 9
EPC Memory: 96 bits
User Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

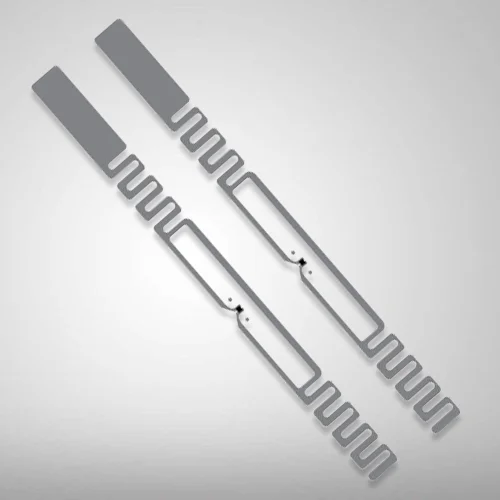

Get the AD-164U9 UHF RFID Wet Inlay by global RFID inlay manufacturing brand Avery Dennison. These RFID inlays are specially designed with a small form factor of 60mm x 4mm (Antenna) and can be easily used on pharmaceuticals, small liquid bottles, and plastic items in cosmetics, beauty and personal care, healthcare, etc.

The AD-164u U9 features the NXP UCODE 9 chip that is equipped with EPC memory of 96 bits including a 96-bit Tag Identifier (TID) with a 48-bit unique serial number factory-encoded into the TID. The RFID inlay offers great performance even with high dielectric materials such as glass, plastics, and liquids.

EnCstore offers AD-164u U9 RFID inlays that are ARC certified and follow the ISO 18000-63, EPCglobal gen2 V2 protocol, effectively being read by various handheld and fixed RFID readers. These inlays are available in dry and wet inlay forms and offer up to 7m of read range in challenging environments.

Apart from UHF AD-164u U9 RFID inlays, we also offer smartrac dogbone labels for bib, race time tracking, and other dogbone inlays. You can get Avery Dennison RFID labels and inlays by visiting our RFID catalog at EnCstore.com. We offer pan-India delivery on all our RFID and barcode products including scanners, tags, and printers.



Applications of AD-164u U9 RFID inlays

• Healthcare and pharmaceuticals

• Beauty and personal care

• Houseware item tagging and tracking

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Chip TypeNXP UCode 9
EPC Memory96 bits
User Memory96 bits
TID Memory96 bits
Tag MaterialWet Inlays/Paper Label/Polyester Label
Antenna Size60mm(L) x 4mm(W)
Die cut dimensions64mm(L) x 6mm(W)
Applicable SurfaceGlass, Plastic, Wood, Cardboard
Attachment /Mounting MethodAdhesive
Operating Temperature-40°C to +85°C
