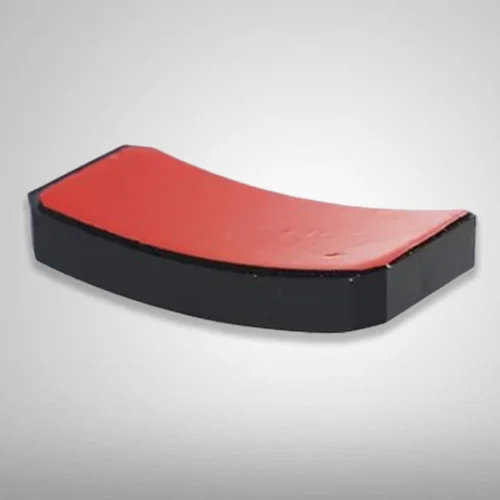

UHF RFID Gas Cylinder Tag

Ultra High Frequency, 865–867 MHz, black rfid gas Cylinder Tag , Size: 62mm x 32mm, for electronic equipment, asset maintenance, gas cylinders

Get Latest Price
Features
Operating frequency: 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Material: ABS
Read distance: up to 8m (reader dependent)
Memory: chip dependent
Enquire Now

RFID gas cylinder tag usually used on the curved surfaces. They use strong self-adhesive glue to stick on any kinds of metal gas cylinder, electronic equipment, Widely used in the various types of cylinder data information automatic tracking and management, but also can be applied to dangerous canned gas liquid logistics identification tracking.

Applications: Gas cylinder, Elevator maintenance, Auto parts, High pressure boiler/ vessel,High pressure pipeline,Lifting machinery etc

Specifications
Operating frequency 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol ISO 18000-6C EPC Clas 1 Gen 2
Material ABS
Read distance up to 8m (reader dependent)
Memory chip dependent
IP rating IP68
Size 62mm x 32mm
Thickness 10mm
Operating temperature -40°C to +85°C
Storage temperature -40°C to +85°C
Mounting adhesive, Magnets
Customization logo, serial number, color
Application Car cylinders, industrial cylinders, household cylinders,etc
