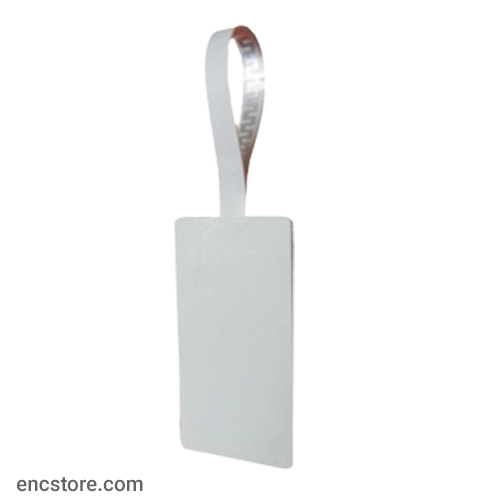

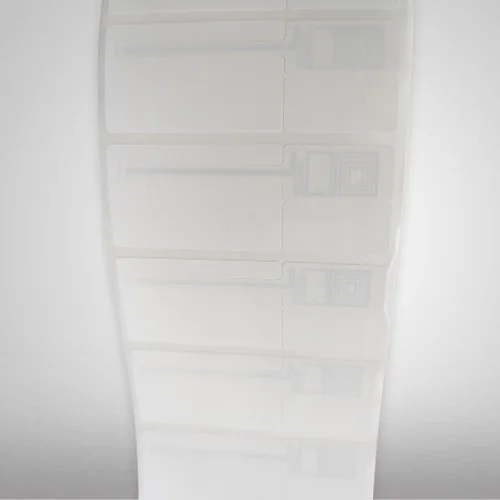

Ultra High Frequency 865–867 MHz, RFID Polyester Jewellery Tag, Size: 69mm x 26mm, Lightweight, Water Proof, Suitable for Jewellery Management, Cosmetics

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 15m
Chip Type: Impinj Monza R6-P
EPC Memory: 96 bits/128 bits
Enquire Now
Be the first to review this item
 Write a review

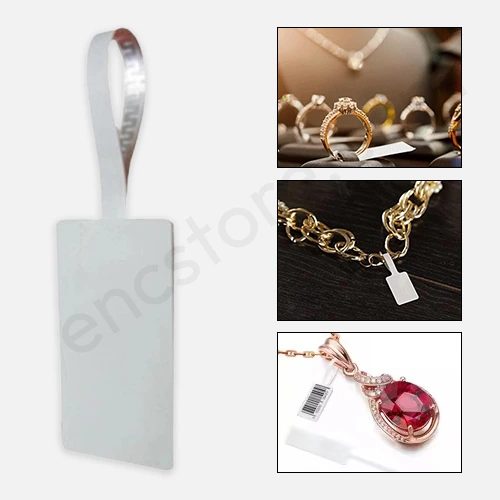

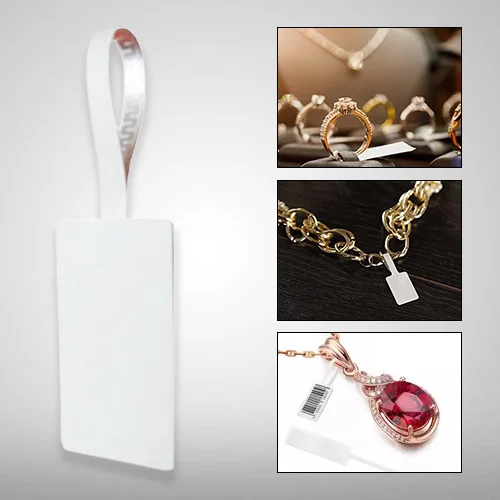

UHF RFID Polyester Jewellery Tags work for a wide range of jewelry and other ornaments for tracking and identification for smooth flow and working. These RFID jewllery tags can be read without any disturbance and intervention in reading due to some external product. Using tags for jewellary tracking that are specifically calibrated to the materials you need to track make reading, tracking, and inventorying them easier and provides for greater read range.

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 15m
Chip Type Impinj Monza R6-P
EPC Memory 96 bits/128 bits
User Memory 64 bits/32 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material PET/Aluminum Foil

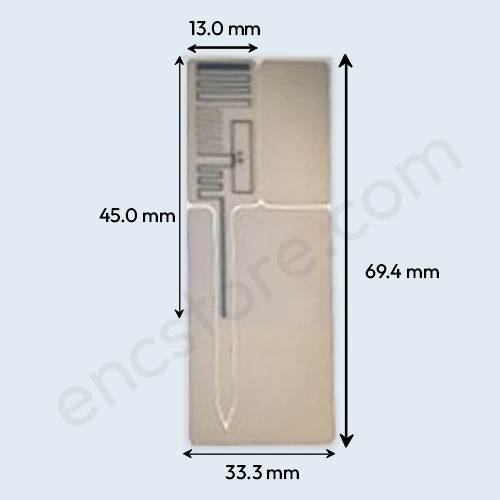

Tag Size 69.478mm(L) X 26mm(W)
Antenna Size 64mm(L) X 10.7mm(W)
Applicable Surface Jewellery
Attachment /Mounting Method Adhesive
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP67
