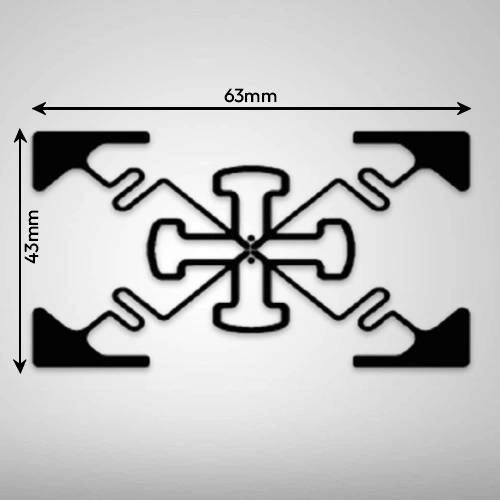

M4 UHF RFID Dry Inlay

Ultra High Frequency (865-867 Mhz), Size: 63mm x 43mm, Read Range upto 10m, High performance, Suitable for Retail Management

Check Availability
0 reviews
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 3m
Chip Type: Impinj Monza 4E/ 4QT
EPC Memory: 496 bits/128 bits
Related Products
UHF RFID 9640 Wet Inlays Tags, Alien Higgs9, Size: 98mmx12mm
UHF Long Range RFID Dry Inlay Tag
UHF RFID Dry Inlay And Labels
Dogbone RFID Bib Tags for Race Timing System
R6/R6-P RFID UHF Dry Inlay
Enquire Now
Be the first to review this item
 Write a review
M4 UHF RFID Dry Inlay is a passive UHF RFID inlay with a chip size of 63mm x 43mm. It is designed for use in retail, libraries, and tracking assets applications. It has a small form factor, good speed, and is inexpensive. This RFID inlay has a read range of up to 3m and can be used in a variety of applications from item-level tagging to container tracking. It is made up of an antenna and an RFID chip that is embedded in a paper-thin base. The embedded chip saves information such as an object's name, position, and other relevant data.
Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 3m
Chip Type Impinj Monza 4E/ 4QT
EPC Memory 496 bits/128 bits
User Memory 128 bits/512 bits
Tag Material PET
Antenna Material Aluminium
Inlay Size 63mm(L) x 43mm(W)
Applicable Surface Glass, Plastic, Wood, Cardboard
Attachment /Mounting Method Adhesive
