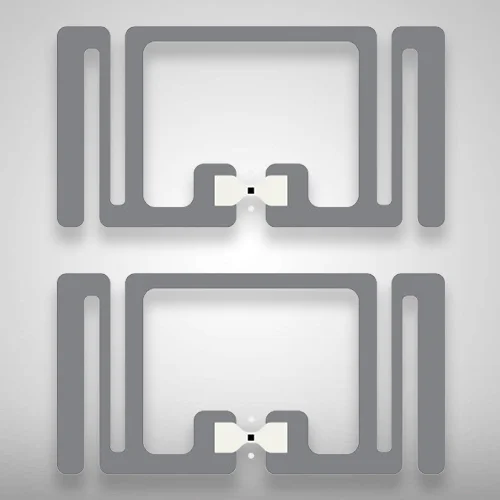

AD-173 U8 UHF RFID Inlay and Tag for Apparel Management

The AD-173 UHF RFID Inlay and Tag, powered by NXP UCode8, operate at 865-867MHz frequency, high-performance solution for tagging small apparel items, offer 27mm x 14 mm size and excellent read range.

Write a review
Features
Brand: AD Corp
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Chip Type: NXP UCode 8
EPC Memory: 128 bits
TID Memory: 96 bits
Enquire Now
Related Products
Smartrac AD-192 UHF RFID Tags and Inlays
M4 UHF RFID Dry Inlay
UHF RFID Dry Inlay And Labels
RFID Bib Tags for Race Timing System, Smartrac DogBone Tags
UHF Long Range RFID Dry Inlay Tag
Be the first to review this item
 Write a review
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Chip TypeNXP UCode 8
EPC Memory128 bits
TID Memory96 bits

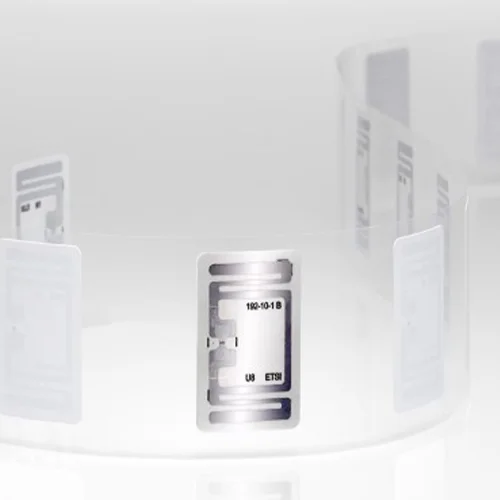

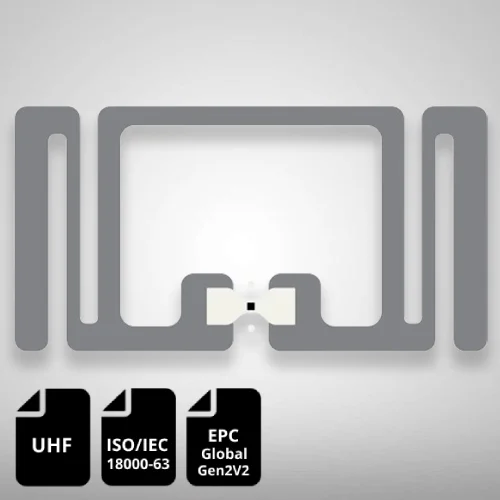

Tag MaterialWet Inlays/Paper Label/Polyester Label
Antenna Size27mm(L) x 14mm(W)
Die cut dimensions30mm(L) x 18mm(W)
Applicable SurfaceApparel, Sunglasses, Small Boxes
Attachment /Mounting MethodAdhesive
Operating Temperature-40°C to +85°C
