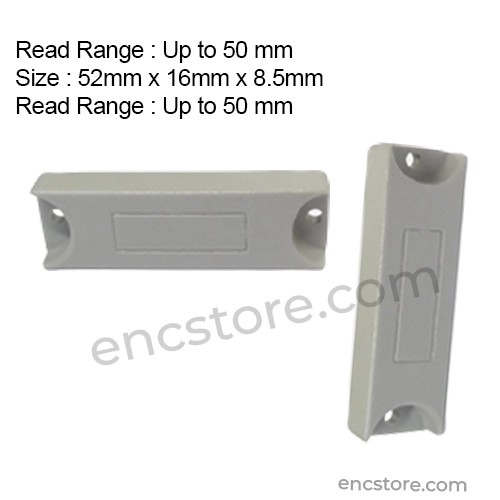

RFID Micro Metal tag, Frequency: 13.56 MHz, Applicable on Metal Surface, IP Rating 67, suitable for equipment tracking, tool tracking

Write a review
Features
Operationg Frequency: 13.56 MHz High Frequency (HF)
Air Interface Protocol: ISO/IEC 15693
Read Range: Up to 50 mm
Mounting: Riveting /screw/Adhesive
Dimension (Lx W x T): 52mm x 16mm x 8.5mm
Enquire Now
Be the first to review this item
 Write a review

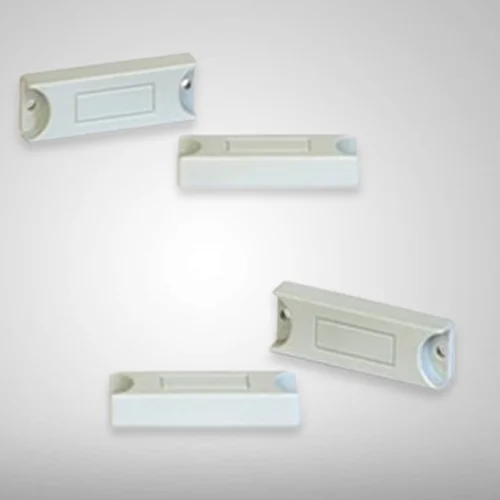

High-frequency RFID micro metal tags can be mounted on any metallic and plastic surface either with industrial adhesive which is supplied with the tag or using screws through the holes given in the tags. This metal tag is small in size and ideal for tracking IT assets and other valuable plastic and metallic goods.

Application: Asset Tracking, Tool Tracking, Logistics, Warehouse, Manufacturing, Container, Automotive, etc



Specifications
Operationg Frequency13.56 MHz High Frequency (HF)
Air Interface ProtocolISO/IEC 15693
Read RangeUp to 50 mm
MountingRiveting /screw/Adhesive
Dimension (Lx W x T)52mm x 16mm x 8.5mm
IP RatingIP67
MaterialPC
Operating temperature-40°C to +85°C
Applicable surfaceMetal
