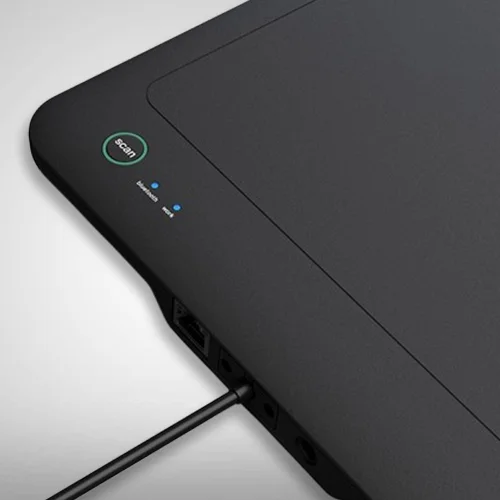

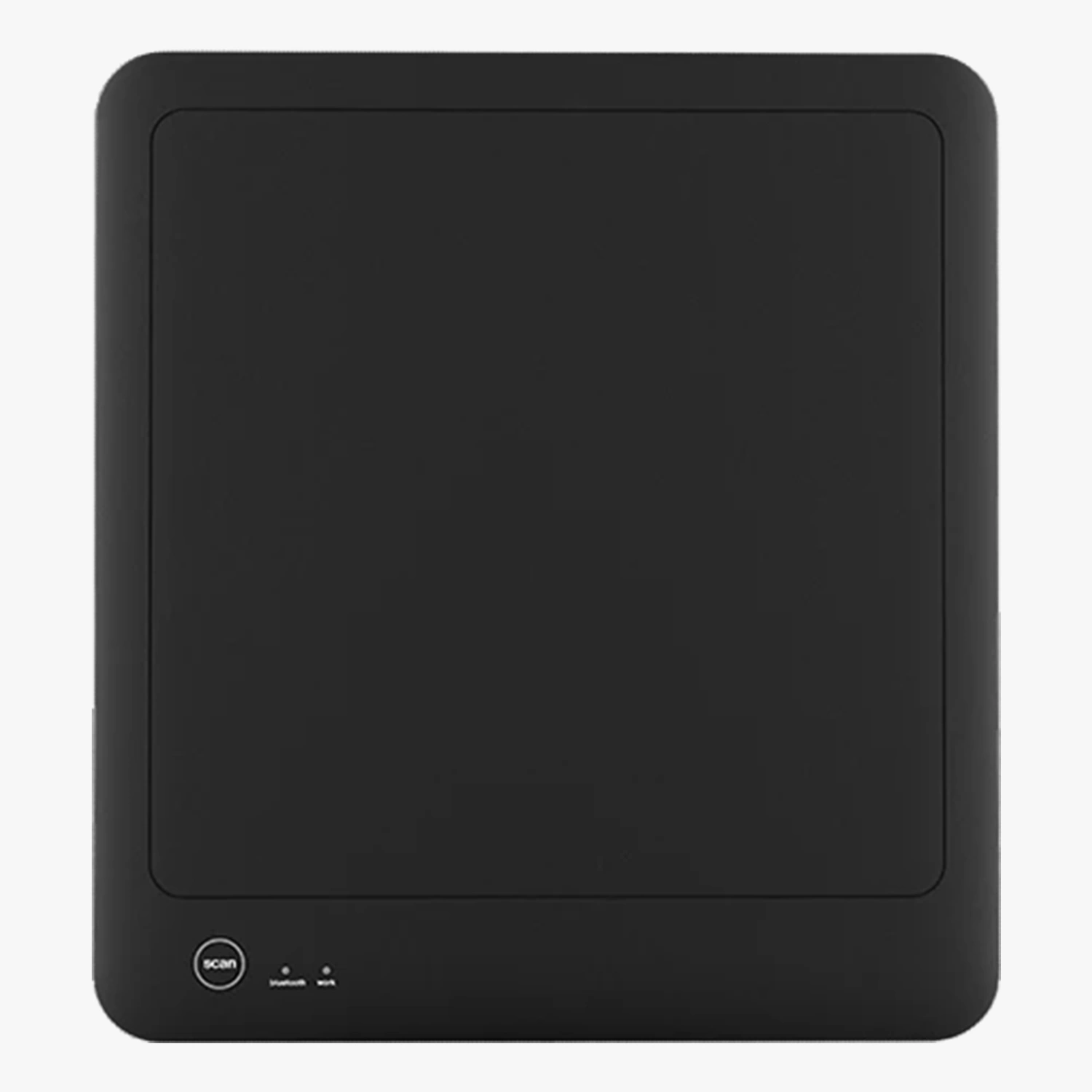

Chainway R3S Desktop RFID reader, all-in-one design, 1m+ read range, Type-C, Ethernet & Bluetooth 5.0 compatible with Windows, Android, and iOS, suitable for desktop use or kiosk integration in retail

Write a review
Features
Brand: Chainway
Operating Frequency: 865 - 867 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Dimensions: 255mm(L) × 235mm(W) × 18mm(D)
Material: PC
Power Supply: USB, DC, and RJ45 ports all support power supply
Enquire Now
Be the first to review this item
 Write a review

Get the latest desktop RFID Reader by Chainway, the R3S RFID Reader, designed with a compact all-in-one form factor. The R3S Desktop Reader offers 100 cm+ read range and 70+ tags per second scans at one go.

The desktop RFID reader is engineered with Impinj E Series Chipset and supports Impinj Gen2X capabilities. As an RFID Reader, the R3S desktop reader complies with EPC global Class 1 Gen 2 / ISO 18000-63 RFID standards and can read 250+ tags per second max.

With connectivity options like Type-C USB, Ethernet, and Bluetooth 5.0, it makes data sharing with other devices quite easy. The R3S is engineered with a robust casing and offers IP54 sealing against dust and water ingress, so that it can function well indoors and outdoors as well.

EnCstore, as a leading supplier of the latest Chainway RFID and Barcoding solutions, offers the R3S Desktop reader at industry-best prices, delivering Pan-India.

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolEPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Dimensions255mm(L) × 235mm(W) × 18mm(D)
MaterialPC
Power SupplyUSB, DC, and RJ45 ports all support power supply
BluetoothBLE 5.0
USB Type CUSB 2.0 with a transmission rate of 12Mbit/s
Impinj Gen2XSupported
AntennaNear-Field Antenna
Output Power1-30, step 1dB
Fastest Read Rate250+ tags/sec
Multi-tag InventorySupports reading 70+ RFID tags at once (5 seconds)
Max Read Range>100cm (tag: Impinj M750 tag)
Operating Temperature-20°C to +50°C
Storage Temperature-40°C to +70°C
IP RatingIP54
