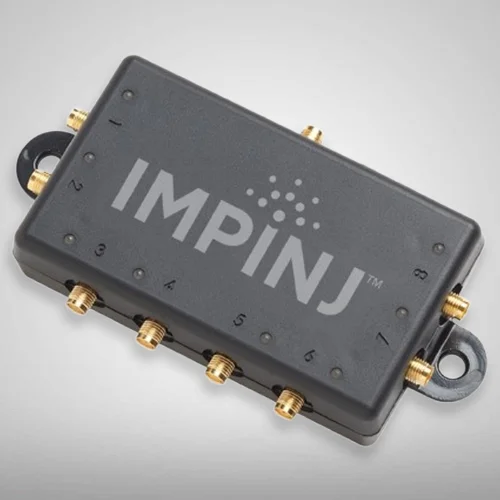

Impinj Speedway Antenna Hub

Frequency: 865–867 MHz, 34dBm Max input power, About 25 ms Device Switching Speed, IP Rating 52

Write a review
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Dimensions: 102mm x 61mm x 24 mm
Power Supply: 5V provided by the GPIO Adapter
Power Consumption: 25mA (80mW) max
Connectors: RF Input: SMA Female; 8 RF Outputs: SMA Female; 1 Digital I/O: RJ45
Enquire Now
Related Products
6 meter RFID Reader Console Cable
EZ-M-6 Mounting Bracket for 10x10 Inch RFID Antenna
A1130 Antenna Mounting Plate
Protective Case Rugged Boot for Zebra TC22/TC27
Docking Cradle for 1128 UHF RFID Reader
Be the first to review this item
 Write a review

This RFID Impinj Speedway Antenna Hub provides a low cost opportunity to create a large, contiguous RFID read zone  by enabling from 5 to 32 antennas to be attached to a single UHF Gen 2 RFID Reader/Writer with 4 Antenna Ports. This Antenna Hub is ideal for applications such as RFID smart shelves or document tracking applications. Provide quick and easy installation, with included antenna virtualization software, GPIO Adapter Kit and system feedback including LED status indicators and software providing diagnostics and alerts.

Specifications
Operating Frequency865–867 MHz Ultra High Frequency(UHF)
Dimensions102mm x 61mm x 24 mm
Power Supply5V provided by the GPIO Adapter
Power Consumption25mA (80mW) max
ConnectorsRF Input: SMA Female; 8 RF Outputs: SMA Female; 1 Digital I/O: RJ45
Mounting OptionsTwo 1/4 in mounting holes
Max Input Power34 dBm
Insertion Loss1.3 dB (Max)
Isolation36 dB (Min)
Return Loss24 dBm (Min)
Device Switching SpeedAbout 25 ms
Operating Temperature-40 °C to 80 °C
IP RatingIP52
