Ultra High Frequency(865–867 MHz), 2dBi circular polarized antenna, USB Interface, suitable for club management, attendance management

Write a review
Features
Operationg Frequency: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Antenna: Built-in 2dBi circular polarized antenna
Power Supply: DC 5V (±4%)
Interface: USB
Enquire Now
Be the first to review this item
 Write a review

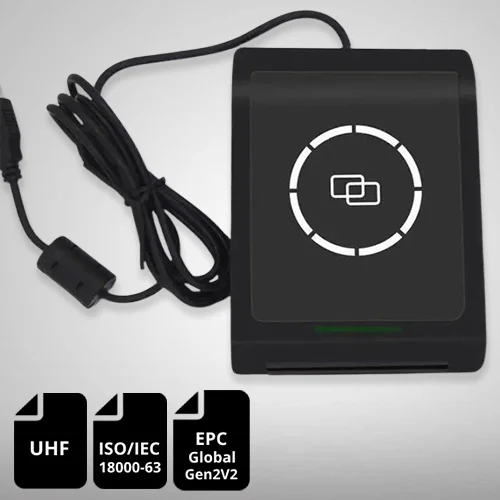

UHF USB Desktop Reader Writer supports ISO 18000-6C EPC Class 1 Gen 2, Ultra High Frequency(UHF) 865–867 MHz. The RFID card issuer connects to the computer without installing drivers, using an advanced plug-and-play interface through a USB connection with the PC and related equipment. It is small, portable, has Fast data reading, and is widely used for indoor desk operations.

Application

• Logistics and Warehouse management,

• Personal identification,

• Employee identification,

• Time and attendance

Specifications
Operationg Frequency865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
AntennaBuilt-in 2dBi circular polarized antenna
Power SupplyDC 5V (±4%)
InterfaceUSB
Dimensions108.5mm x 108.5mm x 24mm
Working current50~300 mA
Read range1-50cm (related to the card or the environment)
Operating SystemWindows, Android, Linux
DisplayTwo LED indicators (Blue means standby, Green means read successfully)
Operating Temperature-10°C ~ +50°C
Storage Temperature-20°C ~ +80°C
USB Cable Length1.5 Meters
