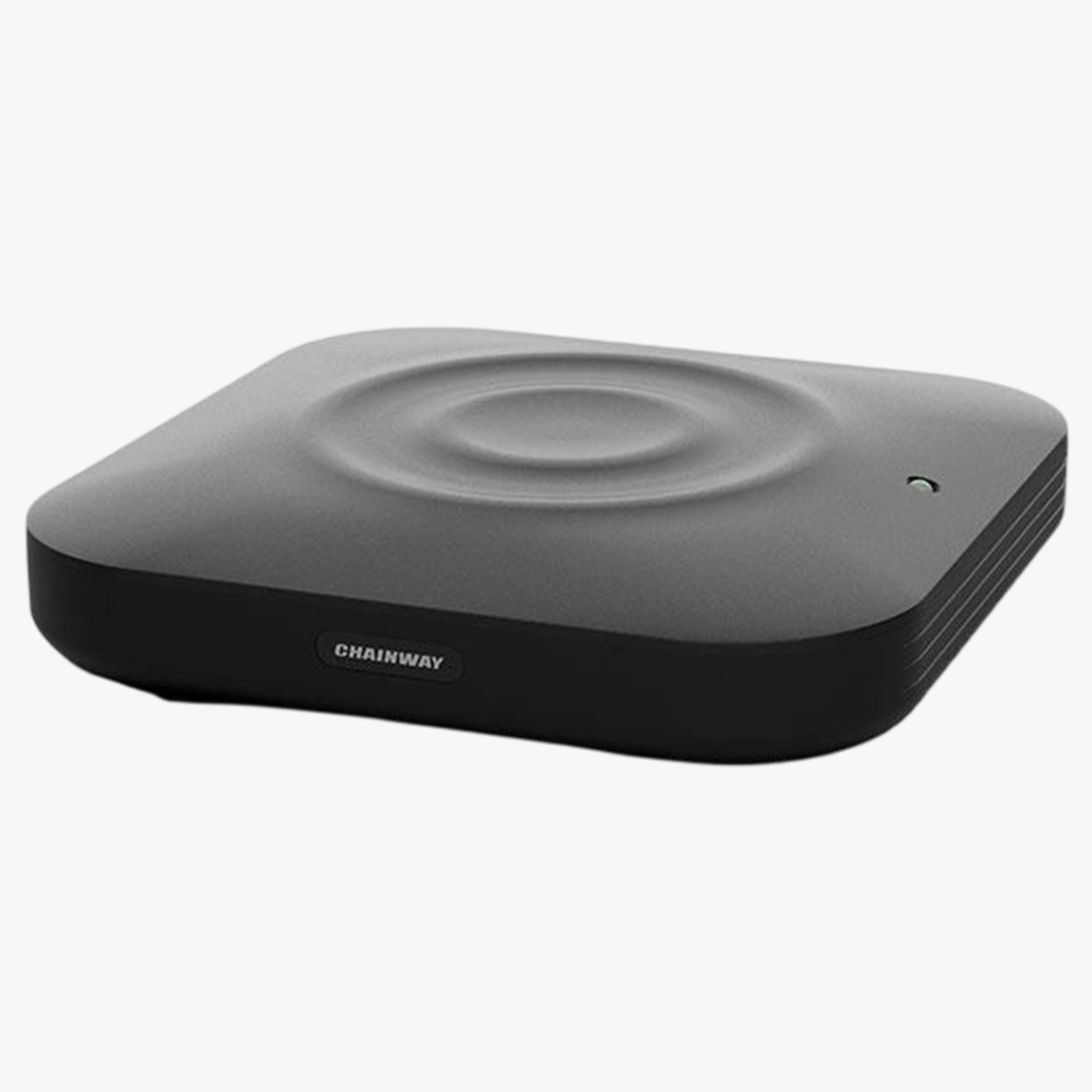

R1 Dual Frequency UHF & HF RFID Reader/Writer

Excellent HF&UHF Performance, USB Type-C Interfaces, 2w Power in HF, 5W Power in UHF, Circular Polarized Antenna, upto 15cm read range (UHF), upto 5cm read range (HF), for logistics, access control

0 reviews

Write a review

Operating Frequency:	865 - 868 MHz, 13.56 MHz
Communication Protocol:	EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63), ISO/IEC 14443A
Max Read Range:	Up to 15cm (UHF), Up to 5cm (HF),
Data Interface:	USB Type-C
Input Voltage:	DC3.5-5.25V

Be the first to review this item

Write a review

R1 Dual Frequency UHF & HF RFID Reader/Writer is a dual-frequency RFID reader that can read and write both UHF (Ultra High Frequency) and HF (High Frequency) tags. It has a wide range of applications including asset tracking, inventory management, data collection, and authentication. It is also capable of integrated authentication, where a single tag can be used for both UHF and HF operations. The R1 Reader/Writer is designed to be compatible with a variety of RFID tags and readers, and it is capable of both long-range and short-range reading depending on the tag type. It is also equipped with a variety of security features and encryption protocols to ensure the safety of your data. Application: Warehouse and Asset Tracking, Retail Inventory Management, Access Control, Logistics, Healthcare, Manufacturing, and Supply Chain Management.
Specifications
Operating Frequency	865 - 868 MHz, 13.56 MHz
Communication Protocol	EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63), ISO/IEC 14443A
Max Read Range	Up to 15cm (UHF), Up to 5cm (HF),
Data Interface	USB Type-C
Input Voltage	DC3.5-5.25V
Notification	LED indicator, buzzer
Output Power	+5 dBm to +25 dBm adjustable Accuracy:+/-1dB
Antenna	Circular Polarized Antenna
Dimension	117mm(L) x 117mm(W) x 25mm(D)
Mounting	Wall Mount
Weight	170g
Operating Temperature	-25°C to +65°C
Storage Temperature	-40°C to +85°C
