Light weight Passive RFID Pallet Tag, Frequency: 865–867 MHz, Size: 100mm x 22mm , for Asset Tracking, Tool Tracking, Industrial Application

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 10m
Chip Type: Alien Higgs 3
EPC Memory: 96 bits
Be the first to review this item
 Write a review

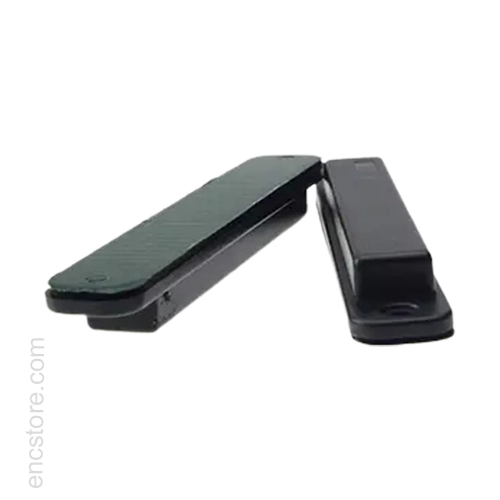

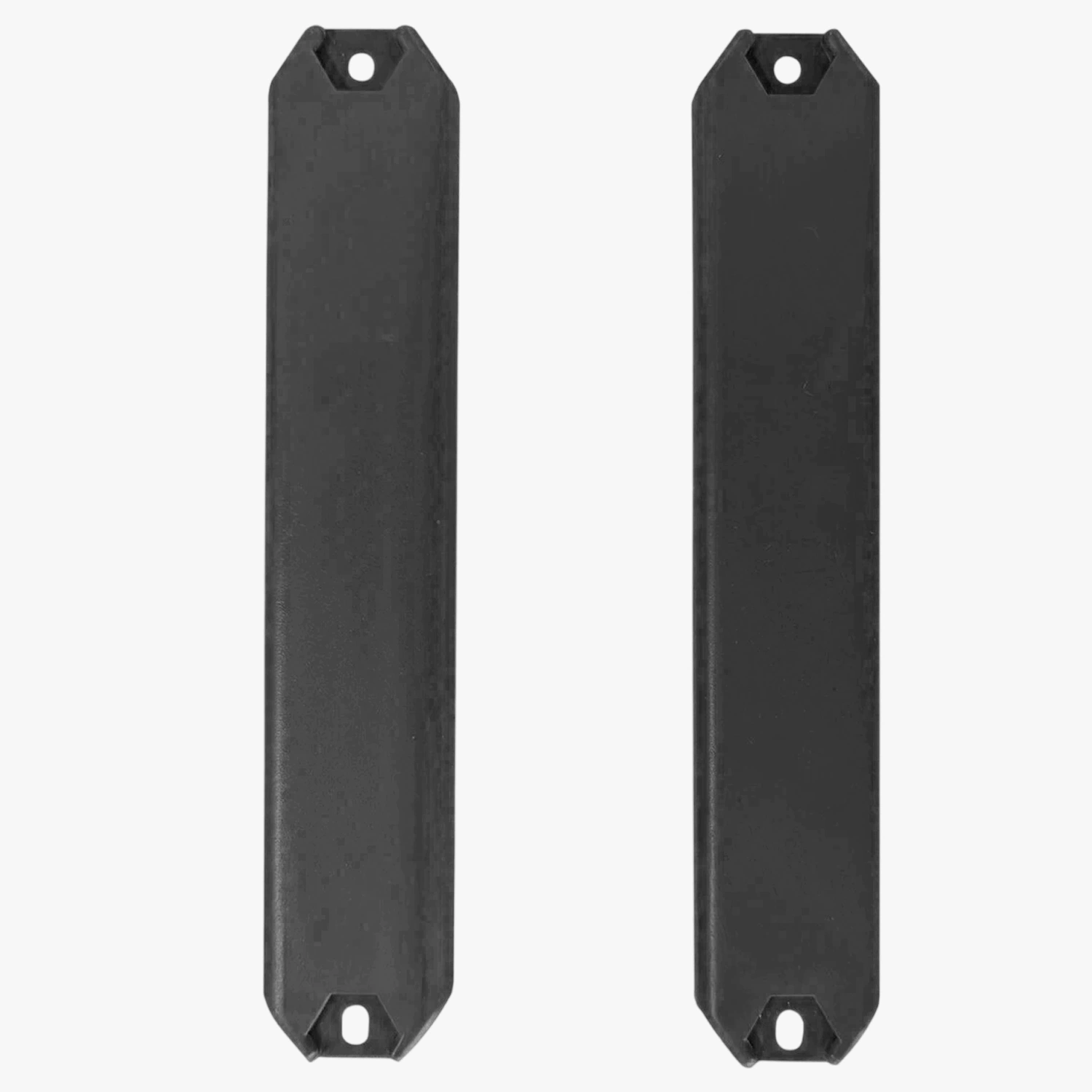

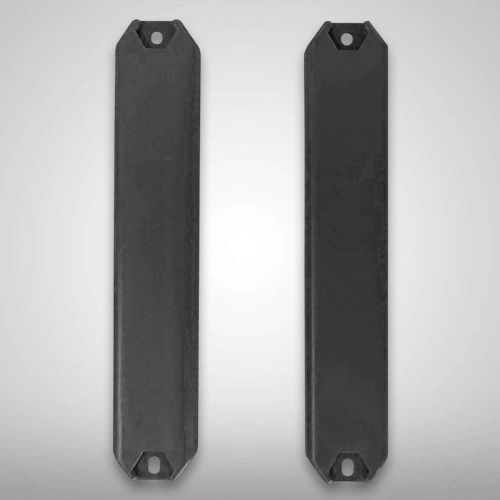

Black UHF RFID Pallet Tags are a type of RFID tag specifically designed to be used on pallets and other large and bulky items. They are usually made of a durable, water-resistant material such as ABS plastic and contain an embedded UHF RFID chip. The pallet RFID tag operates on ultra-high frequency provides a long read range of up to 10 m and is specially designed for pallet tracking. It performs extremely well in the field of reading and writing on non-metal items and also suits any RFID application – even on-metal. These are highly durable tags made with high-quality materials and adhesive for easy application, re-usability, and durability.

Application

• Pallet identification & Tracking,

• Non-Metallic Asset Tracking,

• Logistics and Warehouse Management,

• Plant and Machinery, Trolley Tracking,

• Wooden and plastic asset tracking

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 10m
Chip TypeAlien Higgs 3
EPC Memory96 bits
User Memory512 bits
Write Cycle Endurance100,000 cycles
Data Retention50 Years
Tag MaterialABS

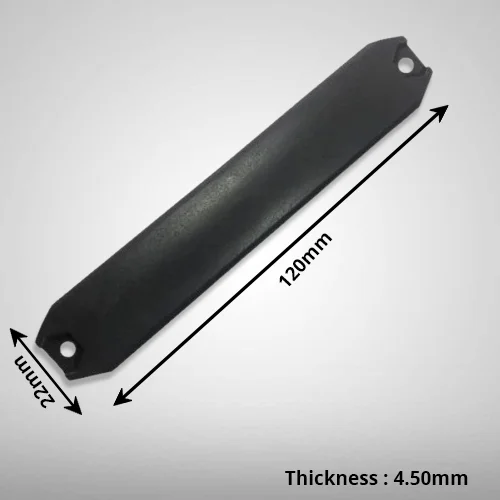

Tag Size120mm(L) x 22mm(W) x 4.50mm(T)
Applicable SurfacePlastic, Wood, or Metal
Attachment /Mounting MethodAdhesive or Screw
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
IP RatingsIP67

No file found !

FAQs

Which industries commonly use RFID pallet tags?

Warehousing, logistics, manufacturing, retail distribution, automotive, FMCG, and supply chain operations commonly use RFID pallet tags for asset visibility and inventory control.
