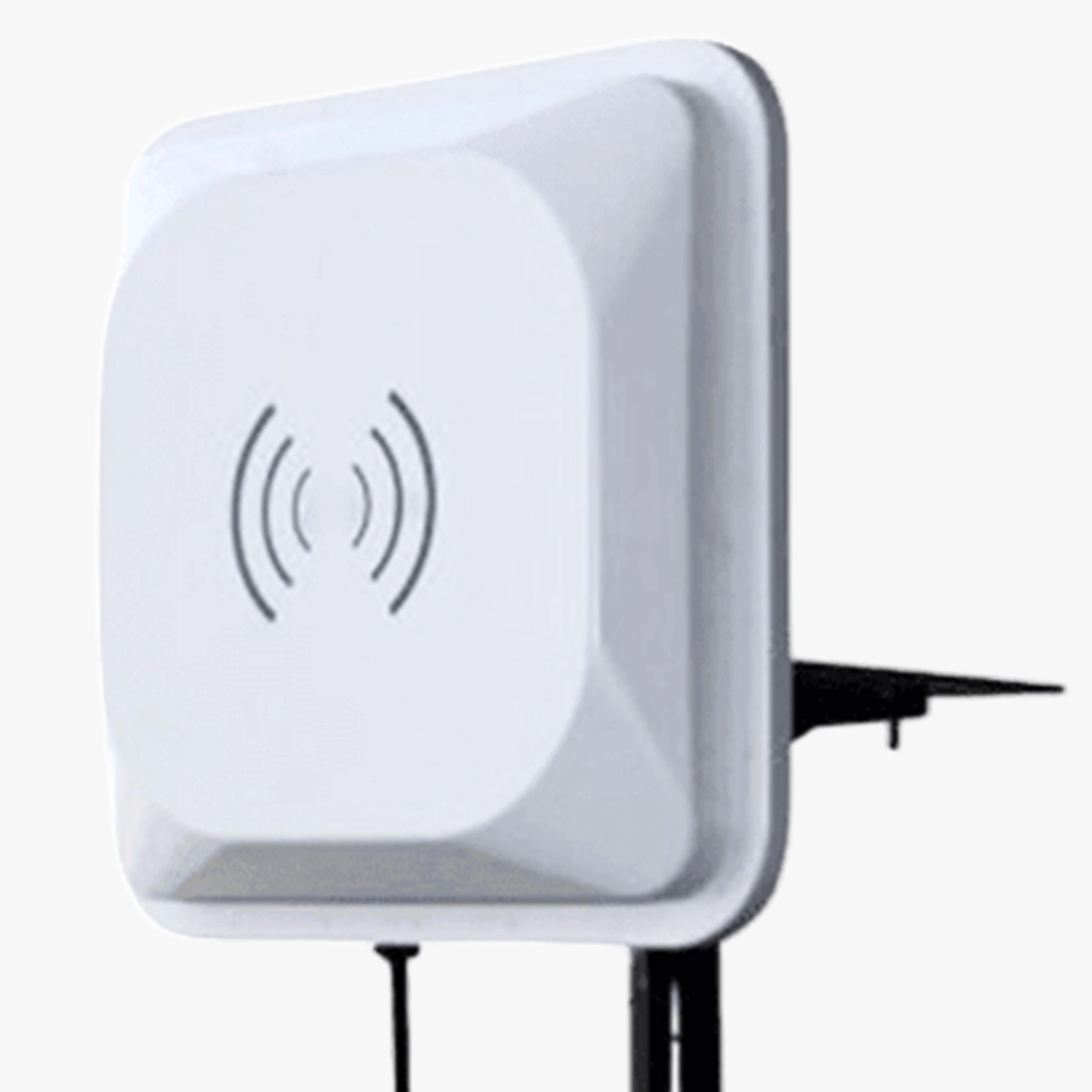

7dBi Integrated Reader, Pole Mountable UHF RFID Reader

Ultra High Frequency, 865–867 MHz, Maximum Transmit Power: 30 dBm, Circular Polarization Antenna, suitable for applications in asset tracking, inventory management

Write a review
Features
Operationg Frequency: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Maximum Transmit Power: 9 ~ 30 dBm
Read Range: Up to 12 m
Write Range: Up to 6m
Enquire Now
Related Products
Chainway UR1A Integrated UHF RFID Reader
8dBi Integrated UHF RFID Reader
Mid range upto 6mtrs Integrated UHF RFID Reader
Long Distance UHF Integrated RFID Reader
Mid Read Range Upto 10Mtrs Integrated UHF RFID Reader
Be the first to review this item
 Write a review

7dBi Integrated Reader has a sleek design and is easy to install, they are Linux based, combining reliable reading with ease of programming and communication. It delivers excellent performance at incredible value. This integrated circular polarized antenna are comes with a read range up to 12 meters and write range upto 6 meters (tag and environment dependent).

Application: Asset tracking, Inventory management, Parking and Vehicle Management, Warehouse logistic management etc

Specifications
Operationg Frequency865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
Maximum Transmit Power9 ~ 30 dBm
Read RangeUp to 12 m
Write RangeUp to 6m
PolarizationCircular
Gain7 dBi
ConnectorRP-TNC Male
Dimensions (H x W x D)290mm × 290mm × 86 mm
Antenna PortsOne Integrated Antenna with One External Antenna Port
Case MaterialMetal, High Temperature Material
Power AdapterAC input 100-240 (50/60Hz) DC output 24V/2.5A
Operating Temperature Operating Temperature-20°C ~ 70°C ( -4°F ~ 158°F )
Ingress ProtectionIP 65 - Dust and Waterproof
