TSL 2128 Bluetooth UHF Sled RFID Reader

Right hand circularly polarized, Up to 6m read range, 865-868Mhz Frequency, High-performance UHF RFID scanner, IP Rating-54, USB, Bluetooth Data, Android, iOS, Windows OS Interface,

Write a review

Brand:	TSL
Operating Frequency:	865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol:	ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type:	Right hand circularly polarized
User input:	Trigger button
Power Source:	Removable, rechargeable 3.7volt 2300 mAhLithium Polymer pack, 8.6 Watt hrs

Be the first to review this item

Write a review

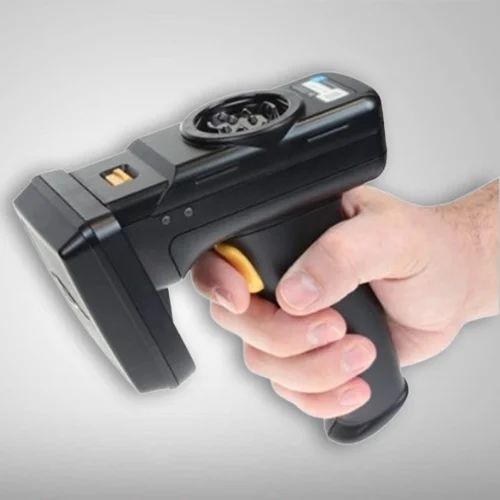

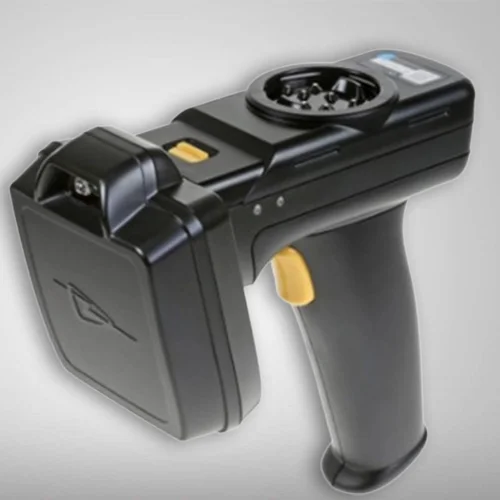

The 2128 Bluetooth UHF RFID Handheld/Sled Reader is a reliable long-range RFID reader designed for the professional market. It features an extended read range of up to 6 meters, is fully certified for ISO18000-6C and EPC C1 Gen 2 standards, and supports multiple protocols. The device is capable of capturing both UHF and HF tags simultaneously, and its durable sled design makes it ideal for both indoor and outdoor applications. The integrated 4-inch color touchscreen provides users with an intuitive reading experience, and it also supports Bluetooth connectivity for quick pairing and data transfers. Additionally, 2128 features an ergonomic design for long-term comfort and three status LED indicators to provide multiple levels of device feedback.
Specifications
Operating Frequency	865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol	ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type	Right hand circularly polarized
User input	Trigger button
Power Source	Removable, rechargeable 3.7volt 2300 mAhLithium Polymer pack, 8.6 Watt hrs
Dimension	160mm(L) x 77mm(W) x 175mm(D)
User feedback	Speaker, vibrationmotor, LED
Sensor Resolution	752x480pixels
Field of View	Horizontal:40°,Vertical:25°.
Maximum Output Power	33 dBm EIRP
Read Range	Up to 6mtrs
Operating Temperature	-10° to +40°C
IP Rating	IP54
Scanner	Imager
