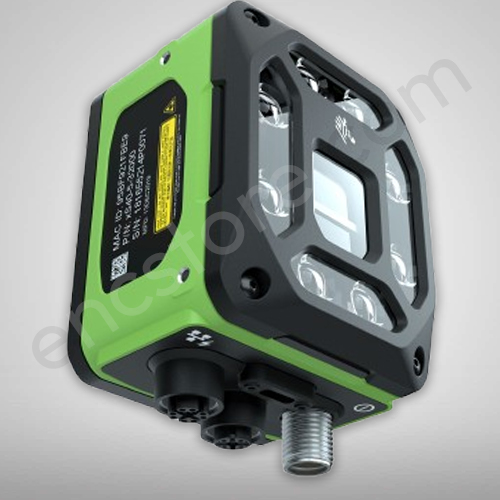

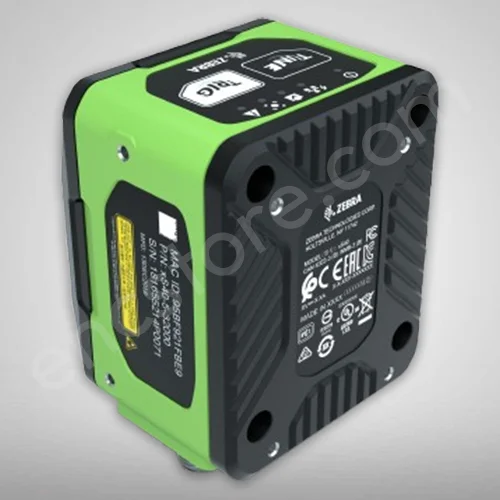

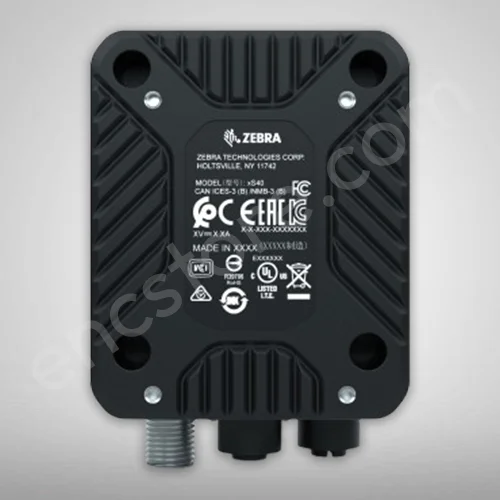

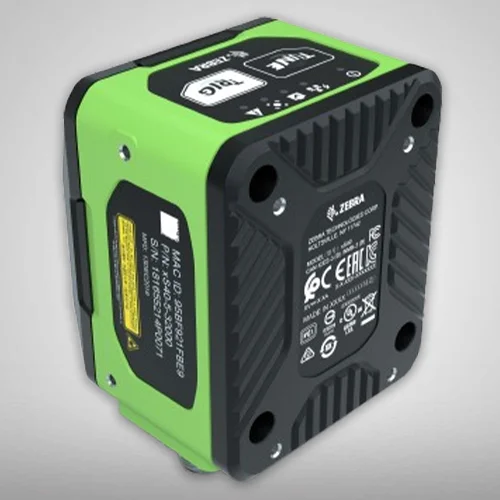

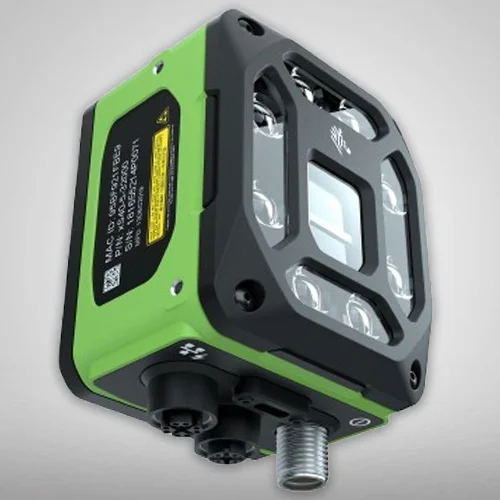

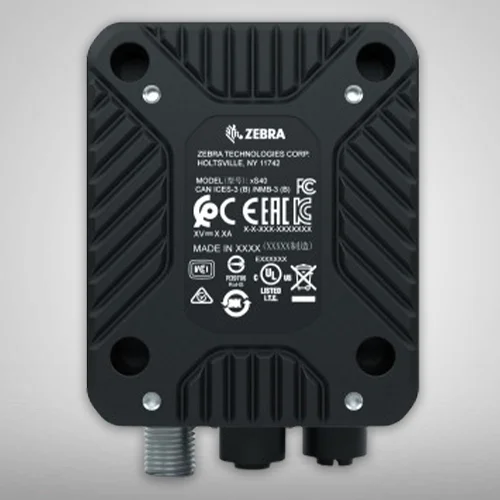

Zebra VS40 Machine Vision Smart Camera

The Zebra VS40 machine vision camera with 2.3MP/5.1MP sensors, compact industrial grade design and IP65 rating, LEDs and beeper, Aurora focus, ImagePerfect+, object locate, pattern matching, etc.

By Ruddersoft i
Write a review
Features
Brand: Zebra
Dimensions: 54mm(H) x 64mm(W) x 91.4mm(D)
Weight: 400g
Power: 10 to 30 VDC external power supply, 36W max at 24V Class 4 PoE+ source, 25.5W max Class 3 PoE source, 13W max USB Type-C host, 7.5W max at 5V, 1.5A or 15W max at 5V, 3.0A
Configurable IO: (4) Four opto-isolated GPIO: GPIO0,1,2,3, (5) Five non-isolated GPIO: GPIO4,5,6*,7*,8*
Color and Material: Industrial green aluminum housing
Enquire Now
Related Products
Zebra FS42 Fixed Industrial Scanner
Zebra GS20 Connectivity Gateway

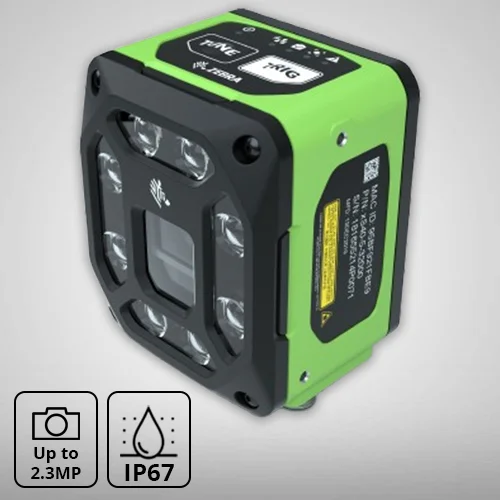

Zebra FS40 Fixed Industrial Scanner
Zebra FS20 Fixed Industrial Scanner
Zebra FS80 Fixed Industrial Scanner
Be the first to review this item
 Write a review

Explore the VS40 machine vision camera sensor by Zebra Technologies, designed to bring enhanced imaging, lighting, and expandability packed into a flexible smart camera platform. The Zebra VS40 camera sensors are suitable for medium-complexity inspections, item damage detection, sorting, etc.

Similar to Zebra VS20, the VS0 also comes with M12 connectors, IP65 rating against ingress, and Aurora software with ImagePerfect+, Feasibility Assistant, QuickDraw, object locate, and pattern matching software features.

EnCstore offers not just Zebra VS40 but VS20, VS70, and FS20, FS40, FS80, etc. at industry-best prices, delivering pan-India.



Key Features of Zebra VS40 Machine Vision Smart Camera

• 2.3?MP global-shutter or 5.1?MP rolling-shutter as image sensors

• Integratedring illuminators in red, white, blue, IR, or a multi-color ring

• Dual Ethernet (PoE/PoE+), USB-C, serial, supports Ethernet/IP, PROFINET, Modbus TCP, RS-232 interfaces

• Rugged IP65/IP67 aluminum housing, M12 connectors

• Up to nine programmable I/Os, 360° LEDs, and an audible beeper

• Aurora software with ImagePerfect+, Feasibility Assistant, QuickDraw, object locate, and pattern matching



What are the Applications of the Zebra VS40 Machine Vision Smart Camera?

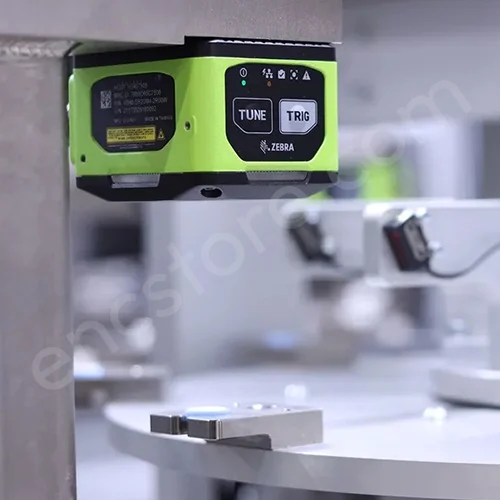

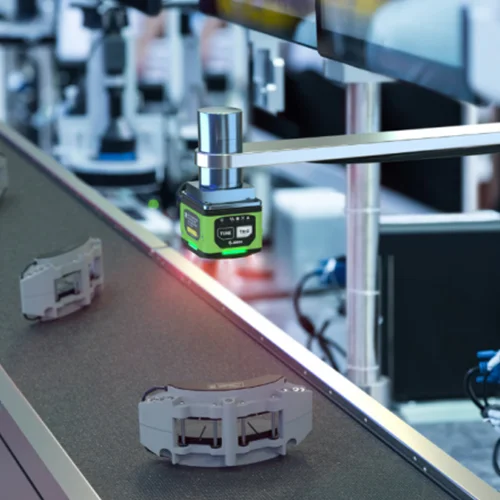

• Assembly verification in Manufacturing

• Label code scanning

• OCR tasks

• Packaging checks in automotive, electronics, and pharma

Where can I buy the Zebra VS40 Machine Vision Smart Camera in India?

You can buy the VS40 Machine Vision Smart Camera in India from EnCstore.com, where we offer a complete range of Zebra’s industrial scanners, RFID readers, antennas, and mobile computers.

EnCstore delivers Zebra VS-series Machine Vision Solutions India, complete with:

• Full Zebra Aurora Focus ecosystem for setup, licensing, and dashboard control

• Scalable licensing (OCR, DPM, MV toolsets) to future-proof installations

• Factory-backed warranty (1–2?years per model) and Zebra OneCare™ support



Related Products: Zebra VS20 Machine Vision Smart Sensor, Zebra FS40 Fixed Scanner, Zebra FS80 Fixed Scanner

Specifications
Dimensions 54mm(H) x 64mm(W) x 91.4mm(D)
Weight 400g
Power 10 to 30 VDC external power supply, 36W max at 24V Class 4 PoE+ source, 25.5W max Class 3 PoE source, 13W max USB Type-C host, 7.5W max at 5V, 1.5A or 15W max at 5V, 3.0A
Configurable IO (4) Four opto-isolated GPIO: GPIO0,1,2,3, (5) Five non-isolated GPIO: GPIO4,5,6*,7*,8*
Color and Material Industrial green aluminum housing
Interface Ports (1) M12 X-Coded 1000/100/10 Mbps Ethernet*, (1) M12 12-pin Power/GPIO/RS-232, (1) M12 5-pin External Light Power and Control/ GPIO, (1) USB 3.0 SuperSpeed Type-C with DisplayPort Alt Mode, *Available
Communication Protocols Ethernet/IP, PROFINET, CC-Link, Modbus TCP, TCP/IP, RS-232
Image Sensor Monochrome: 2.3 MP (1920 x 1200 pixels) CMOS Sensor with Global Shutter and 3.0 um Pixel Size
Acquisition Rate Up to 60 frames/second
Operating Temperature 0° C to 45° C
Storage Temperature 0° C to 40° C
