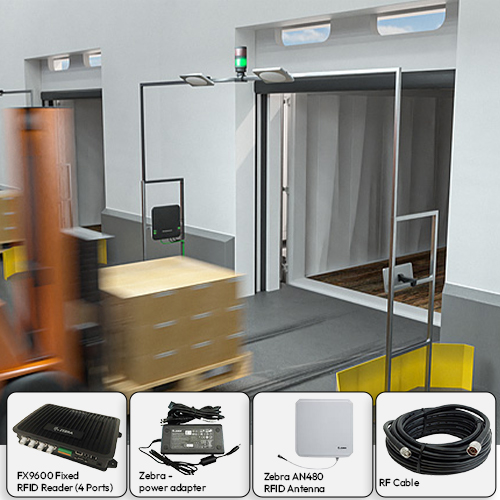

Get highly efficient RFID gate system which comprises of an FX9600 RFID Fixed Reader, a Zebra AN480 RFID Antenna, an RF Cable and a Power Adopter.
Our Zebra RFID gate system is designed to offer enhanced RFID capabilities, high performance and efficient tracking of RFID tagged assets in retail, healthcare, IT industry, supply chain and manufacturing, etc. It can be easily deployed at dock doors, entry and exits points in logistics and transportation, and retail store exits. In IT firms, it is deployed to keep tabs on IT asset movement, ensuring asset and data safety.

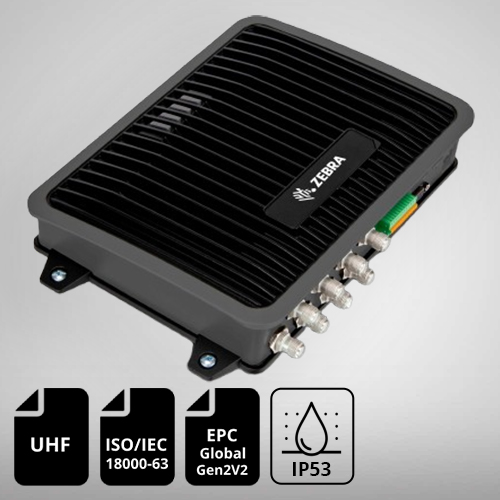

The FX9600 RFID Reader used with this gate system is a fixed RFID reader by Zebra Technologies and comes in 4 antenna port and 8 antenna port configurations. The reader is designed with an aluminium die cast metal body and offers IP53 rating for water and dust ingress. The FX9600 is a powerful reader that offers long read range and high read rate of 1200 tags per second. It comes with -86dBm max. receive sensitivity for enhanced read accuracy.

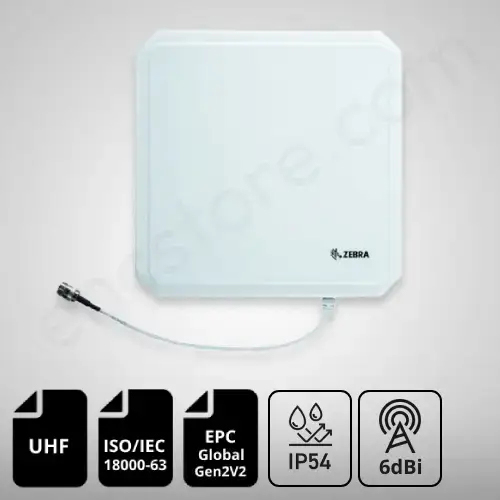

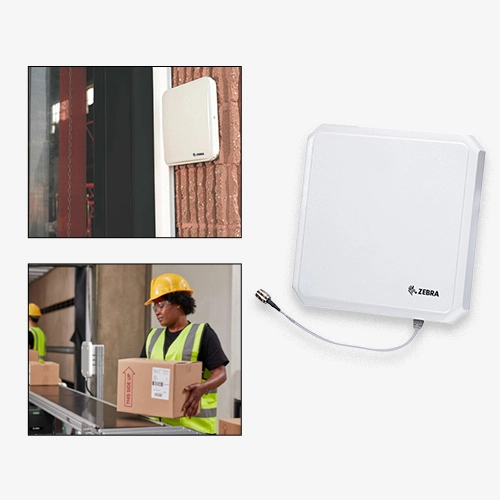

Our RFID gate system also comes with a Zebra AN480 RFID Antenna that works on UHF 865-857 MHz frequency range, offering 6dBi gain with circular polarization. Its powerful design assures long-term performance, even under challenging conditions. The AN480 offers a compact and sleek design and has an N-type female connector with a rear connection.

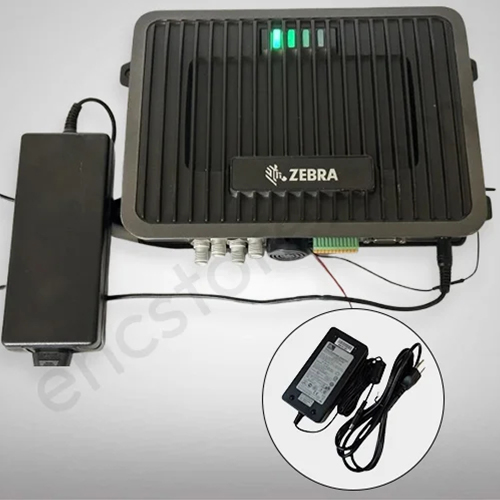

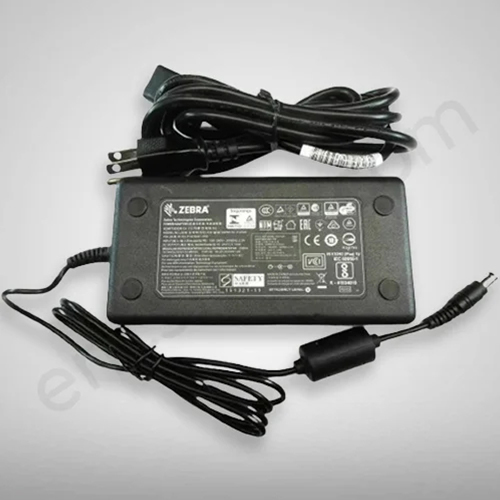

You also get a power adopter and an RF cable included with this system and more antennas and cables can be added as per need. The Zebra power supply adapter (PWR-BGA24V78W1WW) is equipped with fast charging technology, 24V Output Voltage, and 78W Output Power, featuring a compact design and is compatible with FX7500, FX9600, and ATR7000 RFID Readers.

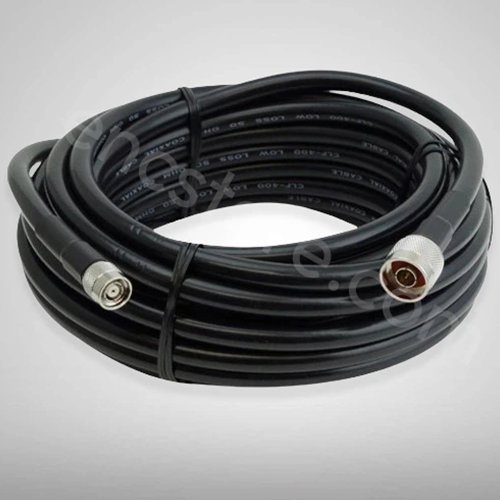

The RF cable is designed for connecting the Zebra FX9600 reader with Zebra antennas and provides reliable and low-loss RF communication in various environments. It varies in length and comes with RP-TNC connector on one end to connect with Zebra readers and N-type female connector on another end to connect with AN480 Antenna.
Applications of Zebra RFID Gate System
• Warehouse and inventory management
• Supply chain and manufacturing
• Retail sector
• Healthcare
• Access control and security |
