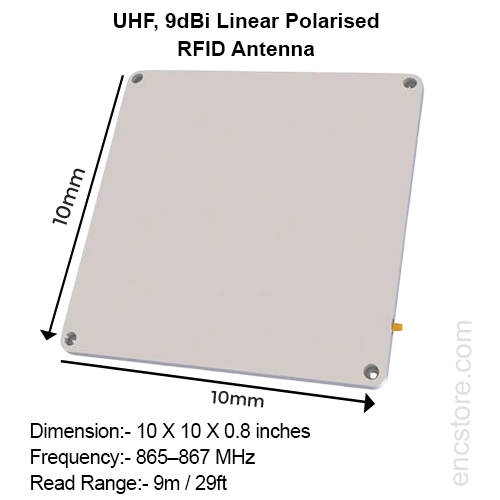

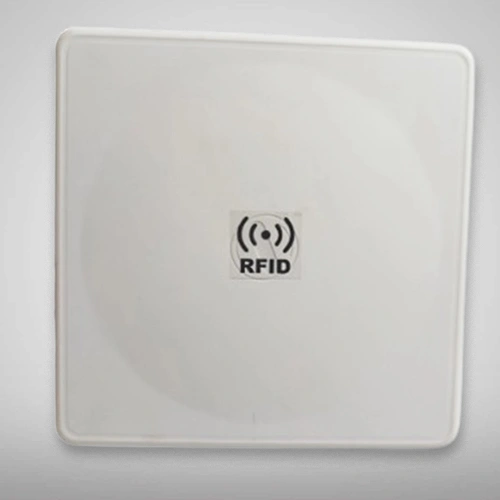

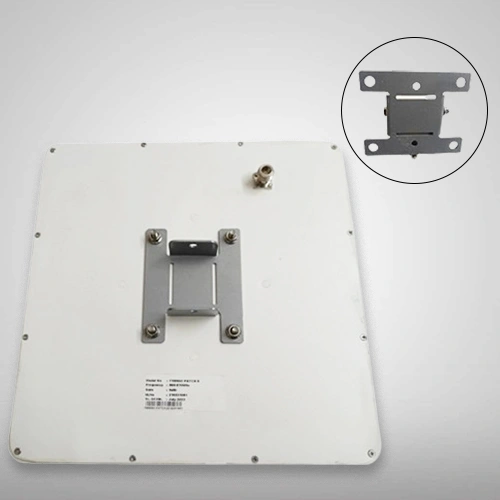

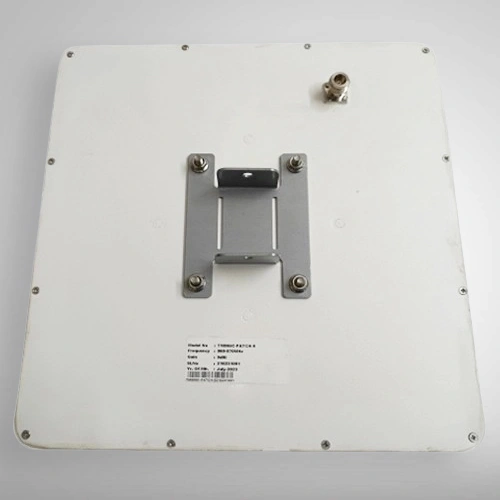

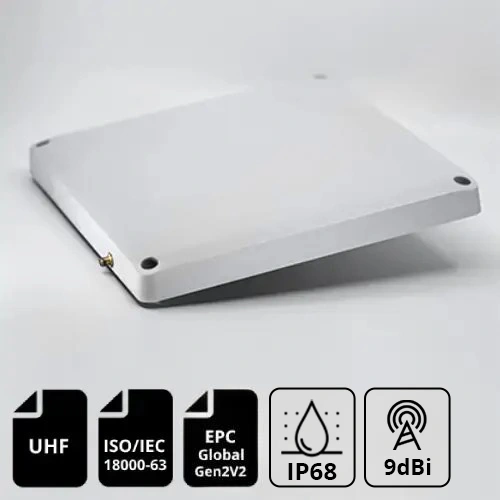

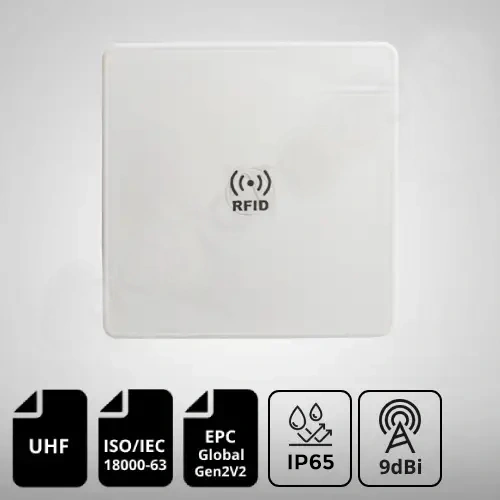

9dBi Linear Polarized UHF RFID Antenna with Mounting Bracket

The 9dBi Linear Polarized RFID antenna is a high-performance RFID Antenna with a Mounting Bracket works on UHF 865-867 MHz Frequency, offering long-range communication between RFID tags and Readers.

Check Availability
Write a review
Features
Operating Frequency: 860-870 MHz, Ultra High Frequency
Polarization: LP (Linear Polarized)
Model: UHF/T9NL
Gain: 9 dBic
Connector Type: N Connector
Enquire Now
Be the first to review this item
 Write a review

We offer a 9dBi Linear Polarized UHF RFID Antenna that is designed for long-range communication between UHF RFID tags and Readers. These RFID antennas operate in the UHF frequency range of 860-960 MHz specifically tailored for high-performance logistics and supply chain operations.

Our linear polarized RFID antenna offers a linear gain of 9dBi, resulting in a long read range and accurate tag detection when properly aligned with the RFID reader. These are available with Flush and Vesa Mount options and N connectors for easy installation and quick setup. The antenna is compactly packed and features a polycarbonate covering with plenum ratings, providing fire resistance.

These UHF antennas, with a long read range of up to 9m are best suitable for industrial and commercial operations, performing well even in harsh outdoor environments with its IP65 rating. These linear polarization antennas are compatible with most RFID tags and readers. It offers convenience, reliability, and better performance for RFID tracking and identification systems.

We offer a selection of long-range UHF antennas from reputable manufacturers in India as well as renowned international brands, all at competitive prices. Contact us for a quotation regarding the prices of our long-range, high-gain UHF linear polarized antennas in India.

Applications of Linear Polarized UHF RFID Antenna

 • Toll plaza automation

• Hospital access control and security

• Retail Automation and inventory management

Specifications
Operating Frequency 860-870 MHz, Ultra High Frequency
Polarization LP (Linear Polarized)
Model UHF/T9NL
Gain 9 dBic
Connector Type N Connector
Dimension(mm) 300 X 300 X 10
VSWR(Max) 1.5:1
AxialRatio(dB) 2(Max)
Max.PowerInput(Watts) 50
Impedance 50 ohm
Front to Back Ratio(dB) >20
Lightning Protection DCGrounded
Gross Weight(Kg) 1.5
Radome UV Stabilized ABS
Mounting Hardware MS Galvanized & Powder Coated
Mounting Style Wall/Pole
Water Proofing IP65
Operating Temprature -40° to +70°C
